16 Door Edge PACS
System Overview
16 Door Edge Physical Access Control System
How to Quote
To learn about what to consider and how to quote an Access Control system, please visit:
Access Control - System Takeover
System Use

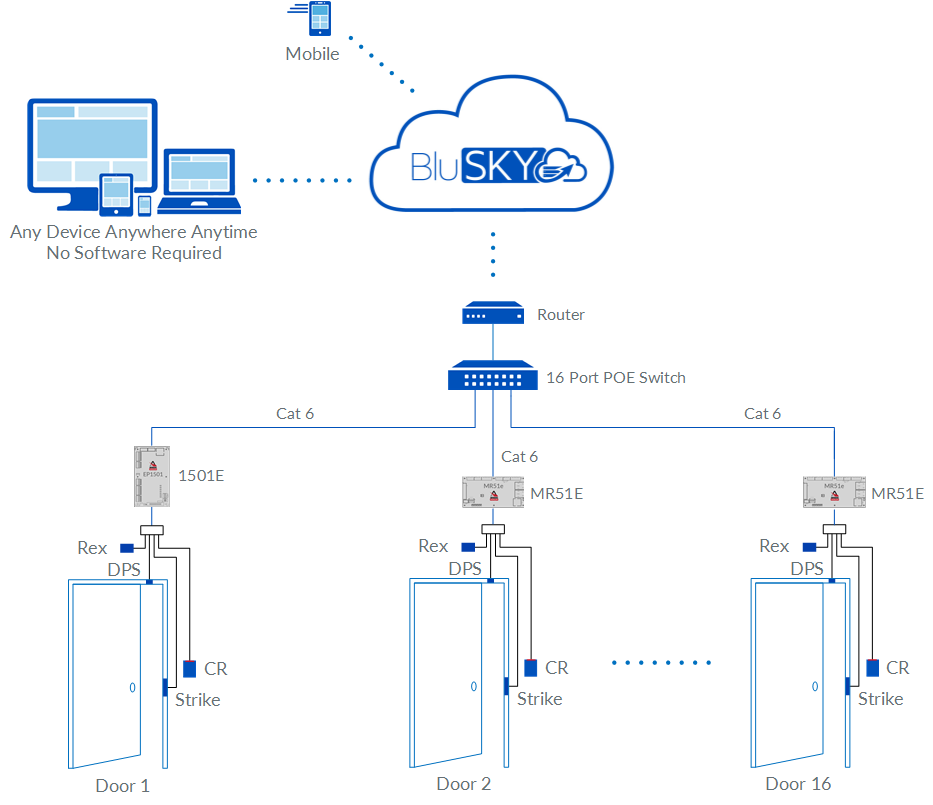

One Line System Diagram
BluBØX Equipment, Software and Professional Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 751-2000 | 1501E-2R/6I/4O | Edge Solution - Two reader/Six input/Four output system | Included | 1 | $1,380 | $1,380 |
| 751-3000 | 51E-1R/4I/2O-EXP | Edge Solution - One reader/Four input/Two Output system add-on | Included | 14 | $530.00 | $7,420 |
Locks, readers, printers, credentials, exit devices, and labor are not included.
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform* | Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smart phone. (BluREMOTE) Includes Photo-ID and Badge Printing. | per User | Included | 100 | $5.75 | $575 |
| 817-1120 | Intelligence* | Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics. | % other Licenses | Included | 1 | $778 | $778 |
| 817-0320 | Reader* | Channel License for (1) Reader. | Per Reader | Included | 12 | $130 | $2,082 |
| 817-0600 | Alarm & Intrusion** | Channel License for (1) Alarm Point (such as a door contact, motion detector, or panic button) that is declared in the BluSKY databases. | per Device | Included | 12 | $28 | $450 |
*Required Licenses
**Alarm and Intrusion is not required when there are no door contacts or other such alarm points to monitor.
Download the pdf: 16 Doors Edge Kits EP1501 Access Control Rev 03.pdf
