How to Quote
To learn about what to consider and how to quote an Access Control system, please visit:
Access Control - System Takeover

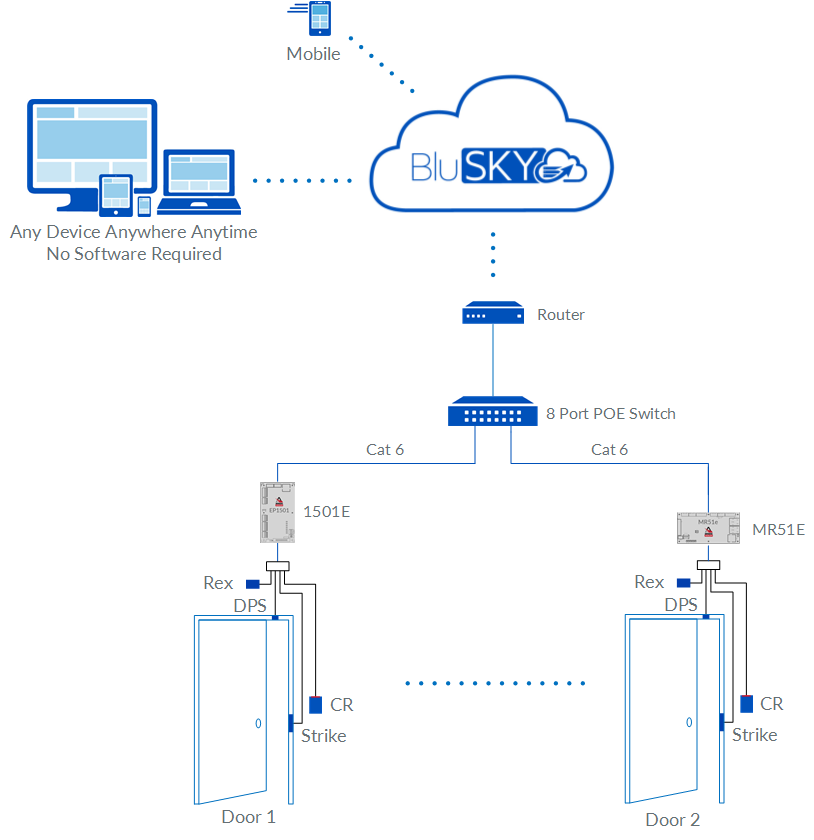

One Line System Diagram
Download the pdf: 2 Doors Edge Kits EP1501 Access Control Rev 01.pdf
BluBØX Equipment, Software and Professional Services
|751-2000||1501E-2R/6I/4O||Edge Solution - Two reader/Six input/Four output system||Included||1||$1,380||$1,380|
Locks, readers, printers, credentials, exit devices, and labor are not included.
|Part #||Item||Description||Unit Qty||Incl/Opt||Qty||Unit||Extended|
|817-0100||Platform*||Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smart phone. (BluREMOTE) Includes Photo-ID and Badge Printing.||per User||Included||100||$5.75||$575|
|817-1120||Intelligence*||Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics.||% other Licenses||Included||1||$240||$240|
|817-0320||Reader*||Channel License for (1) Reader.||Per Reader||Included||2||$160||$320|
|817-0600||Alarm & Intrusion**||Channel License for (1) Alarm Point (such as a door contact, motion detector, or panic button) that is declared in the BluSKY databases.||per Device||Included||2||$30||$60|
**Alarm and Intrusion is not required when there are no door contacts or other such alarm points to monitor.
