Mercury Board Takeover Info

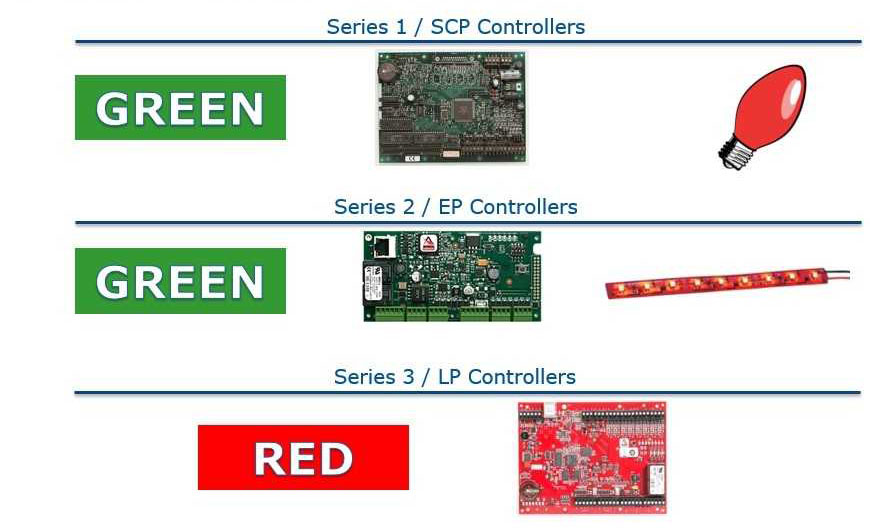

Panel Identification

The color of the board itself and the type of LED on the board are the easiest identifiers.

  • Series 1 SIO panels and SCP intelligent controllers are green boards, and have round LEDs
  • Series 2 SIO panels and EP Series intelligent controllers are also green boards, but the LEDs are low profile and square
  • Series 3 SIO panels and LP Series intelligent controllers are red boards
Series Replace or Reuse
Series 1: SCP-C, SCP-S, SCP-E Replace
Series 2: EP Reuse
Series 3: LP Newest series - Reuse
