64 Door EP4502-Based PACS

System Overview

64 Door EP4502-Based Physical Access Control System

System Use

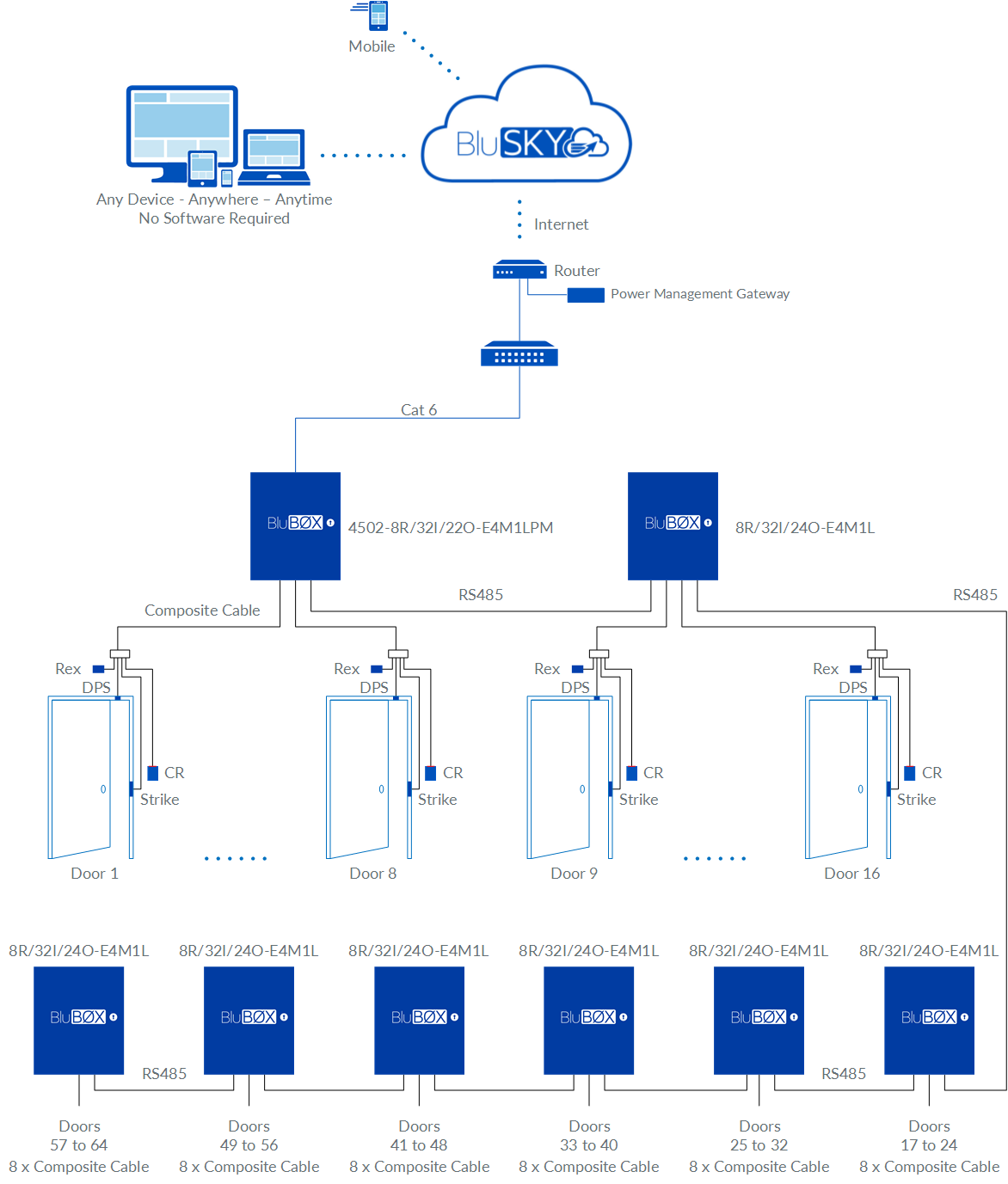

One Line System Diagram

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
750-5400 4502-8R/32I/22O-E4M1LPM Eight reader system/Thirty-Two/Twenty two output input system w/ managed lock power and power management - Kit includes 1 x EP4502 and 3 x MR52 w/ locking 8 door encl with tamper & wiring kit. Managed lock power/ Power mon & control. Included 1 $4,793.00 $4,793.00
752-8500 8R/32I/24O-E4M1L Eight Reader/Thirty Two/Twenty Four Input addition Included 7 $3,683.00 $25,781.00
160-2200 Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Included 64 $267.00 $17,088.00
400-1000 Router - CradlePoint MBR1200B Broadband Router Router - CradlePoint MBR1200B Broadband Router Included 1 $434.00 $434.00
410-1400 8 Port Unmanaged Gigabit Switch Switch - HP ProCurve Switch 1410-8G (J9559A) Included 1 $133.00 $133.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Included 1 $360.00 $360.00
320-1000 Card - HID iClass w/ slot - 26 bit, F/C 201 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Included 2,500 $4.30 $10,750.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 80 $97.00 $7,760.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 60 $182.00 $10,920.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 4 $97.00 $388.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 16 $146.00 $2,336.00

BluSKY Licenses

Part # BluSKY License Description Unit Quantity Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY. Base on number of ACTIVE users in the database, excluding deleted and suspended.  Pre Requisite for any other BluSKY license. per User  Included 2,000 $0.79 $1,575.00
817-0120 User Photo & Badge Printing Capture and storage of user and vendor photos and printing of  Photo-ID Badges.  Pre-Requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. per User  Included 2,000 $0.47 $934.00
817-0320 Access Control Per-Reader license - provides all the access control core functionality Per Reader  Included 64 $91.78 $5,874.00
817-1080 Power Management Per-Device Power Management License. Per Device per Facility Included 1 $200.00 $200.00
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $858.30 $858.30
817-1220 System Health System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $429.15 $429.15

MSRP Installed Cost

#Describe the costs

64_Door_EP4502_Based_PACS.pdf
