32 Door EP4502-Based PACS
System Overview
32 Door EP4502-Based Physical Access Control System
How to Quote
To learn about what to consider and how to quote an Access Control system, please visit:
Access Control - System Takeover
System Use

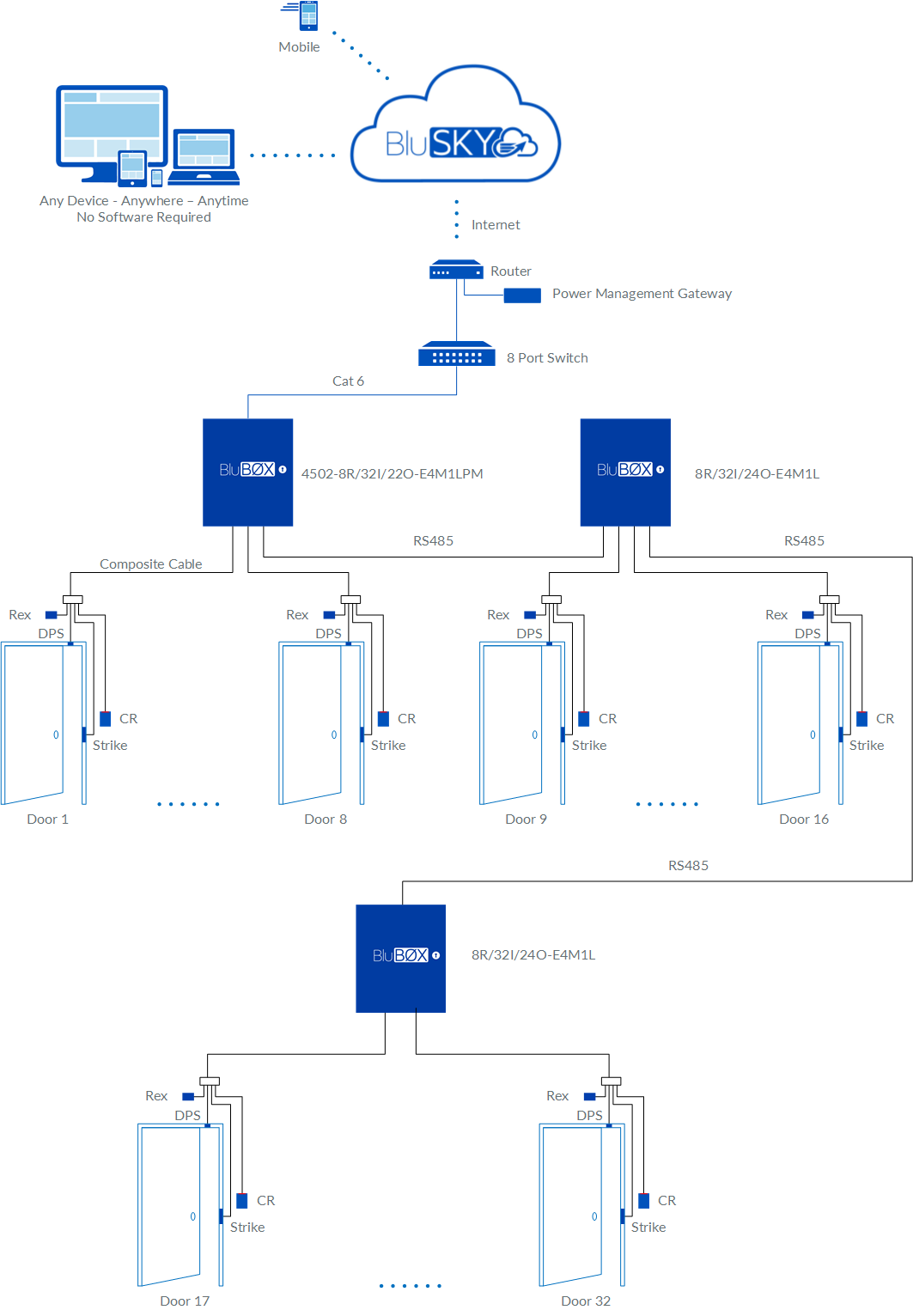

One Line System Diagram
BluBØX Equipment, Software and Professional Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 750-5400 | 4502-8R/32I/22O-E4M1LPM | Eight reader system/Thirty-Two/Twenty two output input system w/ managed lock power and power management - Kit includes 1 x EP4502 and 3 x MR52 w/ locking 8 door encl with tamper & wiring kit. Managed lock power/ Power mon & control. | Included | 1 | $4,792 | $4,792 |
| 752-8500 | 8R/32I/24O-E4M1L | Eight Reader/Thirty Two/Twenty Four Input addition | Included | 3 | $3,682 | $11,046 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. |
Included | 1 | $360 | $360 |
*BluBØX provides 3 variants for each Access Control kit. The kit shown is recommended for new installations and provides integrated power supply, lock power, and power management. Less expensive options are available with power supply and lock power () or just power supply (). The Power Management Gateway is not required for these options.
Locks, readers, printers, credentials, exit devices and labor are not included.
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform* | Covers the use of the systems's infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smart phone.(BluREMOTE) Includes Photo-ID and Badge Printing. | per User | Included | 100 | $5.75 | $575 |
| 817-1120 | Intelligence* | Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics. | % other Licenses | Included | 1 | $1,237 | $1,237 |
| 817-0320 | Reader* | Channel License for (1) Reader. | Per Reader | Included | 32 | $108 | $3,484 |
| 817-0600 | Alarm & Intrusion** | Channel License for (1) Alarm Point (such as a door contact, motion detector, or panic button) that is declared in the BluSKY databases. | per Device | Included | 32 | $20 | $643 |
| 817-1080 | Power Management | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $240 | $240 |
*Required Licenses
**Alarm and Intrusion is not required when there are no door contacts or other such alarm points to monitor.
