BluSKY™ Power Management

Power Mangement

Real Time Power Monitoring and Management with Intelligence

Remote power monitoring and management with intelligence watches, notifies and reacts to all power related conditions.  Get notified by email, text or while online when one of the power solutions is running hot, the access control won’t engage, or the security solution might somehow be compromised should a real emergency occur. Remotely access from anywhere, assess the system health, and even reboot or reset necessary components. If on-site service is necessary, it can be scheduled with the proper parts and accessories, so ideally the visit is accomplished during a single call. Here’s what intelligent remote monitoring brings to the table for both integrator and end user.

Power Mangement

Key Benefits

  1. Know your system is properly powered
  2. Know your doors locks are powered
  3. Reduced service calls, truck rolls and maintenance costs
  4. Get alerted when you switch to battery backup
  5. Get alerted when enclosure temperatures are out of range
  6. Perform remote shut downs, diagnostics and fire tests
  7. Get Instant notification of any power related trouble alerts
  8. Tie in to comprehensive System Health monitoring

Key Features

  1. Remote control of system power from any device, anywhere, at any time
  2. Remote power cycle and shutdown
  3. Real time power monitoring, statues and events
  4. Over 40 power analytics and events
  5. Advanced power analytics and events
  6. Integration with AI situation conditions and response
  7. On screen, Email and SMS notifications
  8. Multiple notifications through distribution lists

Overview

Platform

Platform

Access

Access

Alarms

Alarms

Video

Video

Visitors

Visitors

Biometrics

Biometrics

Elevators

Elevators

Intelligence

Intelligence

Power

Power

Health

Health

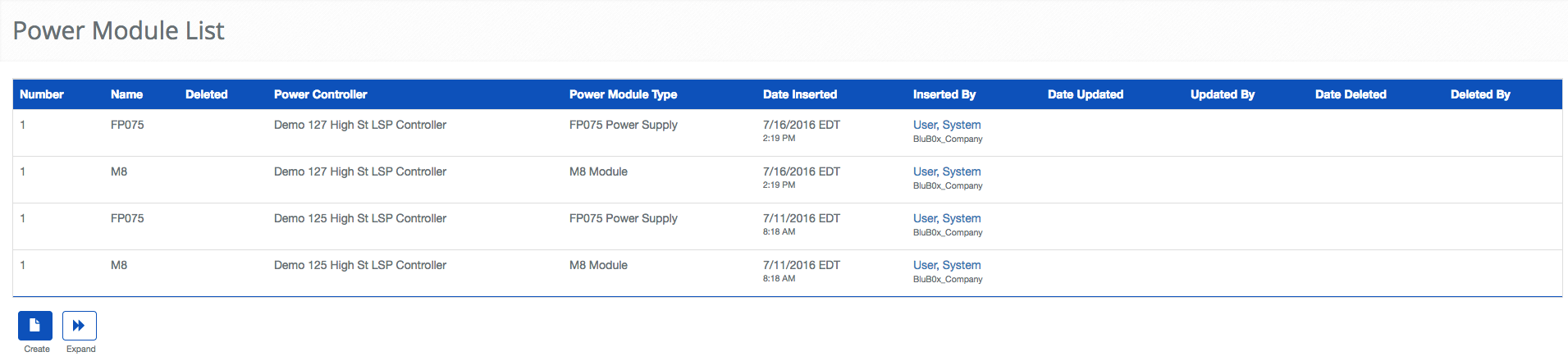

Power Module

Learn how to configure Power Modules






Architecture Diagram

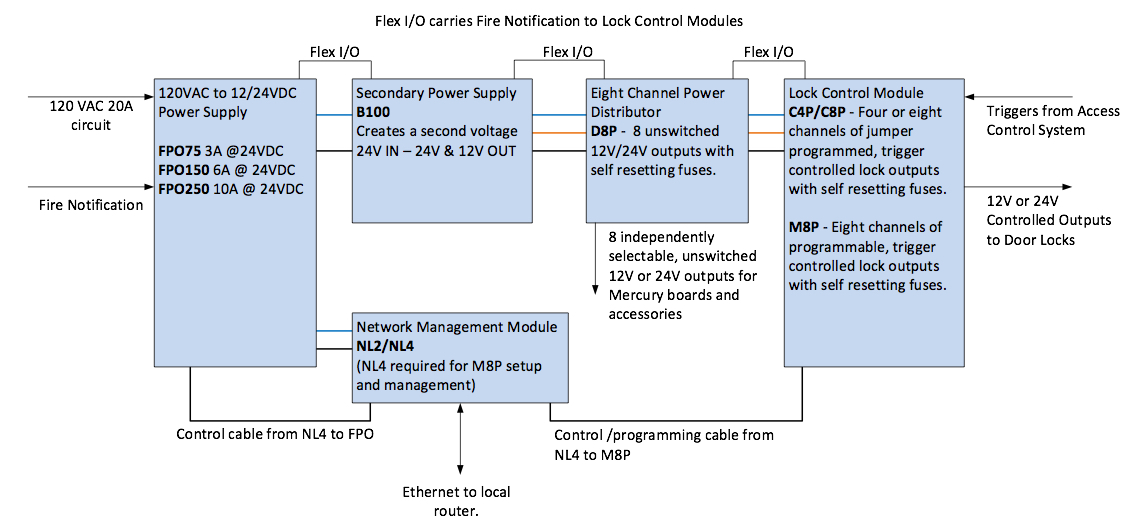

Lifesafety Power Configuration

Diagram 1: Power Management Schematic (https://knowledge.blub0x.com/BluCHIP...t_Interconnect )


Diagram 2: Applying Power Management to an Entire System

Control and monitor power to:

  1. Access Control and Alarm Enclosures
  2. Fire System
  3. Door Locks
  4. Elevator Destination Dispatch Servers
  5. Video and Analytic Servers
  6. Cameras
  7. Turnstiles


Analytics and Events

All local power management components communicate their status and take their commands from the NL4/NL2. Power information is sent to BluSKY and analyzed in real time. More than 40 power conditions are analyzed and produce system events when conditions persist. Events are analyzed by and Intelligence engine and actions are taken automatically based upon the conditions.

  1. Power State Change to AC /Battery
  2. Battery Running Low
  3. Battery Needs Check/Replacement
  4. Power Supply Voltages Exceeded or Limited
  5. Power Supply Currents Exceeded or Limited
  6. Temperature Above or Below Limits
  7. Power Limited
  8. Power Not Ready
  9. Control Input Status Change to Active/Inactive
  10. Fire Relay Status Change to Active/Inactive
  11. Zone Status Change
  12. Communication Errors
  13. Data Not Being Read


Licensing Information:

BluBØX Part # Description
817-1060 Power Management

Ordering Information:

Below are the devices that make up the power management capability. Many of these devices are included in the kits that support power management. Power management parts can be ordered separately or as part of kits.

BluBØX Part # Description
670-2100 Four Port Network Communication Interface for Remote Power Monitoring, Reporting and Control
670-2000 Two Port Network Communication Interface for Remote Power Monitoring, Reporting and Control
  The Board in the Demo Kit
670-1720 8 Output, Power Distribution Module Fused (D8) or Class 2 Power Limited (D8P)

670-1810

670-1830

4 or 8 Output, Relay Based Lock Control Module Fused (C4, C8) or Class 2 Power Limited (C4P, C8P
670-2840 8 Output, Smart Monitoring and Control Module Fused (M8) or Class 2 Power Limited (M8P)
FPO75
FPO150
FPO250

LifeSafety Power Component Interconnect
670-1840

Programmable Voltage Power Supply, 12VDC or 5V to 18VDC adjustable @ 4 Amps, Class 2 Power Limited

Stick Computer Low Cost Option
NUC Mid Cost Option
Existing Server or Computer Existing Server/Computer – No Cost Option
Power Management Service Required software that communicates with power hardware and BluSKY, executes commands, updates software and manages system power health

Reference: The VPN / Remote Management Gateway and Power Management is required for solutions that include BluBØX Video Management Integration, Destination Dispatch Elevators or Person Readers.
