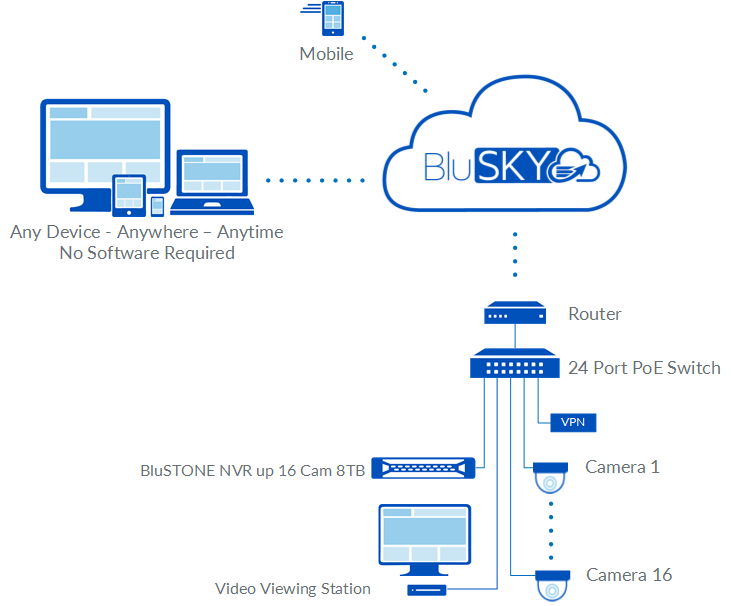

One Line System Diagram
Download the pdf: 16_Cameras_Rev_01.pdf
BluBØX Equipment, Software and Professional Services
|228-0700||BluSTONE NVR - BCDSF01-VA-15-8TB||BluSTONE NVR - 24 Cameras - Small Form Factor - Core i5-6500 - Windows 7 Pro 64 bit - 4GB RAM - 128GB SSD - 8TB 7200RPM SATA - 180Watt - 1x 1GbE - 1.3"H x 6.9"W x7"D||Included||1||$2,300||$2,300|
|817-1450||One Time SW License - NVR Integration License - Per Camera**||One Time SW License - NVR Integration License - Per Camera||Included||16||$75||$1200|
|PS-12||Prof. Serv. - Video Integration||Prof. Services - Video Integration - Per Hr.||Included||8||$150||$1200|
|PS-15||Prof. Serv. - VPN||Prof. Serv. - VPN - Flat Fee||Included||1||$400||$400|
Part #'s 817-1450, PS-12, and PS-15 are all required one-time fees.
*Milestone XProtect Corporate is included with all NVR's purchased through BluBØX.
**One-time NVR Integration software is required. This is our software fee based on the number of cameras to integrate to BluSKY.
Devices and Labor are not included.
|Part #||Item||Description||Unit Qty||Incl/Opt||Qty||Unit||Extended|
|817-0100||Platform*||Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smartphone. (BluREMOTE) Includes Photo-ID and Badge Printing.||per User||Included||250||$3.75||$936|
|817-1120||Intelligence*||Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics.||% other Licenses||Included||1||$1,160||$1,160|
|817-0160||VPN*||VPN service: Needed for monitoring and remote support for the on-premises security network. Also for certain features such as DDE or Video Playback.||per Facility Served||Included||1||$500||$500|
|817-0660||Camera Local Recording*||Channel License for the connection of one (1) camera to a local NVR for recording. Includes the ability to configure the camera and the video events in BluSKY.||per Camera||Included||16||$128.56||$2,057|
|817-0680||Camera Cloud Recording||Channel License for the transmission of one (1) camera's video to send video events to the Cloud.||per Camera||Included||16||$102.85||$1,646|
**Includes the Milestone Care Plus Support
You can have some cameras only recording locally and other cameras recording locally and to the Cloud.
