24 Camera System

System Overview

24 Camera System

System Use

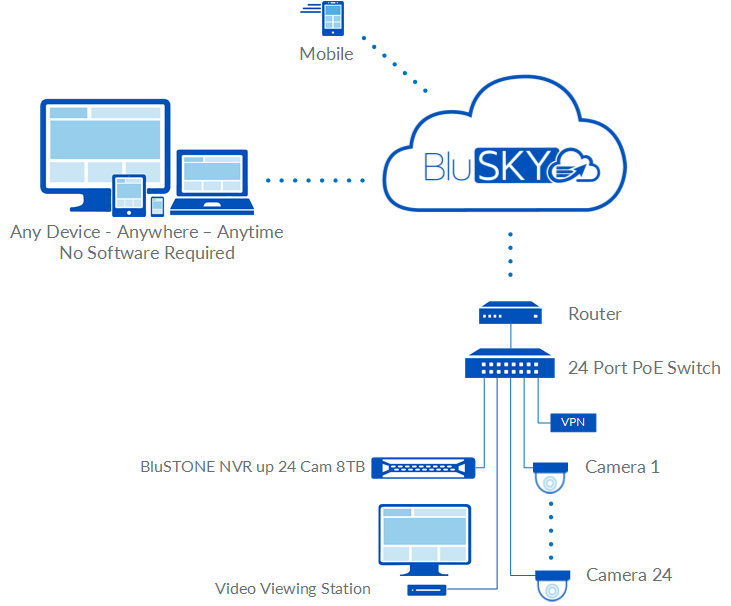

One Line System Diagram

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
221-1900 IR Pro Dome Camera w/ Focus/Zoom - 2.0MP, MZF 3.0-10.5mm Remote Focus and Zoom IR Pro Dome Camera-(MS-C2972-FIPMB) 2.0MP, Motorized Zoom Lens 3.0-10.5mm Included 24 $625.00 $15,000.00
228-0700 BCDSF01-VA-15-8TB BluSTONE NVR - 24 Cameras - Small Form Factor - Core i5-6500 - Windows 7 Pro 64 bit - 4GB RAM - 128GB SSD - 8TB 7200RPM SATA - 180Watt - 1x 1GbE - 1.3"H x 6.9"W x7"D Included 1 $2,530.00 $2,530.00
410-1600 24 Port Managed Gigabit Switch + POE - RM Switch - HP ProCurve Switch 2920-24G+PoE (J9727A) Included 1 $3,239.00 $3,239.00
410-2200 Netgear ProSafe FS108P 8 port 10/100 Switch (4 PoE) Netgear ProSafe FS108P 8 port 10/100 Switch (4 PoE) Included 1 $168.00 $168.00
775-0100 Video Viewing Station Video Viewing Station Included 1 $1,691.00 $1,691.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 24 $97.00 $2,328.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 24 $182.00 $4,368.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 3 $97.00 $291.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 6 $146.00 $876.00



BluSKY Licenses

Part # BluSKY License Description Unit Quantity Incl/Opt Qty Unit  Extended
817-0140 VPN VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers.   per System Included 1 $450.00 $450.00
817-0700 Local + Cloud Video Per Camera license - Connection of the camera to a BluSTONE(local) or to the BluMILE(Cloud) NVR,  and transmission of video events to BluSKY for recording and playback. per Camera  Included 24 $164.64 $3,951.00
817-0760 NVR Integration Per Camera license - Connection of the camera to a local NVR for recording.  Includes ability to configure the camera and the video events in BluSKY.   Under this license, no video is sent to BluSKY, or available for playback in BluSKY. per Camera  Included 24 $32.72 $785.00
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $518.60 $518.60
817-1220 System Health System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $259.30 $259.30



MSRP Installed Cost

Video_24_Camera.pdf
