4 Car Relay Elevator PACS
System Overview
4 Car Relay Elevator Physical Access Control System.
System Use

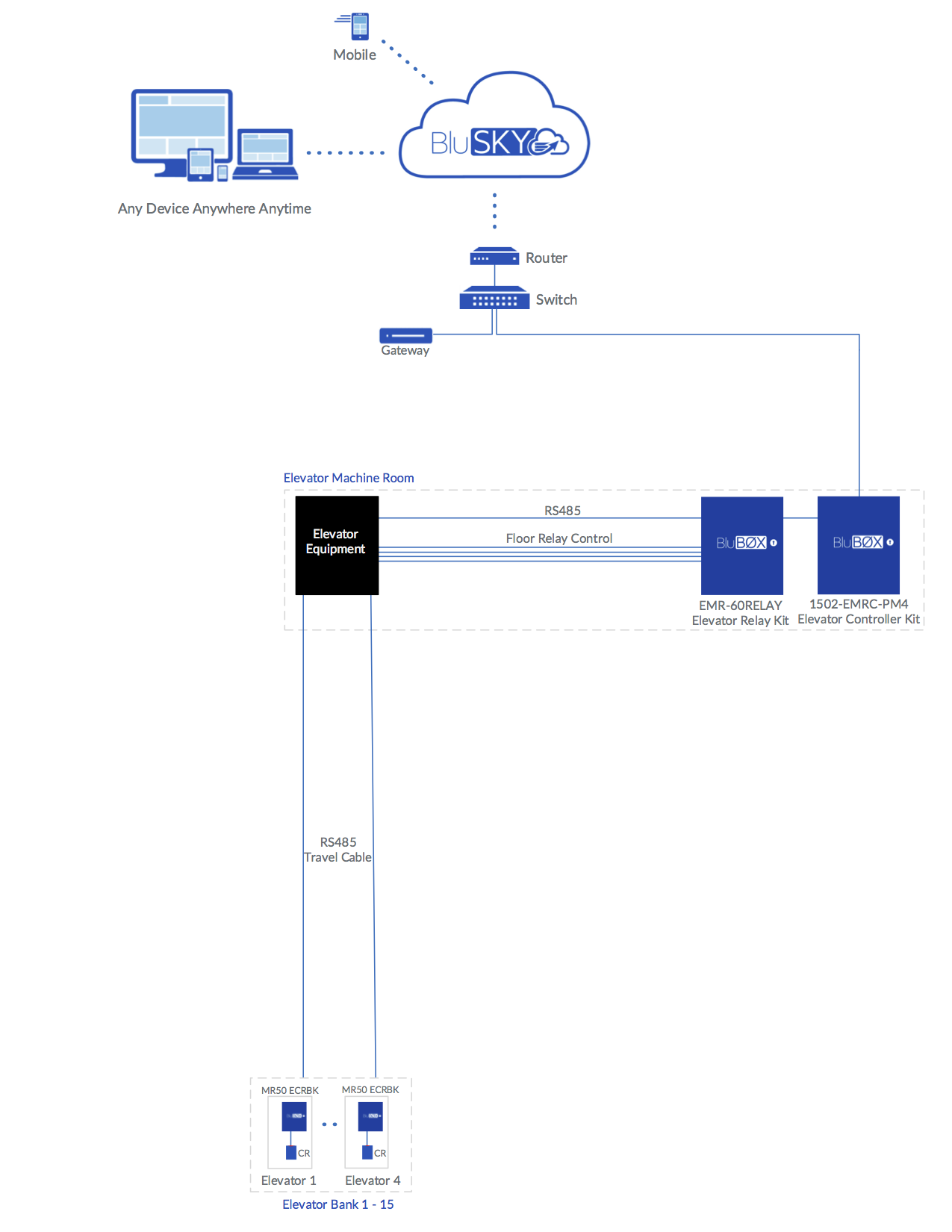

One Line System Diagram
BluBØX Equipment, Software and Professional Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 753-2000 | MR50-ECRBK Elevator Car Reader Kit | Elevator Car Reader Board Kit Includes 1 x MR50, 1 x Voltage regulator, and 1 x Mounting Hardware. |
Included | 4 | $478 | $1,912 |
| 753-3200 | EMR-48RELAY Elevator Relay Kit | Elevator Relay Kit. Supports up to 48 Total Floor Stops. Includes 3 x Mercury MR16out, Enclosure, Power, Mounting Hardware. | Included | 1 | $3,192 | $3,192 |
| 753-1200 | 1502-EMRC-PM4 Elevator Controller Kit | Elevator Systems Controller - 1 to 8 Cars up to 32 SIOs. Supports Optional Floor ID. Supports remote power management for 1 additional enclosure PS. Kit: 1 x EP1502 1 x MUX8, 1 x NL4 , encl & power. SIO kits ordered separately. | Included | 1 | $3,027 | $3,027 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. |
Included | 1 | $360 | $360 |
Devices and Labor are not included.
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform* | Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smartphone. (BluREMOTE) Includes Photo-ID and Badge Printing. | per User | Included | 2,000 | $2.11 | $4,214 |
| 817-1120 | Intelligence* | Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics. | % other Licenses | Included | 1 | $1,469 | $1,469 |
| 817-0320 | Reader* | Channel License for (1) Reader. | Per Reader | Included | 4 | $160 | $640 |
| 817-0790 | Elevator Relay System* | License for a relay-based elevator system. Covers the handling of transactions such as the granting/denying of access to the floors and the reporting of such events. Also includes the configuration of a relay-based elevator system in BluSKY. | per eElevator | Included | 4 |
$194.67 |
$779 |
| 817-1080 | Power Management* | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $240 | $240 |
*Required Licenses
Download the pdf: 4 Elevators Rev 01.pdf
