20 Car Relay Elevator PACS
System Overview
20 Car Relay Elevator Physical Access Control System.
System Use

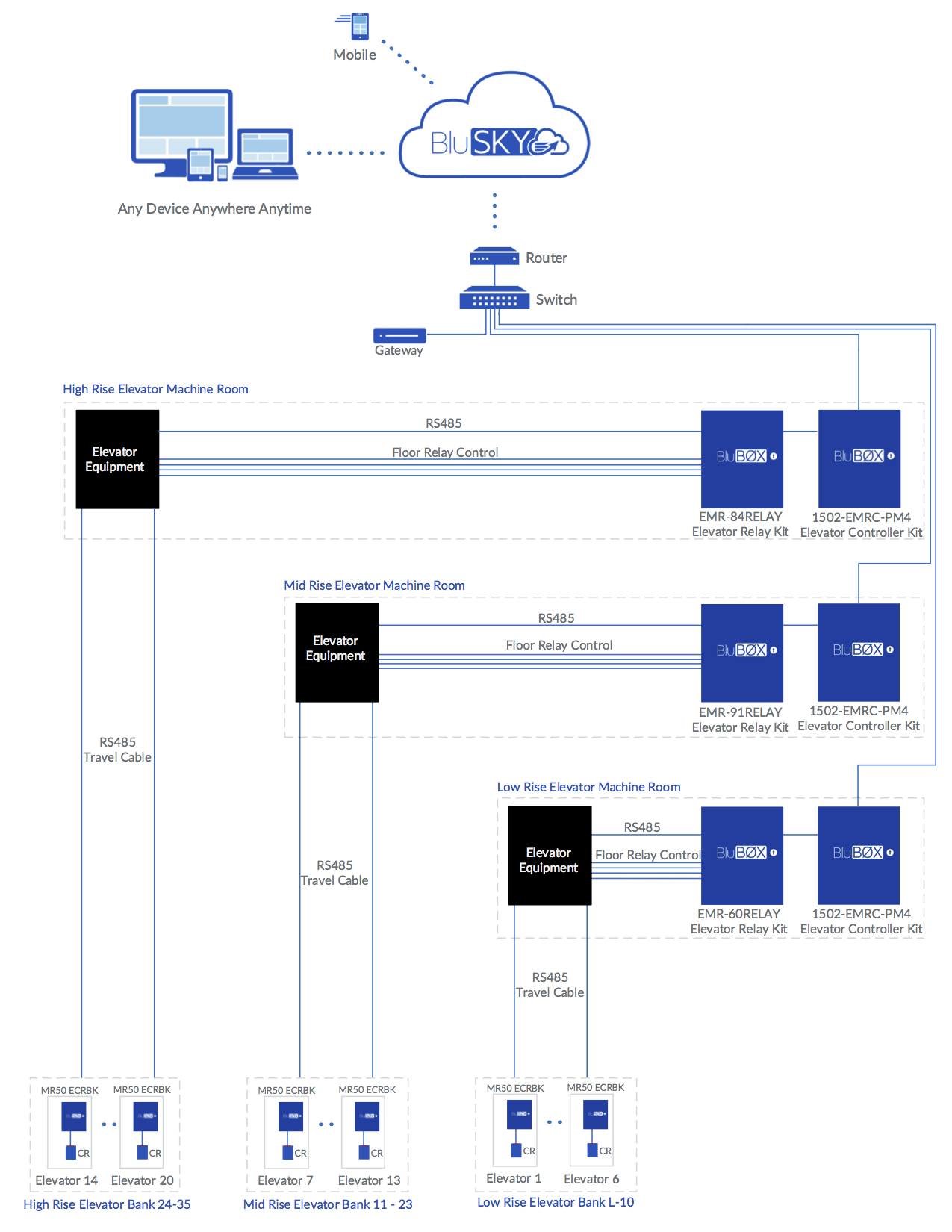

One Line System Diagram
Download the pdf: 20 Elevators Rev 01.pdf
BluBØX Equipment, Software and Professional Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 753-1200 | 1502-EMRC-PM4 Elevator Controller Kit | Elevator Systems Controller - 1 to 8 Cars up to 32 SIOs. Supports Optional Floor ID. Supports remote power management for 1 additional enclosure PS. Kit: 1 x EP1502 1 x MUX8, 1 x NL4 , encl & power. SIO kits ordered separately. | Included | 3 | $3,027 | $6,054 |
| 753-2000 | MR50-ECRBK Elevator Car Reader Kit | Elevator Car Reader Board Kit Includes 1 x MR50, 1 x Voltage regulator, and 1 x Mounting Hardware. | Included | 20 | $478 | $7,648 |
| 753-3400 | EMR-80RELAY Elevator Relay Kit | Elevator Relay Kit. Supports up to 80 Total Floor Stops. Includes 5 x Mercury MR16out, Enclosure, Power, Mounting Hardware. | Included | 1 | $4,882 | $4,882 |
| 753-3500 | EMR-96RELAY Elevator Relay Kit | Elevator Relay Kit. Supports up to 96 Total Floor Stops. Includes 6 x Mercury MR16out, Enclosure, Power, Mounting Hardware. | Included | 1 | $5,712 | $5,712 |
| 753-3300 | EMR-64RELAY Elevator Relay Kit | Elevator Relay Kit. Supports up to 64 Total Floor Stops. Includes 4 x Mercury MR16out, Enclosure, Power, Mounting Hardware. | Included | 1 | $4,022 | $4,022 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360 | $360 |
Devices and Labor are not included.
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform* | Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smartphone. (BluREMOTE) Includes Photo-ID and Badge Printing. | per User | Included | 4,500 | $1.61 | $7,242 |
| 817-1120 | Intelligence* | Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics. | % other Licenses | Included | 1 | $3,240 | $3,240 |
| 817-0320 | Reader* | Channel License for (1) Reader. | Per Reader | Included | 20 | $122.32 | $2,446 |
| 817-0790 | Elevator Relay System* | License for a relay-based elevator system. Covers the handling of transactions such as the granting/denying of access to the floors and the reporting of such events. Also includes the configuration of a relay-based elevator system in BluSKY. | per Elevator | Included | 20 | $143. 03 | $2,861 |
| 817-1080 | Power Management* | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $136.25 | $409 |
*Required Licenses
