BluCHIP EMR-48RELAY (753-3200)
Click to view 753-3200 Datasheet.pdf
BluCHIP EMR-48RELAY Elevator System I/O for up to 48 Total Floor Stops

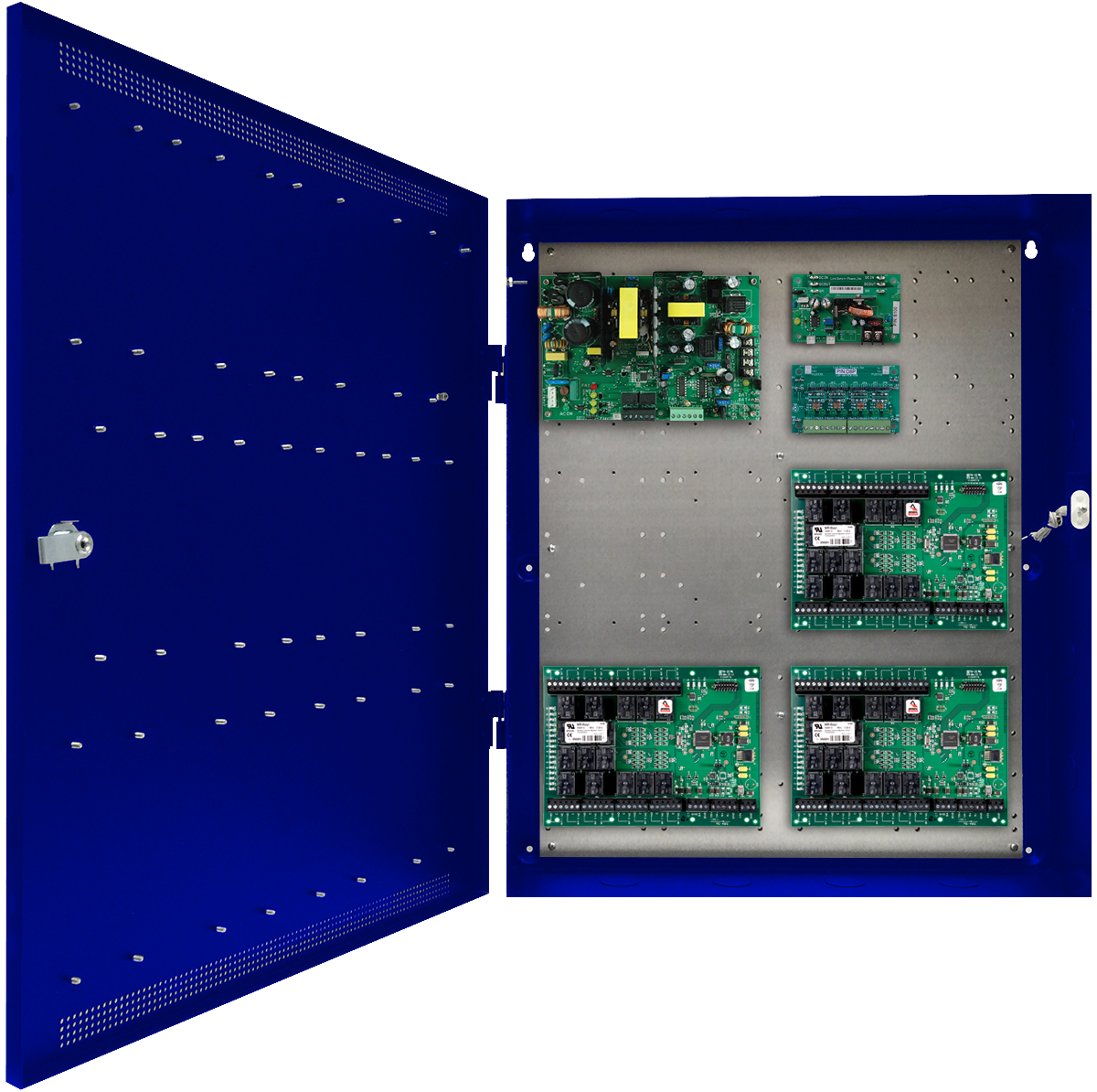

The BluCHIP EMR-48RELAY is relay elevator system I/O that supports up to 48 floor stops. The kit is designed to be installed in an elevator machine room and works in conjunction with an EMR Controller kit. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes three Mercury MR16OUT boards, a locking enclosure with tamper, power supply and wiring speed kit.
System Features
FPO offline power supply
- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On board Fire Alarm Interface
- Continuous and resettable DC
Distributed output module
- Four, controlled fused at 3A each
- Eight, auxiliary Class II P limited at 2.5A each
Expansion options
- Increased power, multiple voltages
- Additional distribution outputs
- Power Management
Enclosure Features
Labor saving design
- Unified power and security in one enclosure
- Pre-wired power section
- Removable backplate simplifies installs
- Speed kit is included for power and data wiring
- Includes mounting studs on door to add additional
I/O boards
Additional benefits
- Wire management room
- 4.5” enclosure depth fits battery set
- Tamper switch, lock, dual key set standard
- Mounting hardware for access boards included
Specifications
Input Power:
- Input 120/230VAC 50/60Hz | 200 Watts
- Overload and short circuit protection
- Overload temperature protection
- Polarized AC power supply disconnect
Output Power:
- 150W Total Output Power | 12VDC/12A or 24VDC/6A
- 5-18VDC @ 4A Max. | FPO Board Outputs: Continuous (DC1), Resettable (DC2)
- 8 Auxiliary Outputs, Class 2 PL @ 2.5A Each
- 120mV Output Voltage Ripple | System Efficiency: 88% | System BTU Rating: 66 BTU/Hr
Battery Charging:
- Independent built-in 2A (FPO150) Charger for sealed lead-acid or gel type batteries)
- Microprocessor dual rate charging of 12 or 24V battery sets
- Automatic switchover to standby battery when AC fails
- Zero voltage drop when switched over to battery backup
Power and Enclosure Regulatory Compliance:
- UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527
- CSA C22.2 #107.1, FCC Part 15, CSFM Approved
Access Panel:
- (3) MR16OUT
- 48 Outputs
Size and Weight:
- 24.00”H x 20.00”W x 4.50”D | 42 lbs.

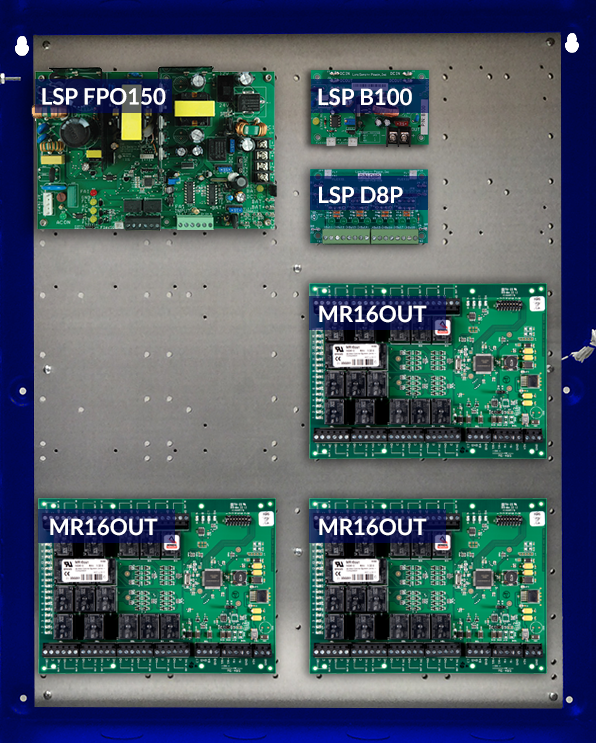

Recommended board layout
Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| MR16OUT | 120-2200 | 3 | Mercury MR16OUT: 16 Programmable Form C Relays 12/24VDC |
| E4M-SK-4 | 577-3010 | 1 | BluBØX E4M-SK-4 Speed Kit: Four board precut DC power and RS485 wiring kit |
| FPO150-B100D8PE4M1 | 670-1385 | 1 | LifeSafety Power: Eight door power supply w/ power distribution and management, includes enclosure |
Ordering Information
| BluBØX Order # | Description |
|---|---|
| 753-3200 | BluCHIP EMR48RELAY Elevator System I/O for up to 48 Total Floor Stops |
