IDWedge Pro

idwedgepro.jpg The IDWedge®Pro form filler solution scans drivers licenses, ID cards, credit cards and other magnetic striped cards and fills multiple computer forms with information from the card. It automatically recognizes and populates forms in multiple PC applications, allowing different applications to share the same ID scanner. It works with any PC application that accepts keyboard input.

Need help configuring the IDWedge Pro? Check out our guide here.





IDWedge®Pro Features

  • Recognizes different forms and adjusts AutoFill formula
  • Runs in the background and can fill multiple forms simultaneously
  • AutoFills virtually all computer forms that accept keyboard entry
  • 100% accuracy of ID card data entry
  • Captures card images to PC folder (with m280 scanner)
  • Fast, 1 to 2 seconds
  • Simple drag & drop configuration
  • Automatic software updates and no annual fees
  • Supports range of hardware including m260 & m280

IDWedge®Pro Benefits

  • Reduce data entry errors
  • Helps detect fake IDs
  • Improves customer service
  • Captures customer images
  • Chargeback protection
  • No software development




Handles all N. American drivers licenses*, state issued IDs, Ontario health card, military IDs, payment cards, other magnetic stripe cards [* Except pre 11/2009 encrypted Georgia licenses and pre 3/2011 MI licenses that lack name & address fields. Includes encrypted Illinois licenses. ]

Weight 3 lbs
Dimensions 4 x 2.5 x 3 in
System Requirements Requires a PC with a USB port running Windows 2000, Windows XP, Windows Vista, Windows 7 or Windows 8.

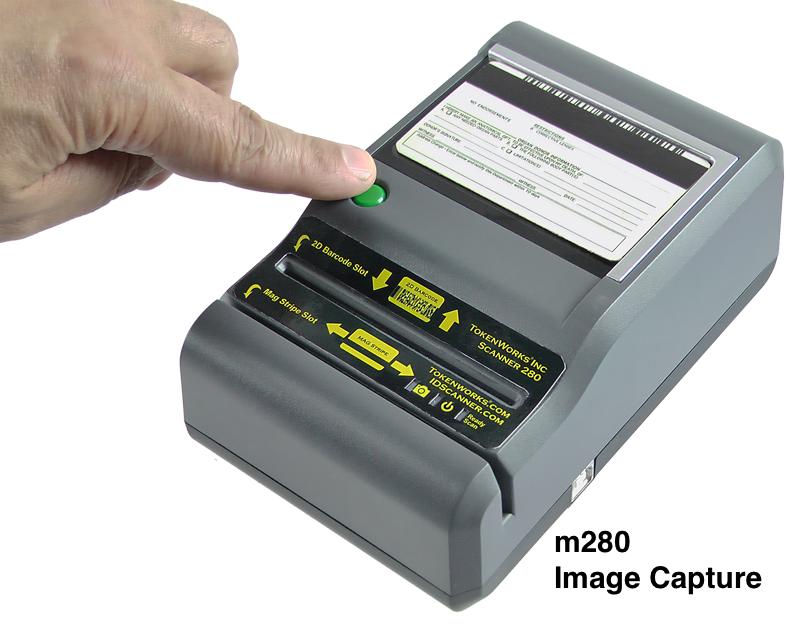

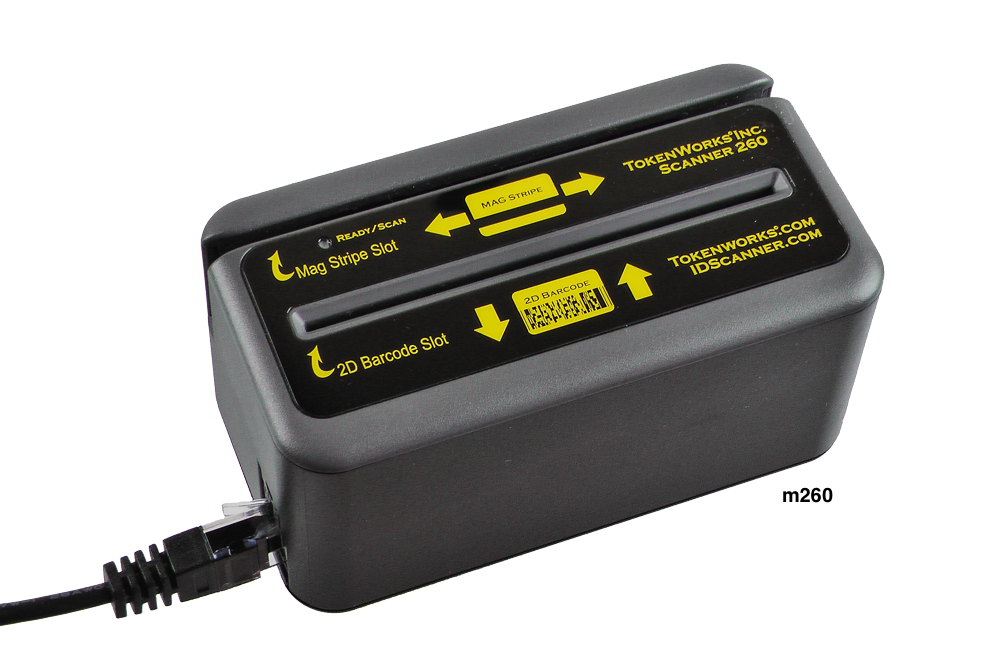

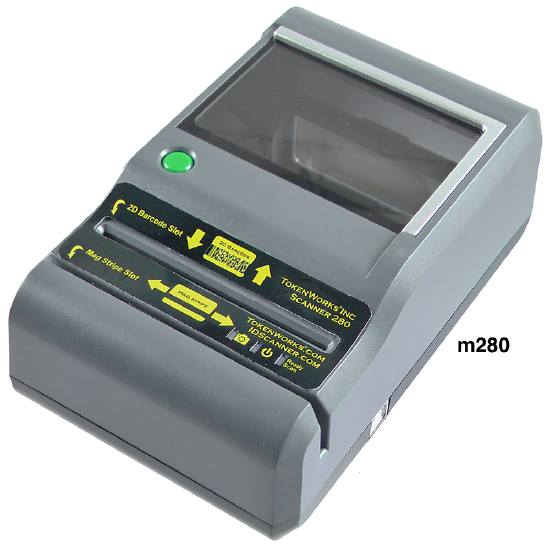

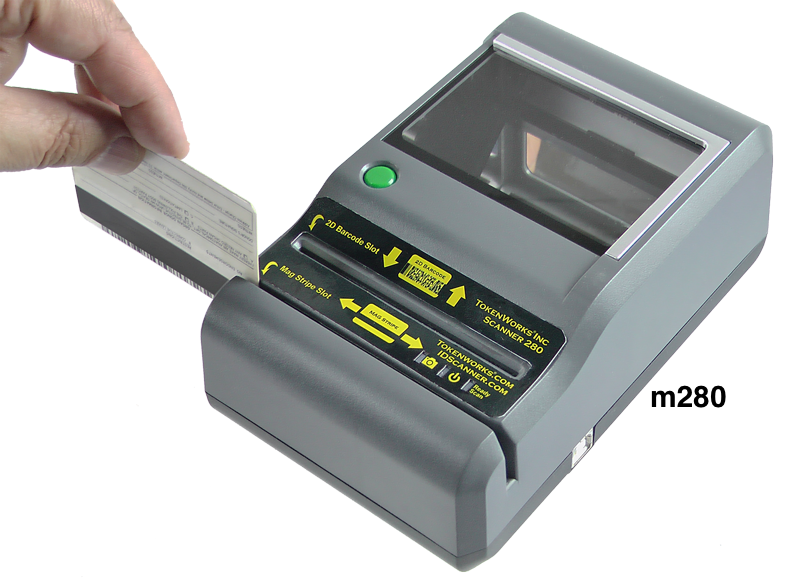

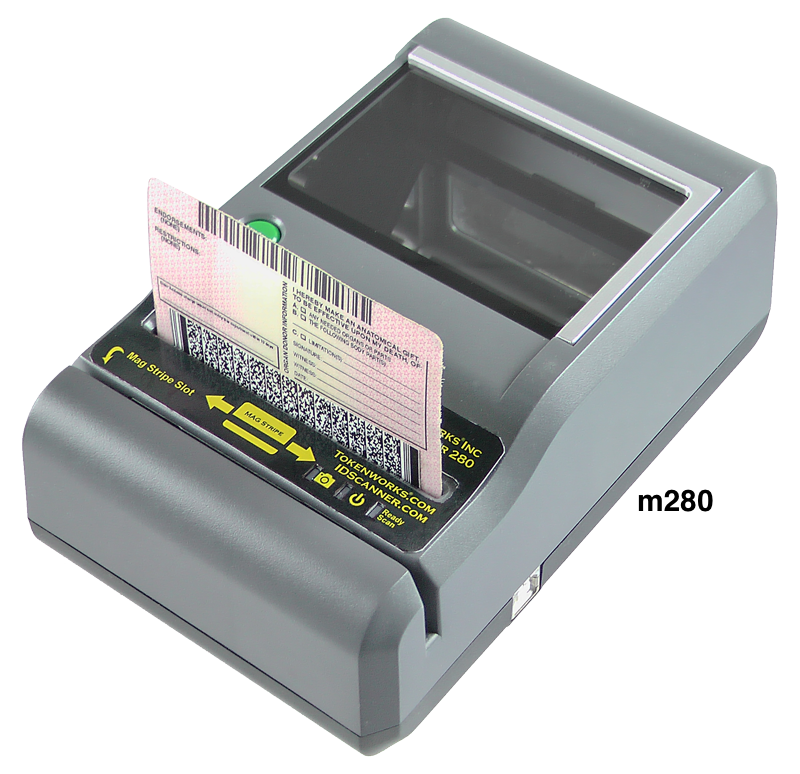

Scanner Type m260 [barcode and magnetic stripe only], m280 [adds imaging capability]
Input Sources 1D Barcode, 2D Barcode, Magnetic Stripe, Image Capture
Accessories Included USB Cable, Software Installation CD
Software Included IDWedgePro AutoFill (PC Only)
Battery Powered No
