BluCHIP EMR-16RELAY (753-3000)

Click to view 753-3000 Datasheet.pdf


BluCHIP EMR-16RELAY Elevator System I/O for up to 16 Total Floor Stops

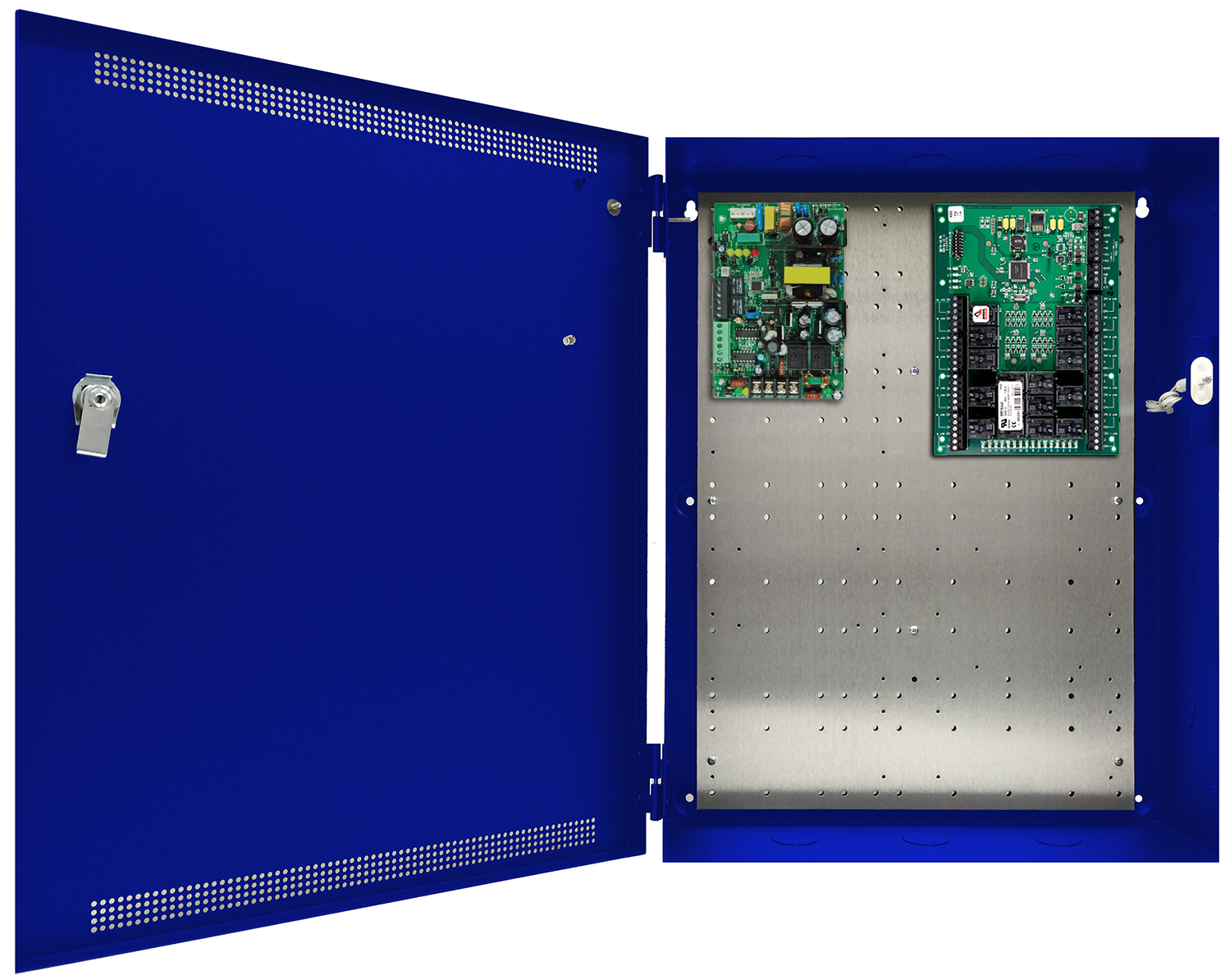

The BluCHIP EMR-16RELAY is relay elevator system I/O that supports up to 16 floor stops. The kit is designed to be installed in an elevator machine room and works in conjunction with an EMR Controller kit. The kit is configured with space to add a backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes one (1) Mercury MR16OUT board, a locking enclosure with tamper switch, a power supply, and a speed wiring kit.

EMR Relay

System Features

FPO offline power supply

  1. 120 or 230 VAC input
  2. 12 and 24 VDC outputs
  3. Onboard Fire Alarm Interface
  4. Continuous and resettable DC

Distributed output module

  1. Four (4) controlled outputs fused at 3A each
  2. Sixteen (16) auxiliary Class II relays P-limited at 2.5A each

Expansion options

  1. Increased power, multiple voltages
  2. Additional distribution outputs
  3. Power Management

Enclosure Features

Labor-saving design

  1. Unified power and security in one enclosure
  2. Pre-wired power section
  3. Removable back plate simplifies installation
  4. Speed kit is included for power and data wiring

Additional benefits

  1. Space for wire management
  2. 4.5” enclosure depth fits battery set
  3. Tamper switch, lock, two standard keys
  4. Mounting hardware for access boards included


Input Power:
  1. Input 120/230VAC 50/60Hz | 200 Watts
  2. Overload and short circuit protection
  3. Overload temperature protection
  4. Polarized AC power supply disconnect

Output Power:

  1. 150W Total Output Power | 12VDC/12A or 24VDC/5A
  2. 5-18VDC @ 4A Max. | FPO Board Outputs: Continuous (DC1), Resettable (DC2)
  3. 8 Auxiliary Outputs, Class 2 PL @ 2.5A Each
  4. 120mV Output Voltage Ripple | System Efficiency: 88% | System BTU Rating: 66 BTU/Hr

Battery Charging:

  1. Independent built-in 2A (FPO150) Charger for sealed lead-acid or gel type batteries)
  2. Microprocessor dual rate charging of 12 or 24V battery sets
  3. Automatic switchover to standby battery when AC fails
  4. Zero voltage drop when switched over to battery backup
Power and Enclosure Regulatory Compliance:
  1. UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527
  2. CSA C22.2 #107.1, FCC Part 15, CSFM Approved

Access Panel:

  1. (1) MR16OUT
  2. 16 Outputs

Size and Weight:

  1. 20.00”H x 16.00”W x 4.50”D | 23 lbs.

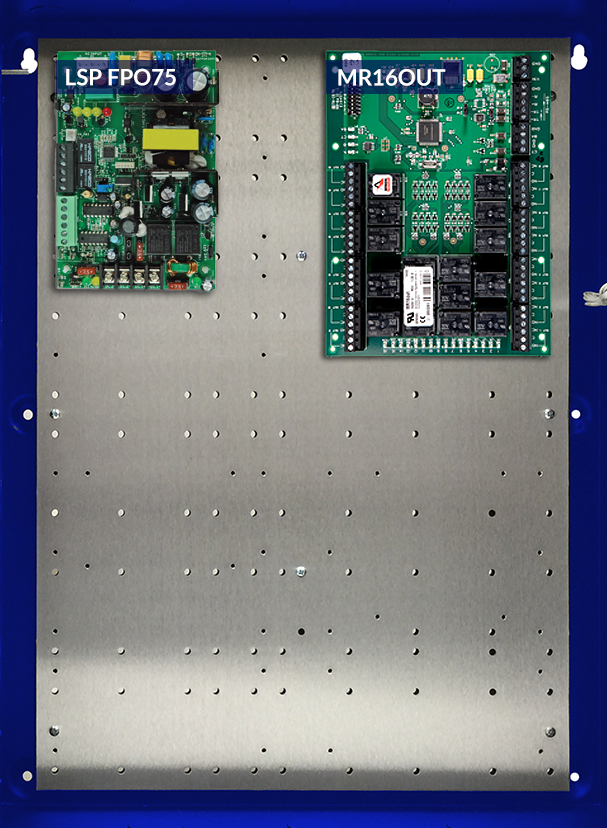

Recommended board layout


                                      EMR Relay

Kit Includes

MFG Part # BluBØX Order # QTY Description
MR16OUT 120-2200 1 Mercury MR16OUT: 16 Programmable Form C Relays 12/24VDC
FPO150-E2M 670-1320 1 LifeSafety Power: Single voltage power supply,
includes enclosure

Ordering Information

BluBØX Order # Description
753-3000 BluCHIP EMR-16RELAY Elevator System I/O for up to 16 Total Floor Stops
