4 Door EP1502-Based PACS

System Overview

4 Door EP1502-Based Physical Access Control System

System Use

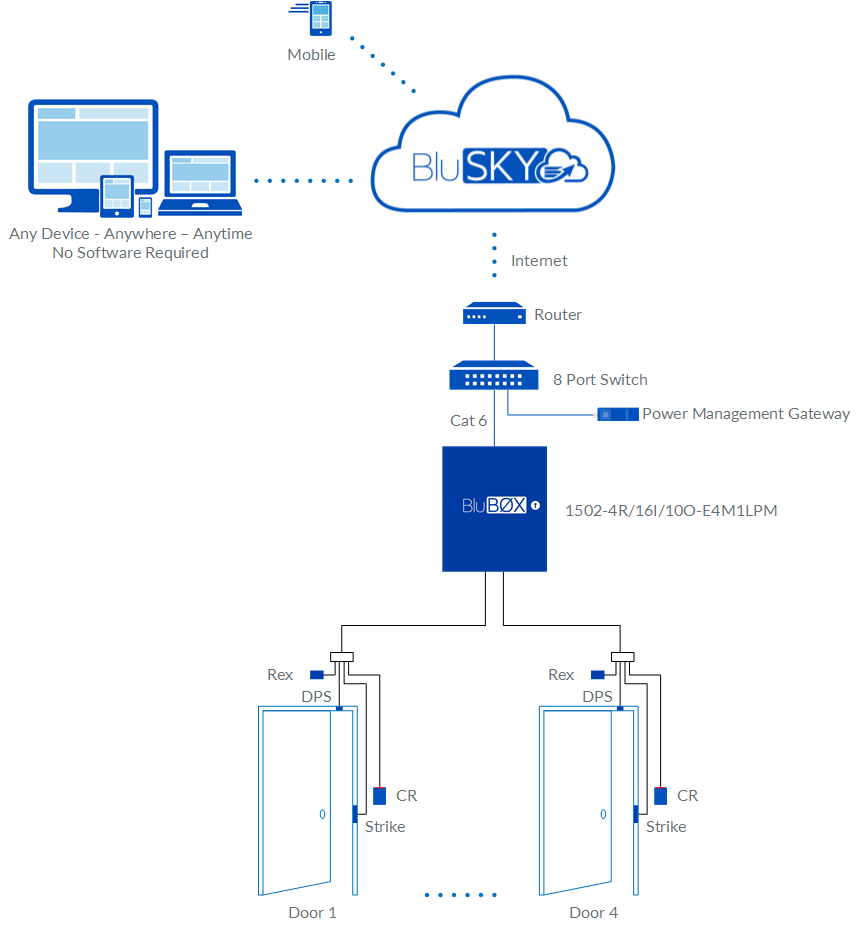

One Line System Diagram

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
752-6200 1502-4R/16I/10O-E4MLPM  Four reader system/Sixteen input/Ten output system w/ managed lock power and power management - Kit: 1 x EP1502 & 1 x MR52 w/ locking 8 door encl with tamp & wiring kit. Managed lock power/ Power mon & control. Expand to 8 readers with 2 x MR52. Included 1 $3,566.00 $3,566.00
160-2200 Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Included 4 $267.00 $1,068.00
400-1000 Router - CradlePoint MBR1200B Broadband Router Router - CradlePoint MBR1200B Broadband Router Included 1 $434.00 $434.00
410-1400 8 Port Unmanaged Gigabit Switch Switch - HP ProCurve Switch 1410-8G (J9559A) Included 1 $133.00 $133.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Included 1 $360.00 $360.00
320-1000 Card - HID iClass w/ slot - 26 bit, F/C 201 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Included 375 $4.30 $1,612.50
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 10 $97.00 $970.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 4 $182.00 $728.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 2 $97.00 $194.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 4 $146.00 $584.00

BluSKY Licenses

Part # Item Description Unit Qty Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY. per User  Included 200 $2.05 $409
*817-0120 User Photo & Badge Printing Capture and storage of user and vendor photos. Printing of  Photo-ID Badges.  Pre-requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. per User  Optional 200 $0.80 $0
817-0320 Access Control Per-Reader license - provides all the access control core functionality Per Reader  Included 4 $145.00 $580
817-1080 Power Management Per-Device Power Management License. Per Device per Facility Included 1 $200.00 $200
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. per System Included 1 10% of
other licenses
$119
817-1220 System Health System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  per System Included 1 5% of
other licenses
$60

MSRP Installed Cost

#Describe the costs

4_Door_EP1502-Based_PAC.pdf
