2 Door EP1501 - Based PACS

System Overview

2 Door EP1501 - Based Physical Access Control System

How to Quote

To learn about what to consider and how to quote an Access Control system, please visit:

Access Control - New System

Access Control - System Takeover

System Use

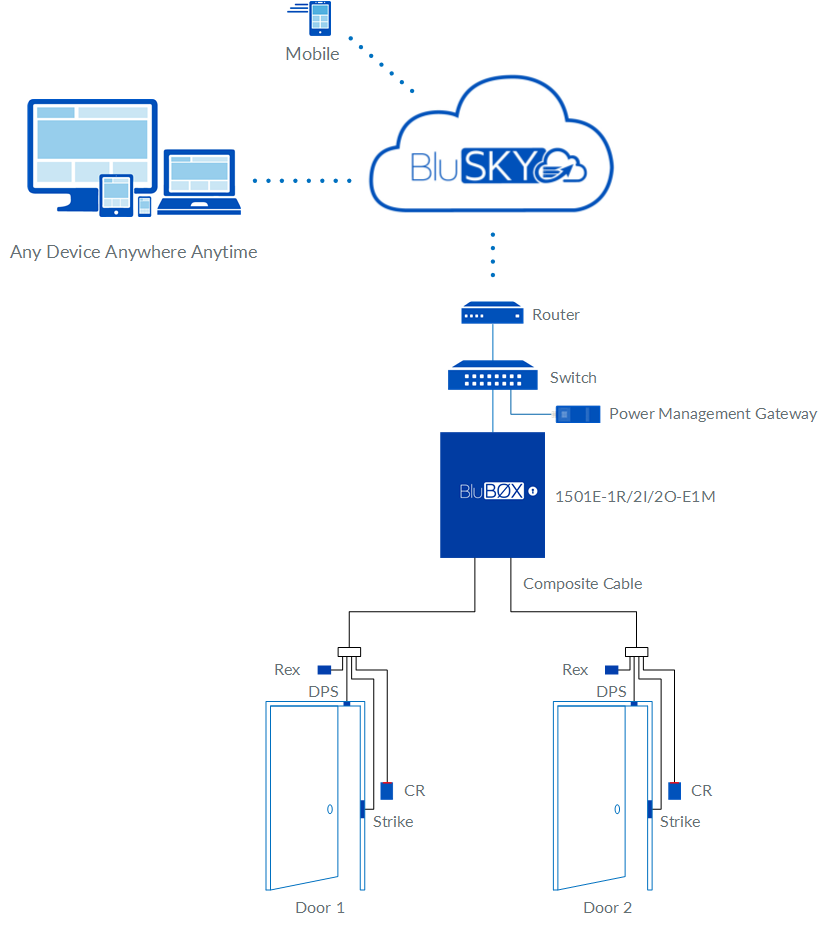

One Line System Diagram

BluBØX Equipment, Software and Professional Services

Part # Item Description Incl/Opt Qty Unit  Extended
752-2200 1501-2R/4I/4O-E2MLPM Two reader/Four input/Four output system w/ managed lock power and power management Included 1 $1,971 $1,971
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.
Included 1 $360 $360

*BluBØX provides 3 variants for each Access Control kit. The kit shown is recommended for new installations and provides integrated power supply, lock power, and power management. Less expensive options are available with power supply and lock power () or just power supply (). The Power Management Gateway is not required for these options.

Locks, readers, printers, credentials, exit devices and labor are not included.

BluSKY Licenses

Part # Item Description Unit Qty Incl/Opt Qty Unit  Extended
817-0100 Platform* Covers the use of the systems's infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smart phone.(BluREMOTE) Includes Photo-ID and Badge Printing.  per User  Included 100 $5.75 $575
817-1120 Intelligence* Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics.  % other Licenses Included 1 $300 $300
817-0320 Reader* Channel License for (1) Reader.  Per Reader  Included 2 $160 $320
817-0600 Alarm & Intrusion** Channel License for (1) Alarm Point (such as a door contact, motion detector, or panic button) that is declared in the BluSKY databases.  per Device Included 2 $30 $60
817-1080 Power Management Per-Device Power Management License. Per Device per Facility Included 1 $240 $240

*Required Licenses

**Alarm and Intrusion is not required when there are no door contacts or other such alarm points to monitor.
