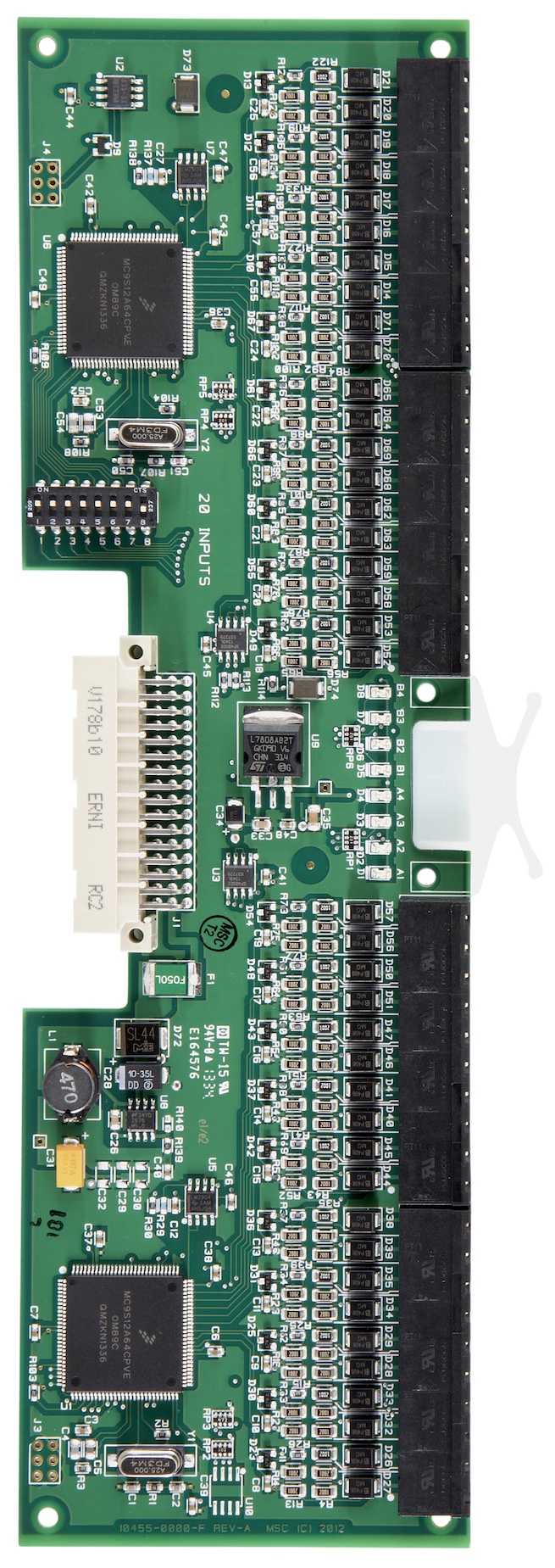

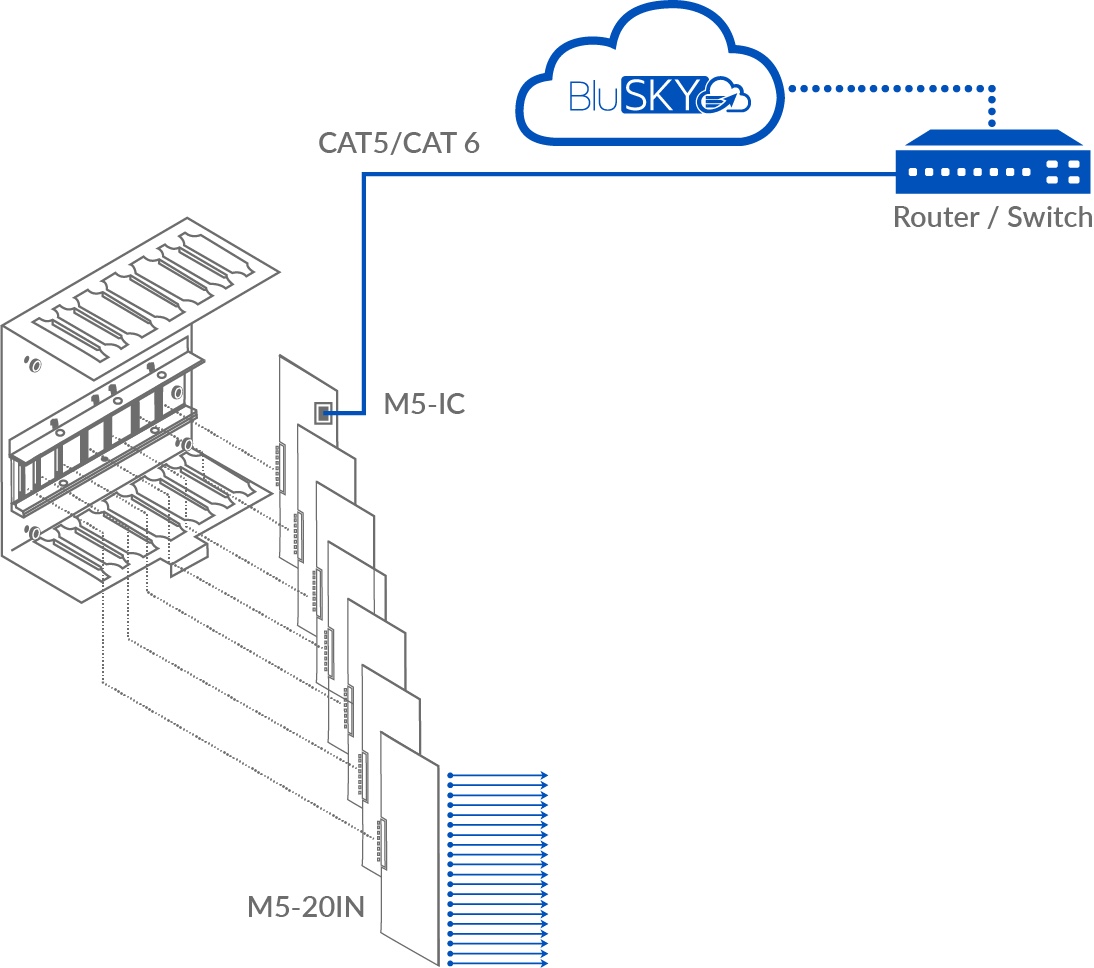

Mercury M5-20IN

M5-20IN is a multi-device interface panel for the replacement of the Casi 20DI input control device. As with the entire Mercury M5 Bridge family of controllers, the M5-20IN is built with a matching form factor to the Casi Micro 5 line of access control hardware allowing a fast “screwdriverless” change over and easy migration of a Casi client to any Authentic Mercury software partner.

Built to provide the ability to monitor high concentrations of inputs, this panel offers support for 20 general purpose input circuits capable of being individually set for normally-open or normally closed operations and can be declared supervised and non-supervised. Individually configurable parameters can be set for sensitivity ranges, timing parameters and end-of-line resistance values. The M5-20IN provides the capacity to link, control and respond to an array of sensors.

Application Notes

The M5-20IN is an integral component in the Mercury M5 Bridge family approach to migrate any Micro 5 installation to the flexible, feature rich Mercury access hardware. This ensures the customer an Open future based on Authentic Mercury controllers.


Features
  • 20 programmable inputs
  • Plug for plug compatibility to Casi 20DI
  • AES 128 bit data encryption
  • Universal I/O device Characterization
  • Configurable input parameters
Benefits
  • Built-in capacity to control, respond to external device commands
  • Easily integrates lighting, heating/cooling, door or elevator control sensors
  • Initiate commands by operator, by time schedules, or by events
  • Built on the Open Authentic Mercury platform

Mercury M5-20IN


Specifications

Primary Power (from M5-IC):
  •  12Vdc +/-10%, 165 mA maximum
Inputs:
  •  20 unsupervised/supervised, standard EOL: 1K/1K ohm,
    1%, 1/4 wat
Communication:
  • Back plane supplied 9600, 19200, 38400, or 115200 bps, asynchronous
Cable Requirements:
  • Alarm inputs: 1 twisted pair, 30 ohms maximum
Temperature:
  • Storage -55 to 85 °C
  • Operating 0 °C to +50 °C



Humidity:

  • 5 to 95 % RHNC
Standards:
  • UL 294 Recognized
  • CE Compliant
  • RoHS
Size and Weight:
  • 0.69”H x 3.5”W x 10.25”L | 4oz. (w/o connectors)

Part Number:

MFG Part # BluBØX Order # Description
M5-20IN 125-1500 Mercury M5-20IN Multi Device Interface Panel Replaces Casi 20DI
