4 Car DDE PACS - Readers Connected to DDE System

System Overview

4 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to DDE System

System Use

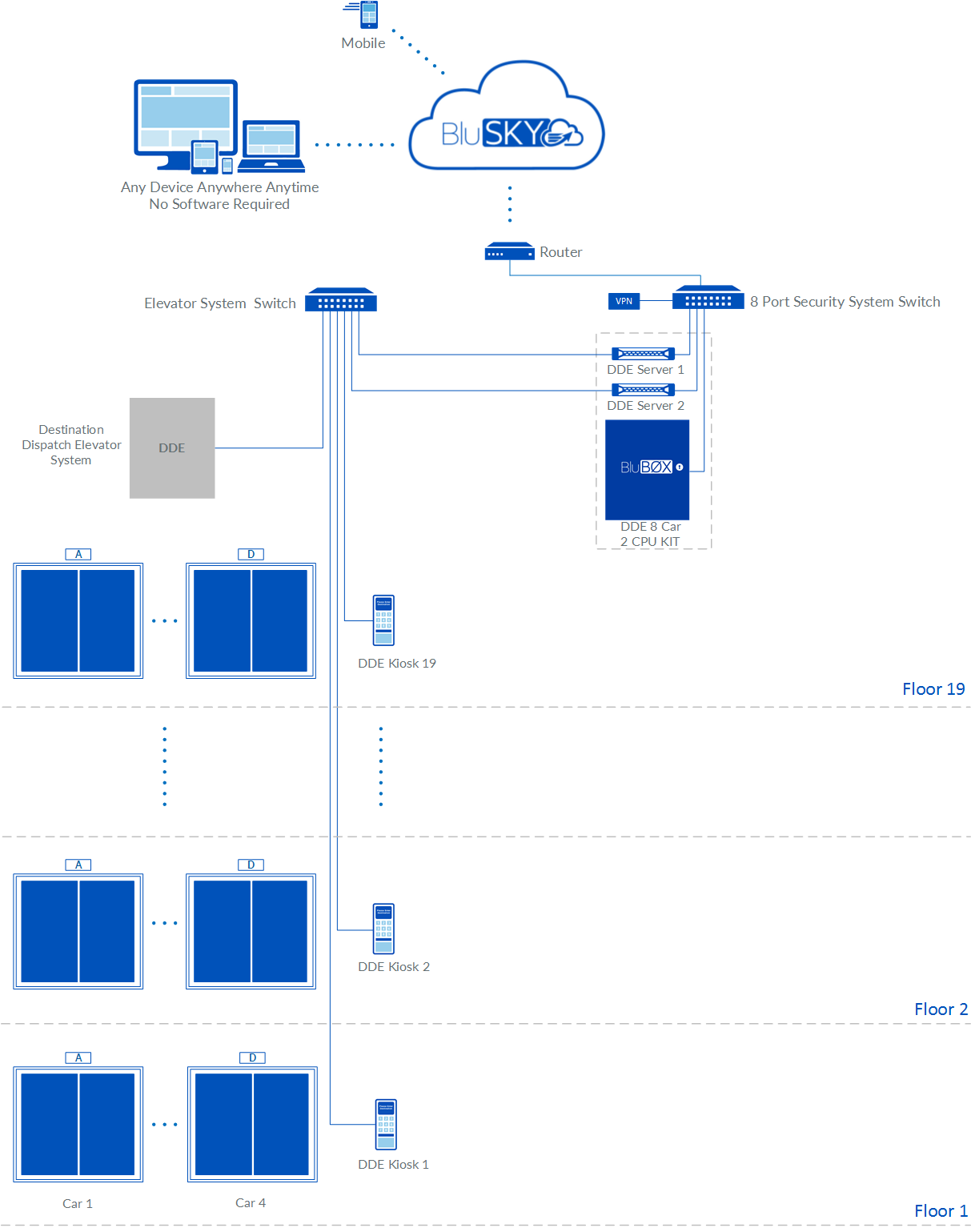

One Line System Diagram

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
770-2000 4 Car - 2 CPU DDE Kit Destination Dispatch Processor Kit - Up to 4 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. Included 1 $17,500.00 $17,500.00
670-1463 FPO150-B100D8PM8PNL4E4M1  w P/S BluB0X E4M1 Enclosure - 24x20x4.5 - w/an FPO150-B100D8PM8PNL4 4A/12V & 8A/24V dual Power Supply, w/ 8 Class II, and an 8 channel lock control.  Included 1 $1,075.00 $1,075.00
160-2200 Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Included 19 $266.00 $5,054.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Included 1 $360.00 $360.00
400-1000 Router - CradlePoint MBR1200B Broadband Router Router - CradlePoint MBR1200B Broadband Router Included 1 $434.00 $434.00
410-1400 8 Port Unmanaged Gigabit Switch Switch - HP ProCurve Switch 1410-8G (J9559A) Included 1 $132.00 $132.00
320-1000 Card - HID iClass w/ slot - 26 bit - QTY 50 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Included 20 $214.00 $4,280.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 32 $97.00 $3,104.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 30 $182.00 $5,460.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 8 $97.00 $776.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 16 $145.00 $2,320.00
800-5125 DDE Destination Dispatch Installation Support - FLAT RATE Destination Dispatch Installation - Professional Support - FLAT RATE Included 1 $2,966.00 $2,966.00



BluSKY Licenses

Part # BluSKY License Description Unit Quantity Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY. Based on number of ACTIVE users in the database, excluding deleted and suspended.  Pre-equisite for any other BluSKY license. per User  Included 750 $1.12 $841.00
817-0140 VPN VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers.   per System Included 1 $450.00 $450.00
817-0320 Reader Per-Reader license - provides all the access control core functionality Per Reader  Included 19 $145.00 $2,755.00
817-0780 DDE License based on # of elevators - License covers the on-going integration and support of a DDE system. per Elevator Included 1 $3,000.00 $3,000.00
817-1080 Power Management Per-Device Power Management License. Per Device per Facility Included 1 $200.00 $200.00
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $724.60 $724.60
817-1220 System Health System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $362.30 $362.30



MSRP Installed Cost

4_Car_DDE_PACS_Readers_Connected_to_DDE.
