28 Car DDE PACS - Readers Connected to DDE System

System Overview

28 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to DDE System

System Use

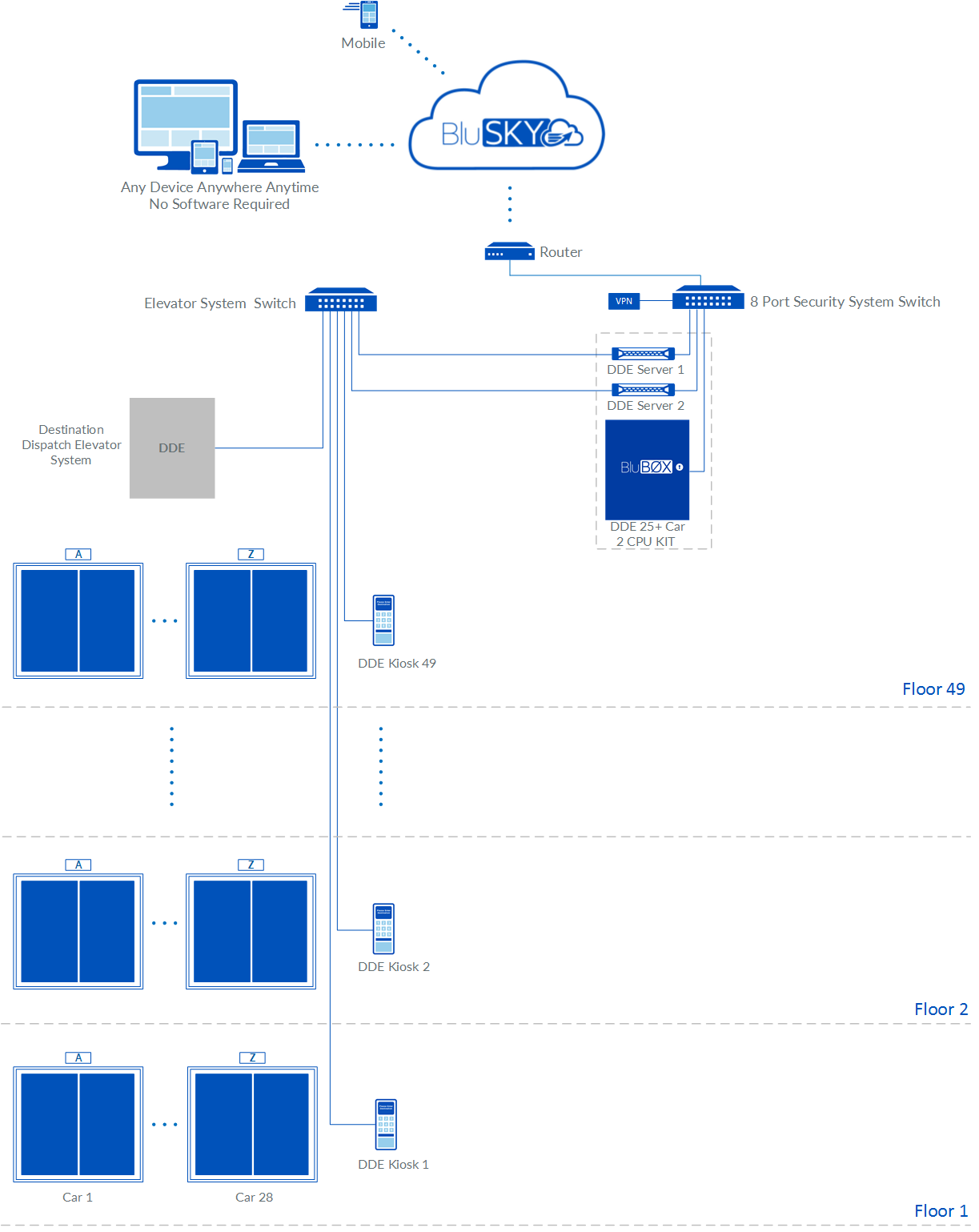

One Line System Diagram

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
770-2025 25+ Car - 2 CPU DDE Kit Destination Dispatch Processor Kit - 25 Elevator Cars or More - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. Included 1 $42,500.00 $42,500.00
670-1463 FPO150-B100D8PM8PNL4E4M1  w P/S BluB0X E4M1 Enclosure - 24x20x4.5 - w/an FPO150-B100D8PM8PNL4 4A/12V & 8A/24V dual Power Supply, w/ 8 Class II, and an 8 channel lock control.  Included 1 $1,075.00 $1,075.00
160-2200 Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Included 49 $266.00 $13,034.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Included 1 $360.00 $360.00
400-1000 Router - CradlePoint MBR1200B Broadband Router Router - CradlePoint MBR1200B Broadband Router Included 1 $434.00 $434.00
410-1400 8 Port Unmanaged Gigabit Switch Switch - HP ProCurve Switch 1410-8G (J9559A) Included 1 $132.00 $132.00
320-1000 Card - HID iClass w/ slot - 26 bit - QTY 50 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Included 120 $214.00 $25,680.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 80 $97.00 $7,760.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 78 $182.00 $14,196.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 32 $97.00 $3,104.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 30 $145.00 $4,350.00
800-5125 DDE Destination Dispatch Installation Support - FLAT RATE Destination Dispatch Installation - Professional Support - FLAT RATE Included 1 $2,966.00 $2,966.00



BluSKY Licenses

Part # BluSKY License Description Unit Quantity Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY. Base on number of ACTIVE users in the database, excluding deleted and suspended.  Pre Requisite for any other BluSKY license. per User  Included 4,000 $0.63 $2,532.00
817-0140 VPN VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers.   per System Included 1 $450.00 $450.00
817-0320 Access Control Per-Reader license - provides all the access control core functionality Per Reader  Included 49 $101.39 $4,968.00
817-0780 DDE License based on # of elevators - License covers the on-going integration and support of a DDE system. Fixed Price up to X Elevators Included 1 $3,000.00 $3,000.00
817-1080 Power Management Per-Device Power Management License. Per Device per Facility Included 1 $200.00 $200.00
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $1,115.00 $1,115.00
817-1220 System Health System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $557.50 $557.50



MSRP Installed Cost

#Describe the costs

28_Car_DDE_PACS_Readers_Connected_to_DDE.​​
