20 Car DDE PACS - Readers Connected to Security System
System Overview
20 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to Security System
System Use

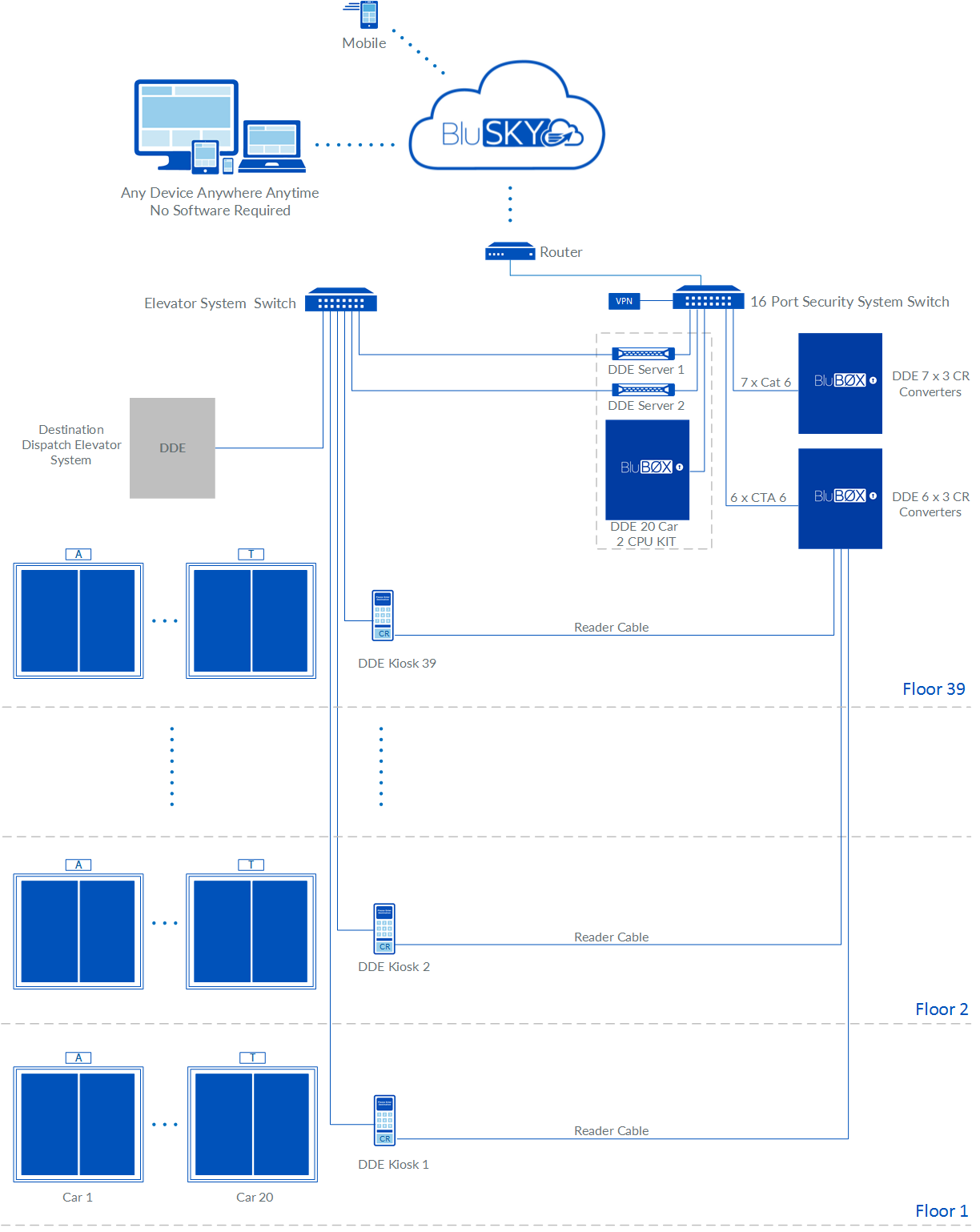

One Line System Diagram
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 770-2017 | 20 Car - 2 CPU DDE Kit | Destination Dispatch Processor Kit - Up to 20 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. | Included | 1 | $35,334.00 | $35,334.00 |
| 670-1463 | FPO150-B100D8PM8PNL4E4M1 w P/S | BluB0X E4M1 Enclosure - 24x20x4.5 - w/an FPO150-B100D8PM8PNL4 4A/12V & 8A/24V dual Power Supply, w/ 8 Class II, and an 8 channel lock control. | Included | 1 | $1,075.00 | $1,075.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 39 | $267.00 | $10,413.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Included | 1 | $434.00 | $434.00 |
| 410-1400 | 8 Port Unmanaged Gigabit Switch | Switch - HP ProCurve Switch 1410-8G (J9559A) | Included | 1 | $133.00 | $133.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. |
Included | 1 | $360.00 | $360.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit, F/C 201 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 4,500 | $4.30 | $19,350.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 64 | $97.00 | $6,208.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 62 | $182.00 | $11,284.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 24 | $97.00 | $2,328.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 30 | $146.00 | $4,380.00 |
| 800-5125 | DDE Destination Dispatch Installation Support - FLAT RATE | Destination Dispatch Installation - Professional Support - FLAT RATE | Included | 1 | $2,966.00 | $2,966.00 |
BluSKY Licenses
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. Base on number of ACTIVE users in the database, excluding deleted and suspended. Pre Requisite for any other BluSKY license. | per User | Included | 3,000 | $0.69 | $2,074.00 |
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450.00 |
| 817-0320 | Access Control | Per-Reader license - provides all the access control core functionality | Per Reader | Included | 39 | $111.01 | $4,330.00 |
| 817-0780 | DDE | License based on # of elevators - License covers the on-going integration and support of a DDE system. | Fixed Price up to X Elevators | Included | 1 | $3,000.00 | $3,000.00 |
| 817-1080 | Power Management | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $200.00 | $200.00 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | % other Licenses | Included | 1 | $1,005.40 | $1,005.40 |
| 817-1220 | System Health | System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | % other Licenses | Included | 1 | $502.70 | $502.70 |
Download the pdf: 20 Cars_39 DDE KP Rev 02.pdf
