16 Car DDE PACS - Readers Connected to Security System
System Overview
16 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to Security System
System Use

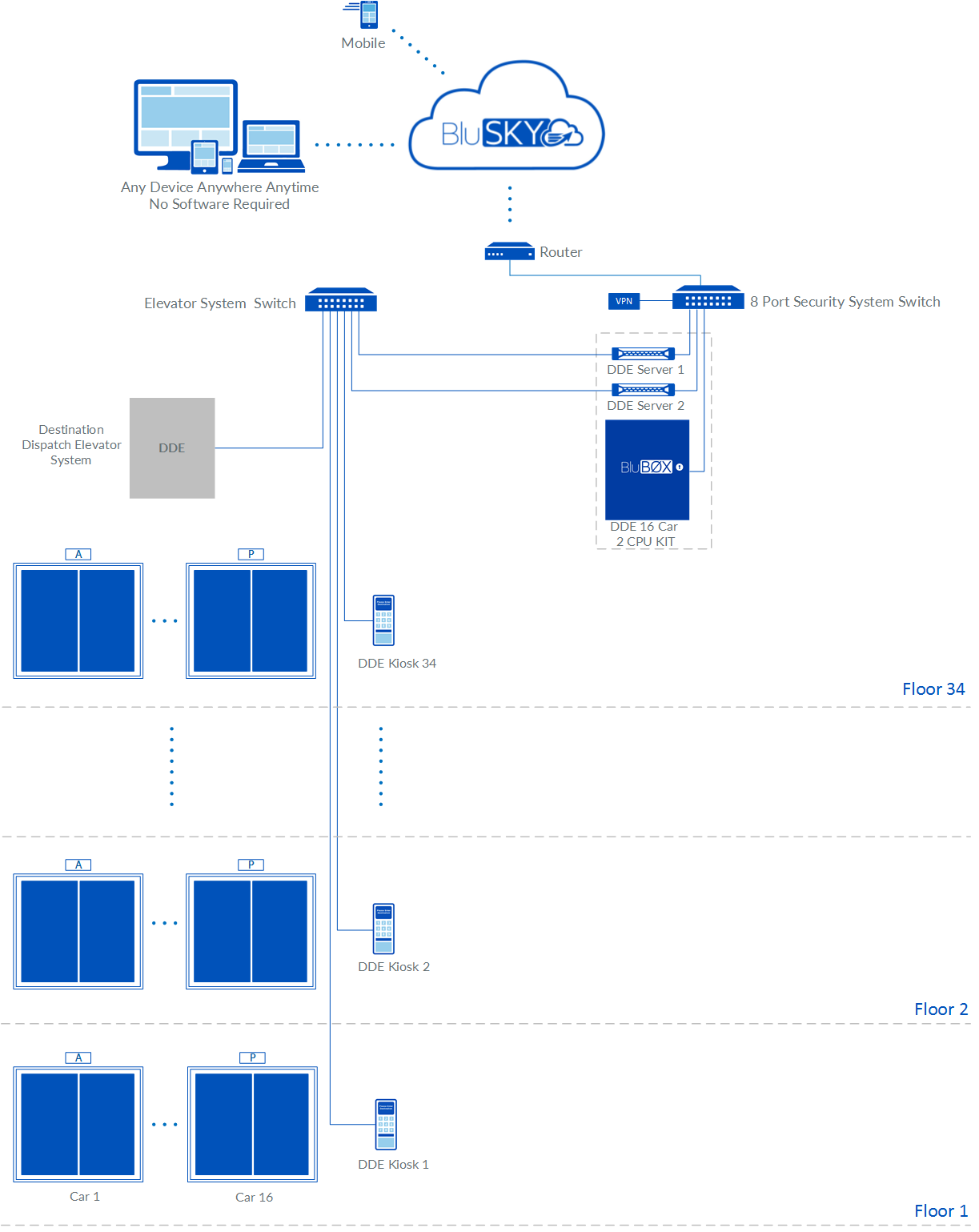

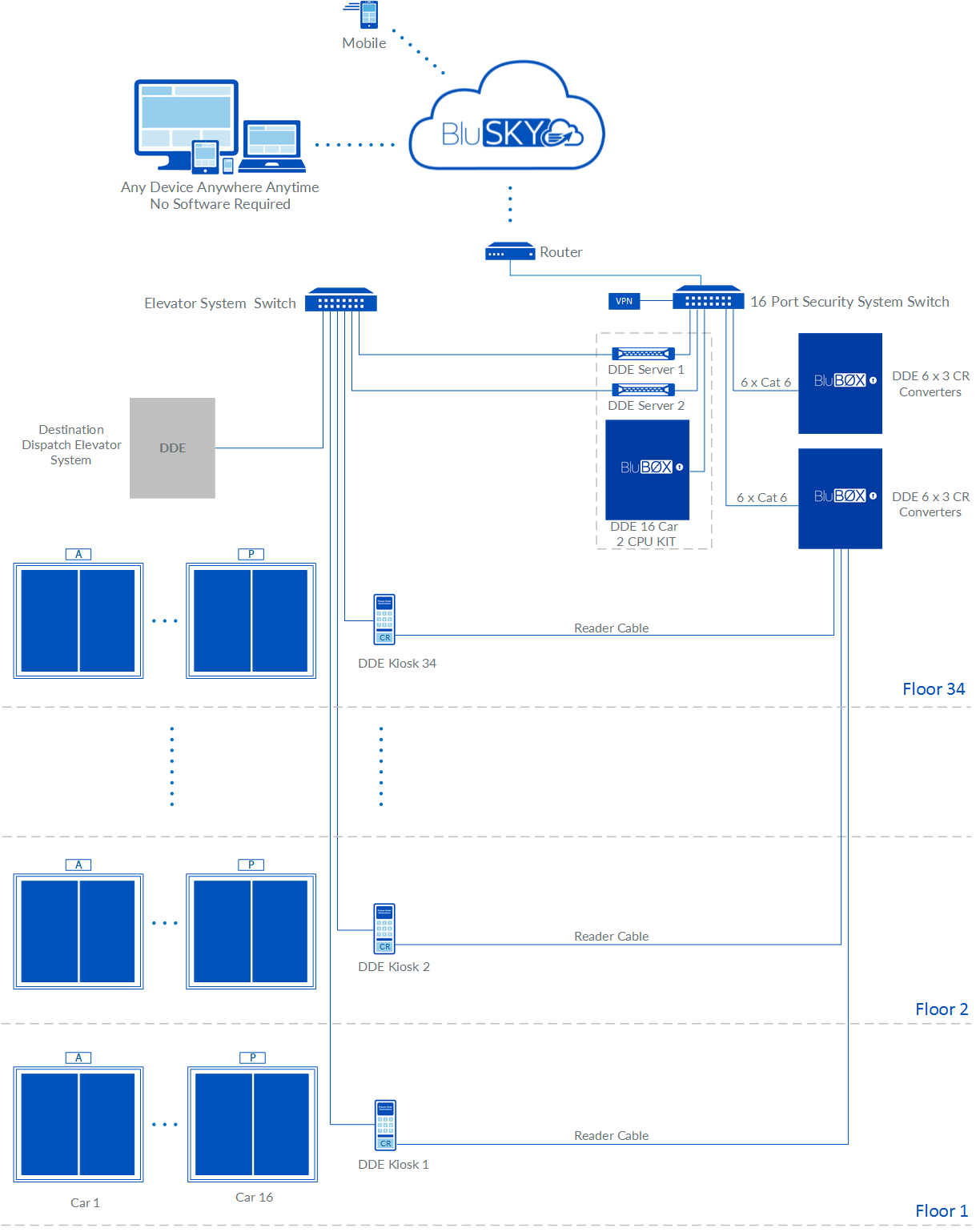

One Line System Diagram
Download the pdf: 16 Cars_34 DDE KP Rev 02.pdf
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360.00 | $360.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit, F/C 201 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 2,750 | $4.29 | $11,797.50 |
| 770-5200 | Destination Dispatch Converter - 3 Readers | Destination Dispatch Converter -Three Readers (centralized - mounts in EMR) - (Requires an enclosure and power supply) | Included | 12 | $650.00 | $7,800.00 |
| 770-2015 | 16 Car - 2 CPU DDE Kit | Destination Dispatch Processor Kit - Up to 16 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. | Included | 1 | $32,334.00 | $32,334.00 |
| 670-1463 | FPO150-B100D8PM8PNL4E4M1 | LSP FPO150-B100D8PM8PNL4E4M1 4A/12V & 8A/24V 8 Class II / 8 lock | Included | 1 | $1,075.00 | $1,075.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 34 | $267.00 | $9,078.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Included | 1 | $434.00 | $434.00 |
| 410-1400 | 8 Port Unmanaged Gigabit Switch | Switch - HP ProCurve Switch 1410-8G (J9559A) | Included | 1 | $133.00 | $133.00 |
| 800-5125 | Destination Dispatch Installation - Professional Support - FLAT RATE | Destination Dispatch Installation - Professional Support - FLAT RATE | Included | 1 | $2,966.00 | $2,966.00 |
BluSKY Licenses
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. | per User | Included | 2,500 | $0.50 | $1,250 |
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450 |
| 817-0320 | Access Control | Per-reader license - provides all the access cpontrol core functionality | Per Reader | Included | 34 | $83.75 | $2,848 |
| 817-0780 | DDE | On-going integration and support of a DDE system. | per Elevator per Facility | Included | 1 | $3,000.00 | $3,000 |
| 817-1080 | Power Management | Per-Device Power Management License. Requires 817-1060 Power Management license. | Per Device per Facility | Included | 1 | $200.00 | $200 |
| 817-1120 | Intelligence | core rules/intelligence functionality to all BluSKY modules including simple and complex rule creation and analytics, events, notifications and distributuion lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | per System | Included | 1 | % of other licenses | $775 |
| 817-1220 | System Health | core system health functionality including monitoring of BluSKY / BluCHIP software, hardware, database, security, power and communications. Also includes intelligent analytics, intelligent rules, events, notifications and distributuion lists integration. | per System | Included | 1 | % of other licenses | $388 |
MSRP Installed Cost
#Describe the costs
#pdfs
Commentary
