24 Car Alternate DDE PACS - Readers Connected to Security System

System Overview

24 Car Alternate Destination Dispatch Elevator Physical Access Control System - Readers Connected to Security System

System Use

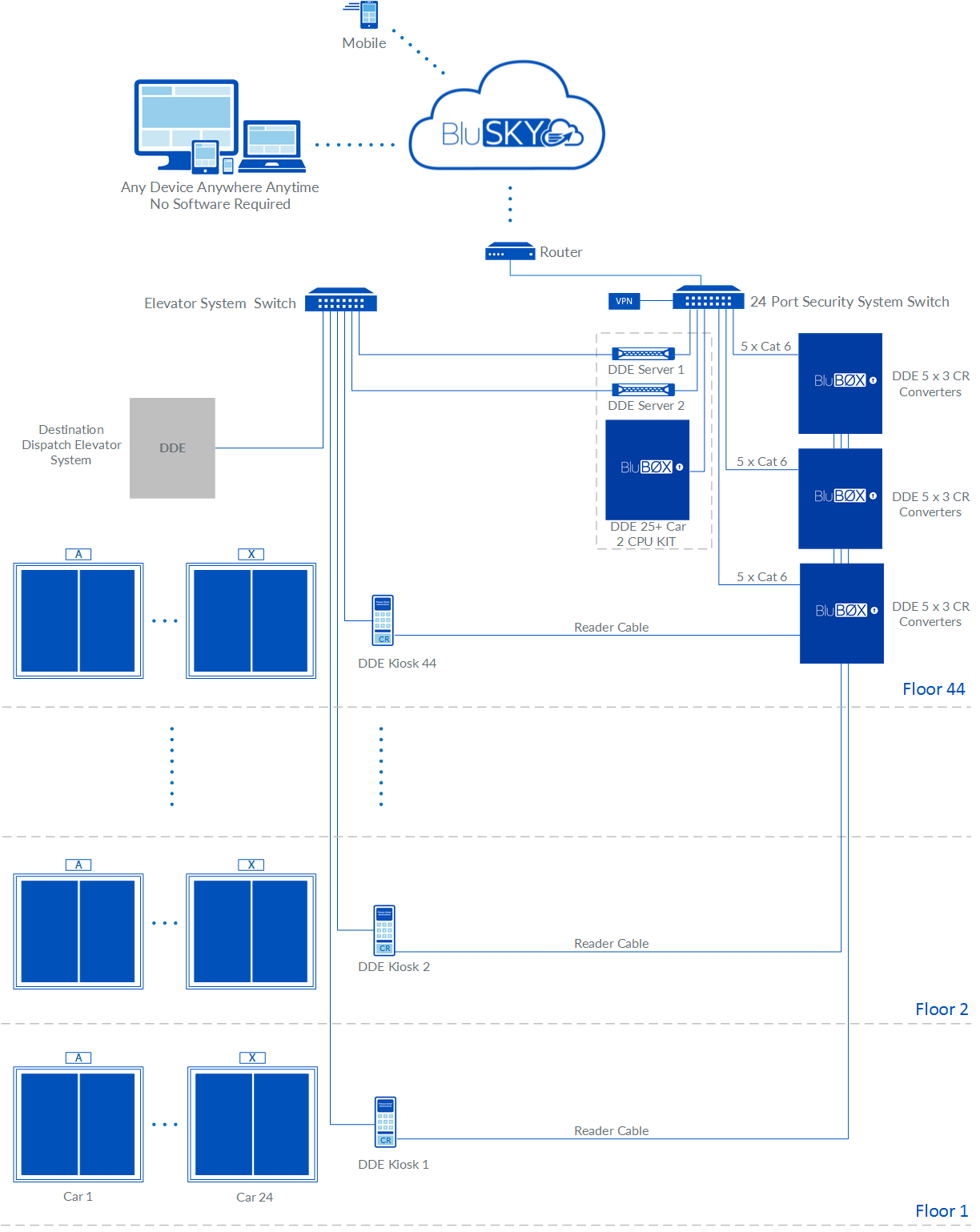

One Line System Diagram


 Click to Enlarge

Download the pdf:

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
770-2020 24 Car - 2 CPU DDE Kit Destination Dispatch Processor Kit - Up to 24 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. Included 1 $37,500.00 $37,500.00
770-5600 Converter - 15 Reader kit - w/ FPO150-B100D8PM8PNL4E4M1-NLKIT Converter Kit - Supports 6 Readers - Includes an E4M1 Enclosure with power and power management.  Needed for DDE or Person Reader Applications Included 6 $3,144.00 $18,864.00
160-2200 Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Included 88 $266.00 $23,408.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Included 1 $360.00 $360.00
400-1000 Router - CradlePoint MBR1200B Broadband Router Router - CradlePoint MBR1200B Broadband Router Optional 1 $434.00 $0.00
410-1500 24 Port Managed Gigabit Switch - RM Switch - HP ProCurve Switch 2920-24G (J9726A) Included 1 $2,363.00 $2,363.00
320-1000 Card - HID iClass w/ slot - 26 bit - QTY 50 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Included 90 $214.00 $19,260.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 72 $97.00 $6,984.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 70 $182.00 $12,740.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 24 $97.00 $2,328.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 30 $145.00 $4,350.00
800-5125 DDE Destination Dispatch Installation Support - FLAT RATE Destination Dispatch Installation - Professional Support - FLAT RATE Included 1 $2,966.00 $2,966.00



BluSKY Licenses

Part # BluSKY License Description Unit Quantity Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY.  Based on number of ACTIVE users in the System's database, excluding deleted and suspended.  Pre-requisite for any other BluSKY license. per User in a System Included 3,500 $0.66 $2,307.00
817-0140 VPN VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers.   per System Included 1 $450.00 $450.00
817-0320 Reader Required for every reader Per Reader  Included 88 $82.17 $7,231.00
817-0780 DDE Interface to a Destination Dispatch Elevator (DDE) System License.  Covers the on-going integration and support of a DDE interface. per Elevator Included 1 $3,000.00 $3,000.00
817-1080 Power Management Power Management. per Device  Included 1 $200.00 $200.00
817-1220 System Health Monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications.  Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $659.40 $659.40
817-0520 System Analytics Statistical analysis of all access control, alarm, video, vendor, DDE, visitor & incident events - displays the analytics, including counting, binning, trending, pattern recognition, correlation analysis and unusual event detection. Integrates with RND. % other Licenses Included 1 $1,318.80 $1,318.80
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $2,637.60 $2,637.60



MSRP Installed Cost

#Describe the costs

24_Car_DDE_PACS-Readers_Connected_to_Security_System-02.pdf
