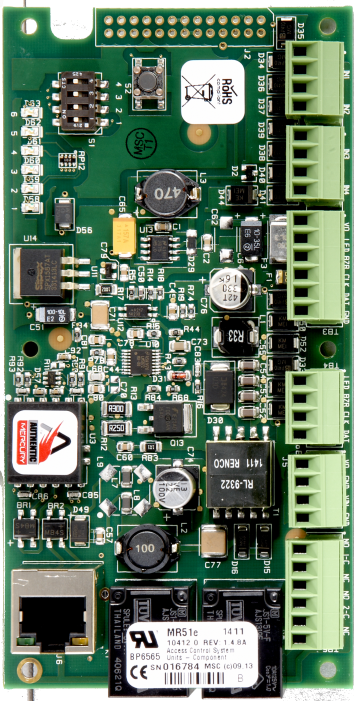

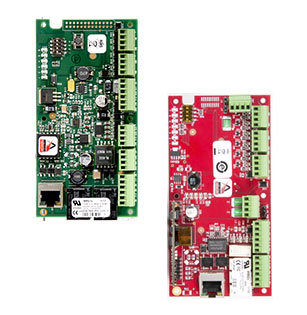

Mercury MR51e & MR62e Serial I/O Controllers
Mercury’s MR51e & MR62e SIO Access Platform is a network connected, single-door, POE capable interface panel that provides an ideal integration solution when a network connection to the door is desired.
Two reader ports support separate in/out readers of all types and technologies, including Wiegand, clock and data, magnetic stripe, F/2F, Supervised F/2F, keypads, LCD and biometrics. Auto-addressable and directly managed by the Mercury intelligent controllers, the MR51e & MR62e SIO are capable of elaborate processes and procedures without host intervention
Application Notes
Built on the Mercury Access Platform, the MR51e & MR62e SIO will relate the activities of selected system devices to other devices within the system, generating actions and allowing activities to transpire independently of the host. The MR51e’s support of paired readers enhances the ability to meet installation challenges, such as placing readers at varying heights or distances to accommodate ingress and egress of handicapped, vehicle and/or foot traffic. These readers can be logically linked together, yet function independently when access identification is presented to either one. When access rights are granted the same relay will function as programmed to unlock the opening
- Multi-facility code support
- Multi-reader technology support
- PoE enabled
- Auto-addressable
- AES 128 bit data encryption
- UL 294 and UL 294B Recognized
- OSDP support
- Universal I/O device characterization
- IP-to-the-Door
- Security and Network
- Card Reader Functions
- Open Architecture
- IP-to-the-Door
- OSDP Protocol
- Enhanced Security
- Versatile Interoperability
- Economical
- Network enabled and web configured, providing greater flexibility to installers
- Highly adaptable to a variety of sensors and reader technologies
- Supports Wiegand, clock and data, magnetic stripe, F/2F, Supervised F/2F, keypads, LCD and biometrics
-
IPv4/6
-
Intelligent controller to 62e communications protected by TLS 1.2/1.1 or AES-256/128
-
Generate and load custom peer certificates for TLS
-
FIPS 140-2 user of OpenSSL
-
Port-based network access control using 802.1X
-
Zerconf Device Discovery (mDNS)
-
Edge-capable input/output module supporting PoE+ power
- Provides up to 1.5 A of power at door for reader, lock and more
-
OSDP Readers Only
-
Supports multiple card formats, paired and alternate readers, elevator, turnstile and biometric devices
-
Anti-passback support (area, reader and time based)
-
Programmable keypad user commands
- High performance, reliable platform enables use of hardware with Mercury OEM partners’ software solutions
- Supports PoE+ power, removing the cost of traditional power supplies and homerun wiring
- Supports OSDP and Secure Channel communications
- Embedded crypto memory chip provides secured layer of encryption to protect sensitive data
- Same reliable interface and identical footprint as the Series 2 Mercury IO modules, enabling seamless upgrades for existing deployments
System Diagram
Specifications
The interface is for use in low voltage, class 2 circuits only.
Power Input:
PoE Power Input 12.95W, compliant to IEEE 802.3af – OR --10 – 14VDC Power Supply
Power Output:
12VDC @ 700mA including reader andAUX output
Outputs:
Form-C contacts: K1, K2: 5A @ 30Vdc
Inputs:
4 supervised, End of Line resistors, 1k/1k ohm, 1% 1/4W watt standard
Reader Power:12 VDC ±10% (PTC limited 180mA max)
Reader LED Output: 12 Vdc±10% (PTC limited 180mA max)
Buzzer Output: Open collector, 5VDC open circuit max 10mA sink maximum
Reader Data Inputs: TTL compatible inputs or 2-wire RS-485
Communication: Ethernet, 10Base-T/100Base-TX
Cable Requirements: Ethernet, 10Base-T/100Base-TX
Alarm Inputs:
1 twisted pair per input, 30-ohm maximum
Reader Data (TTL): 18AWG, 6 conductors, 500-foot (150 m) maximum
Reader Data:(RS-485): 24AWG, 120-ohm impedance, twisted pair with shield, 2000- foot (1,219 m) maximum
Dimensions: 5.5” (140mm)W x 2.75”(70mm)
Weight: 4.2 oz. (120g) without bracket
Temperature:0-70°C operational, -55-85°C storage
Humidity:0-95% RHNC
Standards: UL 294 and UL 294B Recognized, CE Compliant, ROHS, FCC Part 15 Class A, NIST Certified Encryption
Ordering Information:
| MFG Part # | BluBØX Order # | Description |
|---|---|---|
| MR51e | 120-2400 | Mercury - MR51e One Door Controller Ethernet PoE/12V |
| MR62e | XXXX | Mercury - MR51e One Door Controller Ethernet PoE/12V |
