Medium Mercury-Based System Takeover
System Overview
Medium Mercury-Based System Takeover
System Use

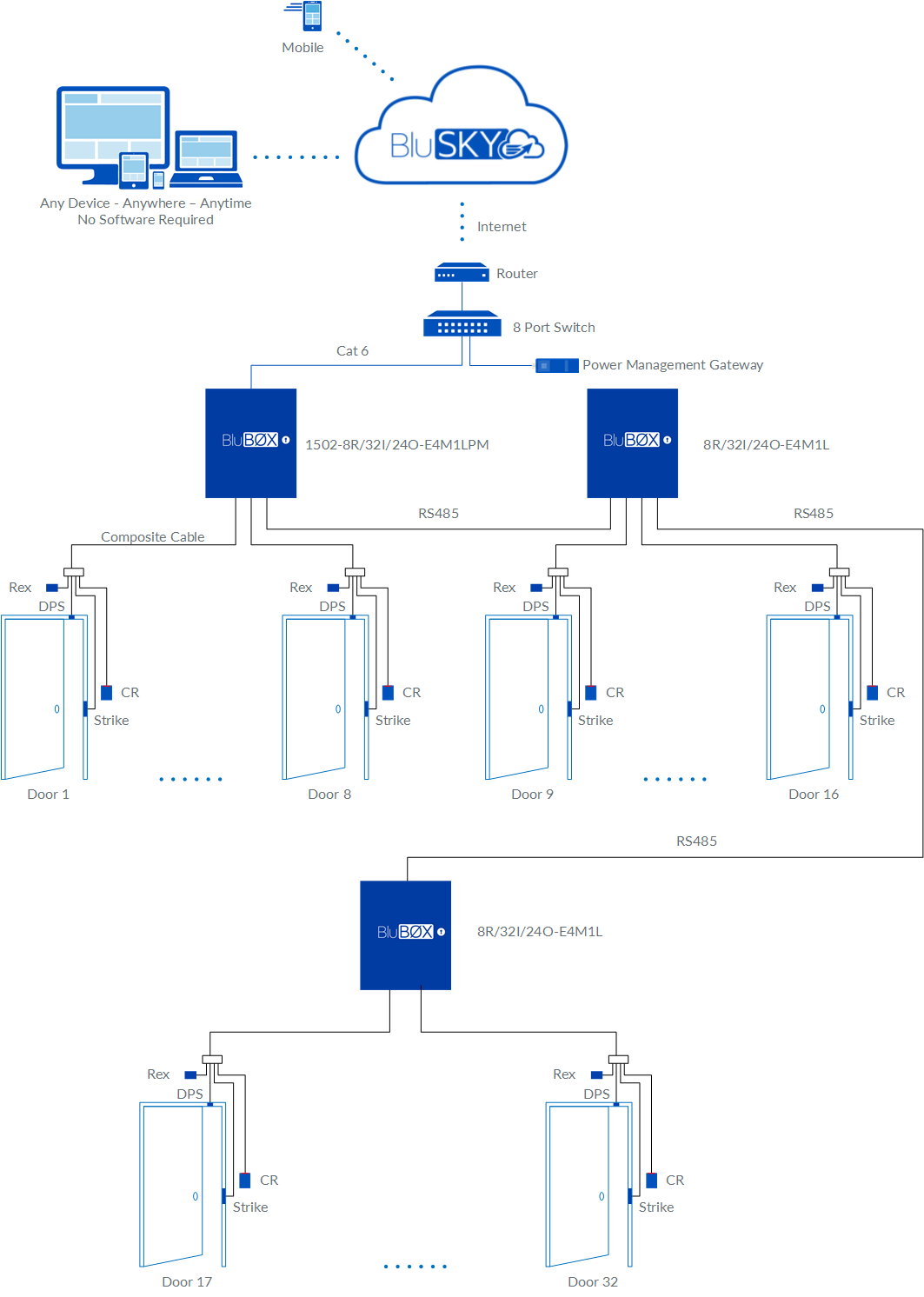

One Line System Diagram
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 670-1475 | FPO150-B100C8PD8PE4M1 | BluB0X E4M1 Enclosure - 24x20x4.5 - w/an FPO150-B100C8PD8P 4A/12V & 4A/24V dual voltage Power Supply, w/ an 8 channel lock control, and an 8 channel power distributor | Optional | 1 | $890.00 | $0.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. |
Optional | 1 | $360.00 | $0.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit - QTY 50 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Optional | 30 | $214.00 | $0.00 |
| 815-2010 | Conv-1502 | Board Conversion Fee - Mercury EP1502 Two Door DB Controller | Included | 1 | $700.00 | $700.00 |
| 815-2030 | Conv-MR52 | Board Conversion Fee - Mercury MR52 Two Door SIO | Included | 15 | $176.00 | $2,640.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 16 | $97.00 | $1,552.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 10 | $182.00 | $1,820.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 4 | $97.00 | $388.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 12 | $145.00 | $1,740.00 |
BluSKY Licenses
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. Based on number of ACTIVE users in the System's database, excluding deleted and suspended. Pre-requisite for any other BluSKY license. | per User in a System | Included | 1,000 | $1.00 | $1,000.00 |
| 817-0120 | Photo ID Badging | Capture and storage of user and vendor photos and printing of Photo-ID Badges. Pre-Requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. | per User in a System | Optional | 1,000 | $0.54 | $0.00 |
| 817-0320 | Reader | Required for every reader | Per Reader | Included | 32 | $120.65 | $3,861.00 |
| 817-1080 | Power Management | Power Management. | per Device | Optional | 1 | $200.00 | $0.00 |
| 817-1220 | System Health | Monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | % other Licenses | Included | 1 | $243.05 | $243.05 |
| 817-0520 | System Analytics | Statistical analysis of all access control, alarm, video, vendor, DDE, visitor & incident events - displays the analytics, including counting, binning, trending, pattern recognition, correlation analysis and unusual event detection. Integrates with RND. | % other Licenses | Included | 1 | $486.10 | $486.10 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | % other Licenses | Included | 1 | $972.20 | $972.20 |
