LifeSafety Power FPO150-B100C8PD8PE4M1
Click to download> LifeSafety Power FPO150-B100C8PD8PE4M1.pdf

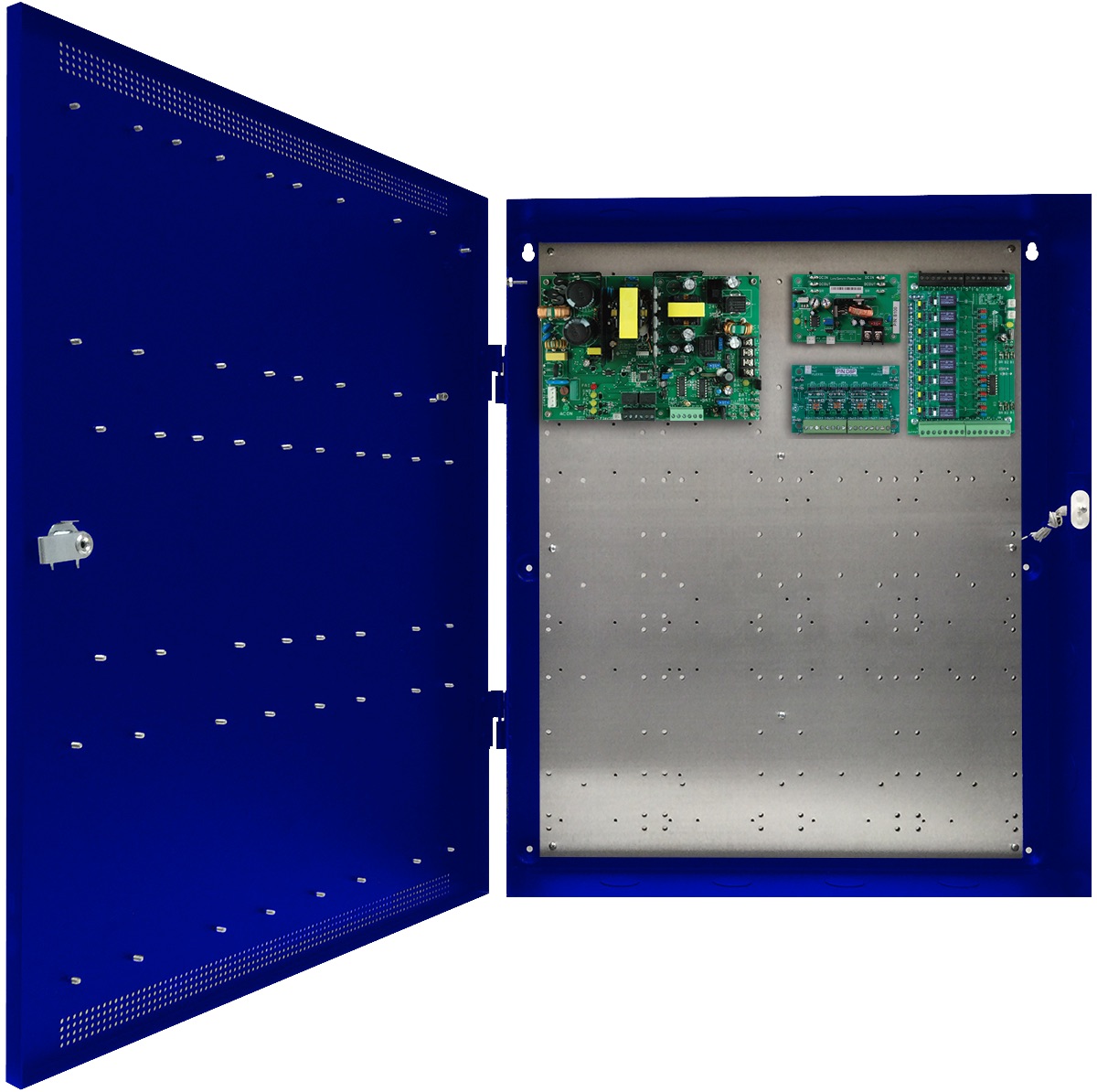

LifeSafety Power Eight Door Power Supply w/ Power Distribution, Includes Enclosure
The LifeSafety Power FPO150-B100C8PD8PE4M1 an Eight Door Power Supply with Power Distribution and an enclosure. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes a locking eight door enclosure with tamper, power supply and wiring speed kit. Local managed lock power is included. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.
System Features
FPO offline power supply- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On board Fire Alarm Interface
- Continuous and resettable DC
- Four, controlled fused at 3A each
- Eight, auxiliary Class II P limited at 2.5A each
- Increased power, multiple voltages
- Additional distribution outputs
- Power management
Enclosure Features
Labor saving design- Unified power and security in one enclosure
- Pre-wired power section
- Removeable backplate simplifies installs
- Speed kit is included for power and data wiring
- Includes mounting studs on door to add additional I/O boards.
- Wire management room
- 4.5” enclosure depth fits battery set
- Tamper switch, lock, dual key set standard
- Mounting hardware for access boards included
Specification
Input Power:
- Input 120/230VAC 50/60Hz | 200 Watts
- Overload and short circuit protection
- Over temperature protection
- Polarized AC power supply disconnect
- 150W Total Output Power | 12VDC/6A or 24VDC/6A
- 5-18VDC @ 4A Max. | FPO Board Outputs: Continuous (DC1), Resettable (DC2)
- 8 Lock Outputs, 8 Auxiliary Outputs, Class 2 PL @ 2.5A
- 120mV Output Voltage Ripple | System Efficiency: 88% | System BTU Rating: 66 BTU/Hr
- Independent built-in 2A (FPO150) Charger for sealed leadacid or gel type batteries
- Microprocessor dual rate charging of 12 or 24V battery sets
- Automatic switchover to standby battery when AC fails
- Zero voltage drop when switched over to battery backup
Regulatory Compliance:
- UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527
- CSA C22.2 #107.1, FCC Part 15, CSFM Approved
- 24.00” H x 20.00” W x 6.50” D | 44 lbs.

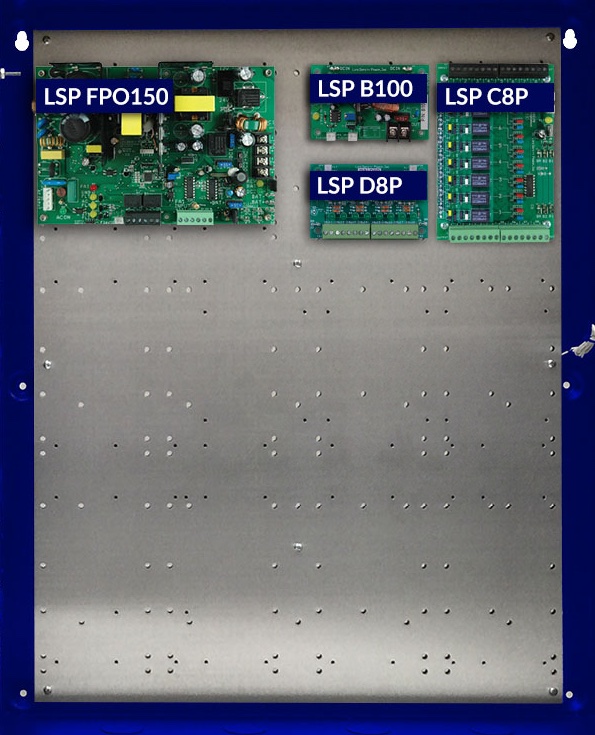

Recommended board layout
Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| E4ML-SK-5T | 577-3045 | 1 | BluBØX E4ML-SK-5T Speed Kit: Five board precut DC power, RS485 and lock trigger wiring kit |
| FPO150-B100C8PD8PE4M1 | 670-1475 | 1 | LifeSafety Power: Eight door power supply w/ power distribution, includes enclosure |
Ordering Information
| BluBØX Order # | Description |
|---|---|
| 670-1475 | LifeSafety Power Eight Door Power Supply w/ Power Distribution, Includes Enclosure |
