LifeSafety Power FPO75-E2M

  1. Last updated
  2. Save as PDF
46 MFG Part #670-1320.jpg

 Printer Friendly Version

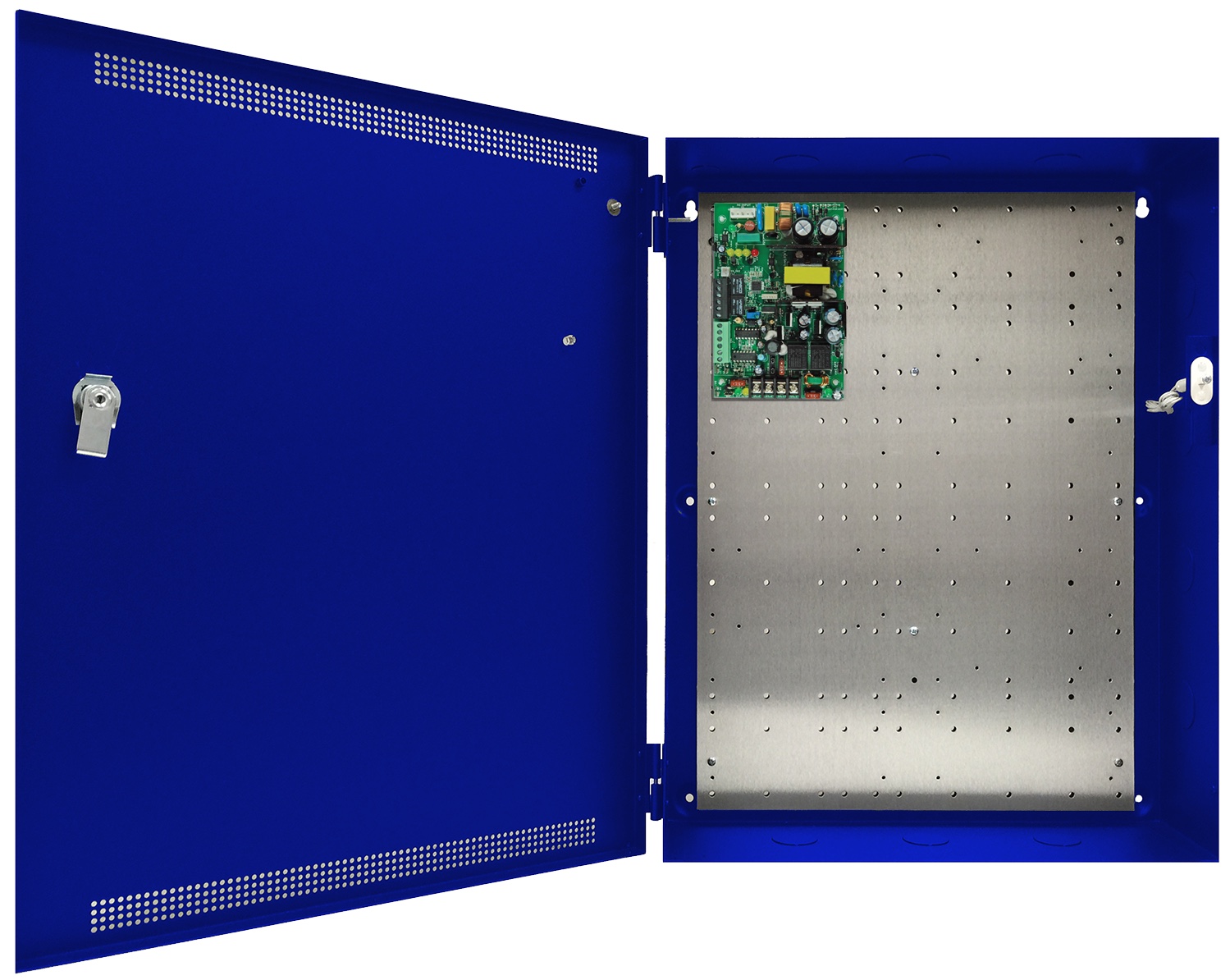

LifeSafety Power Single Voltage Power Supply, Includes Enclosure

The LifeSafety Power FPO75-E2M is a Single Voltage Power Supply with an Enclosure. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. It includes a locking four door enclosure with tamper, power supply and wiring speed kit. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.

 Printer Friendly Version

46 MFG Part #670-1320.jpg

System Features

FPO offline power supply
  • 120 or 230 VAC input
  • 12 and 24 VDC outputs
  • On board Fire Alarm Interface
  • Continuous and resettable DC
Distributed output module
  • Four, controlled fused at 3A each
  • Eight, auxiliary Class II P limited at 2.5A each
Expansion options
  • Increased power, multiple voltages
  • Additional distribution outputs
  • Power management

Enclosure Features

Labor saving design
  • Unified power and security in one enclosure
  • Pre-wired power section
  • Removeable backplate simplifies installs
  • Speed kit is included for power and data wiring
Additional benefits
  •  Wire management room
  • 4.5” enclosure depth fits battery set
  • Tamper switch, lock, dual key set standard
  • Mounting hardware for access boards included

Specification

Input Power:
  • Input 120/230VAC 50/60Hz | 100 Watts
  • Overload and short circuit protection
  • Over temperature protection
  • Polarized AC power supply disconnect
Output Power:
  • 75W Total Output Power | 12VDC/6A or 24VDC/3A
  • FPO Board Outputs: Continuous (DC1), Resettable (DC2)
  • 120mV Output Voltage Ripple | System Efficiency: 85% | System BTU Rating: 33 BTU/Hr
Battery Charging:
  • Independent built-in 1A (FPO75) Charger for sealed leadacid or gel type batteries
  • Microprocessor dual rate charging of 12 or 24V battery sets
  • Automatic switchover to standby battery when AC fails
  • Zero voltage drop when switched over to battery backup
Regulatory Compliance:
  • UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527
  • CSA C22.2 #107.1, FCC Part 15, CSFM Approved

Size and Weight:

  • 20.00”H x 16.00”W x 4.50”D | 26 lbs

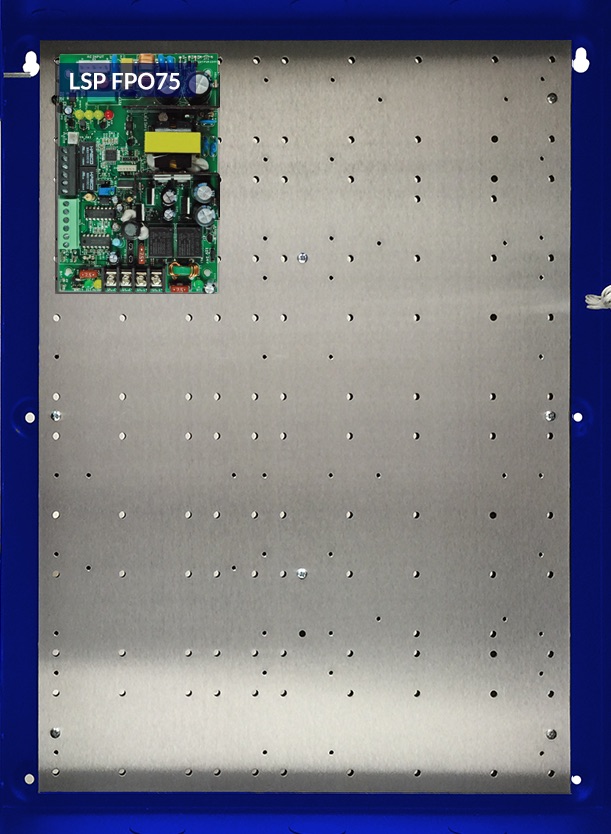

Recommended board layout
46 MFG Part #670-1320_labels.jpg

Kit Includes

MFG Part # BluBØX Order # QTY Description
E2M-SK-3 577-3005 1 BluBØX E2M-SK-3 Speed Kit: Three board precut DC power and RS485 wiring kit
FPO75-E2M 670-1320 1 LifeSafety Power: single voltage power supply, includes enclosure

Ordering Information

BluBØX Order # Description
670-1320 LifeSafety Power Single Voltage Power Supply, Includes Enclosure
