Large Mercury-Based System Takeover

System Overview

Large Mercury-Based System Takeover

System Use

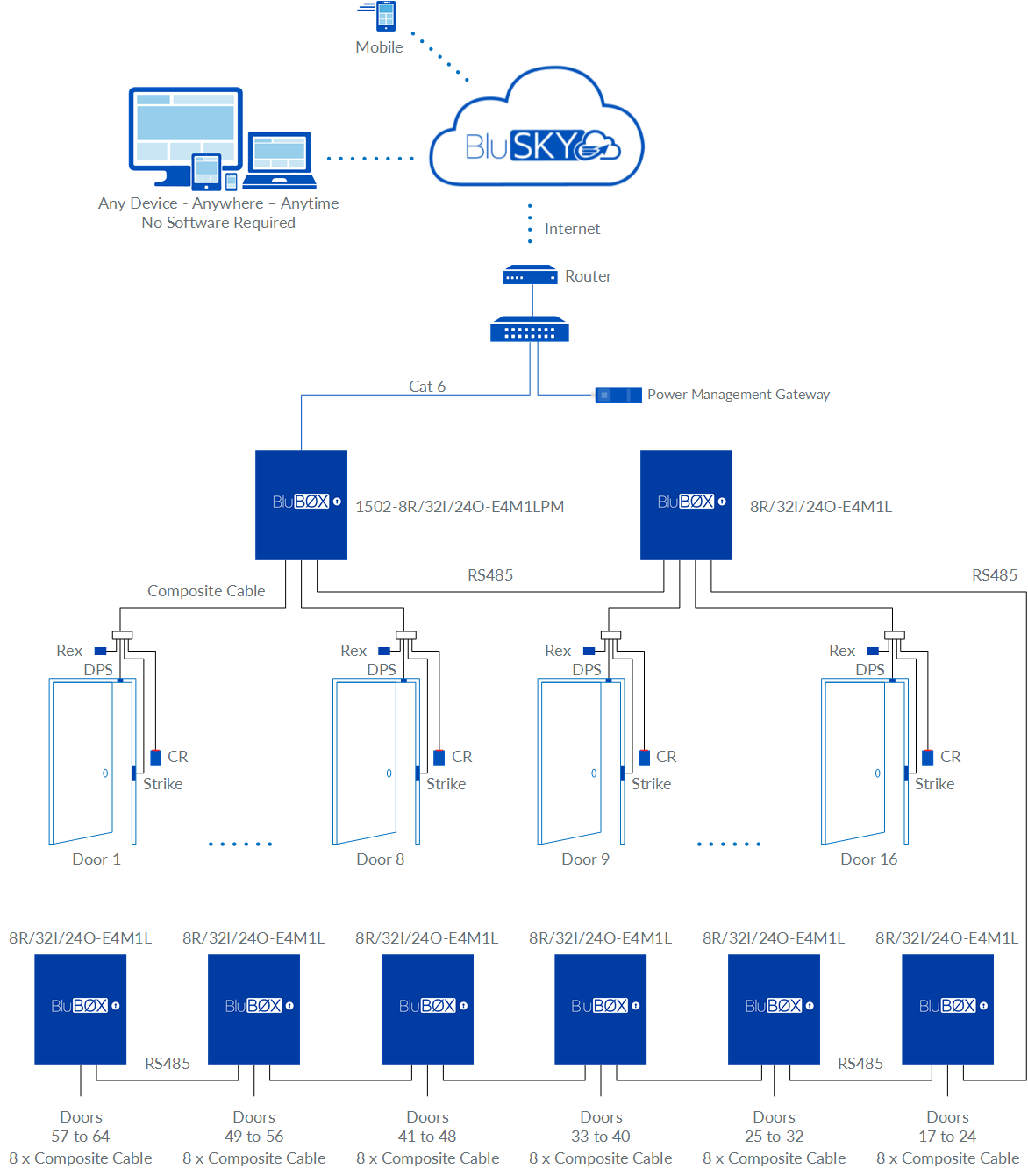

One Line System Diagram


 Click to Enlarge

Download the pdf:

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
670-1463 FPO150-B100D8PM8PNL4E4M1  w P/S BluB0X E4M1 Enclosure - 24x20x4.5 - w/an FPO150-B100D8PM8PNL4 4A/12V & 8A/24V dual Power Supply, w/ 8 Class II, and an 8 channel lock control.  Optional 2 $1,075.00 $0.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Optional 2 $360.00 $0.00
320-1000 Card - HID iClass w/ slot - 26 bit - QTY 50 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Optional 60 $214.00 $0.00
815-2010 Conv-1502 Board Conversion Fee - Mercury EP1502 Two Door DB Controller Included 1 $700.00 $700.00
815-2030 Conv-MR52 Board Conversion Fee - Mercury MR52 Two Door SIO Included 31 $176.00 $5,456.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 24 $97.00 $2,328.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 16 $182.00 $2,912.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 8 $97.00 $776.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 12 $145.00 $1,740.00



BluSKY Licenses

Part # BluSKY License Description Unit Quantity Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY.  Based on number of ACTIVE users in the System's database, excluding deleted and suspended.  Pre-requisite for any other BluSKY license. per User in a System Included 2,000 $0.79 $1,575.00
817-0120 Photo ID Badging Capture and storage of user and vendor photos and printing of  Photo-ID Badges.  Pre-Requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. per User in a System Optional 1,000 $0.54 $0.00
817-0320 Reader Required for every reader Per Reader  Included 64 $91.78 $5,874.00
817-1080 Power Management Power Management. per Device  Optional 2 $127.97 $0.00
817-1220 System Health Monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications.  Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $372.45 $372.45
817-0520 System Analytics Statistical analysis of all access control, alarm, video, vendor, DDE, visitor & incident events - displays the analytics, including counting, binning, trending, pattern recognition, correlation analysis and unusual event detection. Integrates with RND. % other Licenses Included 1 $744.90 $744.90
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $1,489.80 $1,489.80



MSRP Installed Cost

Mercury_Based_Large_System_Takeover.pdf
