4 Door EP1501 PACS with Cloud and Local Video
System Overview
EP1501 based 4 Door Physical Access Control System with Cloud and Local Video.
System Use

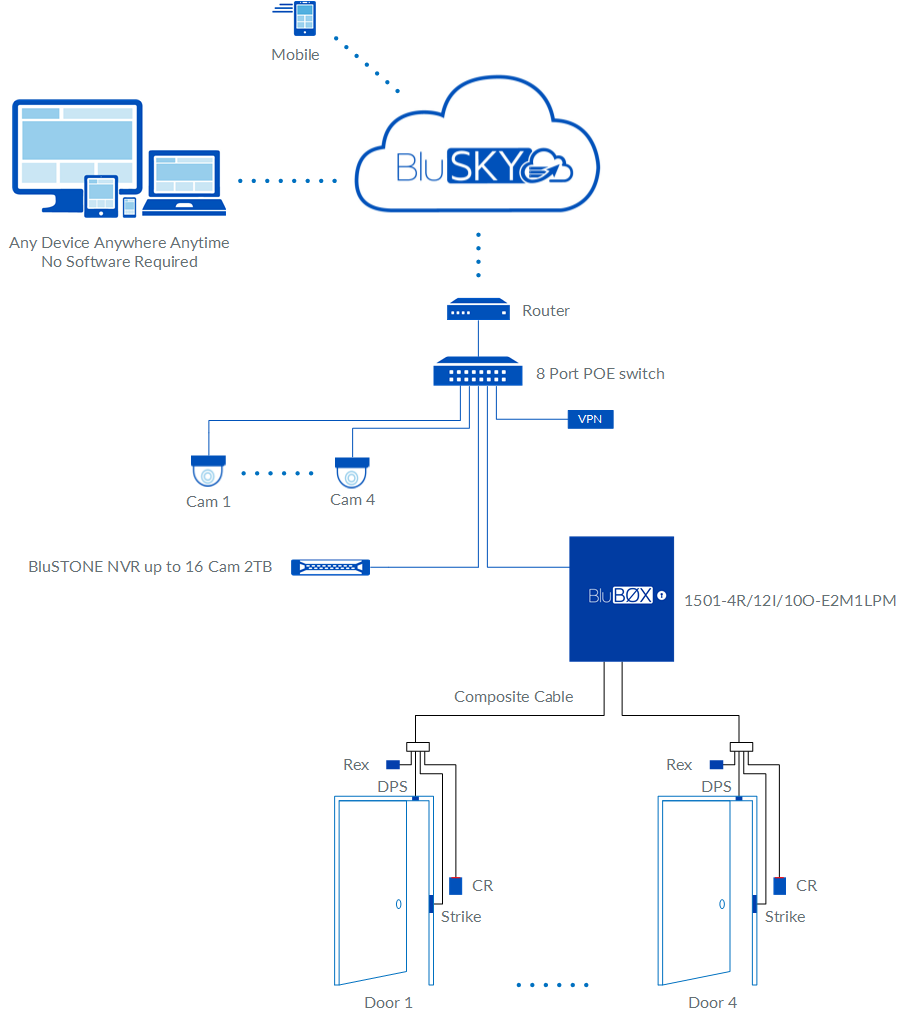

One Line System Diagram
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 221-0900 | IR Mini Bullet Camera with Fixed Lens - 3.0MP, FF 4mm | IR Mini Bullet Camera with Fixed Lens-(MS-C3763-PB) 3.0MP,Fixed Lens 4mm |
Included | 4 | $350.00 | $1,400.00 |
| 228-0100 | BCDM02-VA-I3-1TB | BluSTONE NVR - 16 Cameras - mini desktop - Core i3 - Windows 7 Pro 64 bit - 4GB RAM - 128GB SSD - 1TB 7200RPM SATA - 1x 1GbE - 2 x 65Watt - 1.3"H x 6.9"W x7"D | Included | 1 | $1,568.00 | $1,568.00 |
| 670-1440 | FPO150-B100C4D8PE4M w P/S + Dist | BluB0X E4M Enclosure - 24x20x4.5 - w/ an FPO150-B100C4D8P 4A/12V & 4A/24V dual voltage PS, a 4 channel lock control, and an 8 channel power distributor | Included | 1 | $769.00 | $769.00 |
| 752-3200 | 1501-4R/12I/10O-E2MLPM | Four reader/Twelve input/Ten output input system w/ managed lock power and power management | Included | 1 | $2,712.00 | $2,712.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 4 | $267.00 | $1,068.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Included | 1 | $434.00 | $434.00 |
| 410-1400 | 8 Port Unmanaged Gigabit Switch | Switch - HP ProCurve Switch 1410-8G (J9559A) | Included | 1 | $133.00 | $133.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. |
Included | 1 | $360.00 | $360.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit, F/C 201 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 300 | $4.30 | $1,290.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 10 | $97.00 | $970.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 4 | $182.00 | $728.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 2 | $97.00 | $194.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 4 | $146.00 | $584.00 |
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. | per User | Included | 200 | $2.05 | $409 |
| *817-0120 | User Photo & Badge Printing | Capture and storage of user and vendor photos. Printing of Photo-ID Badges. Pre-requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. | per User | Optional | 200 | $0.80 | $0 |
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450 |
| 817-0320 | Access Control | Per-reader license - provides all the access cpontrol core functionality | Per Reader | Included | 4 | $145.00 | $580 |
| *817-0600 | Alarm and Intrusion | Core alarm and intrusion functionality including alarm group and alarm point configuration, real time alarm display, alarm response and control and virtual keypad control. Integrates with RAND for expanded functionality. | per Sensor | Optional | 4 | $27.81 | $0 |
| 817-0700 | Local + Cloud Video | Connection of one (1) camera to any BluSTONE(local) or BluMILE(Cloud) NVR, and tranmission of video events to BluSKY for recording and playback. | per Camera | Included | 4 | $229.43 | $918 |
| 817-1080 | Power Management | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $200.00 | $200 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distributuion lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | per System | Included | 1 | 10% of other licenses |
$256 |
| 817-1220 | System Health | System health functionality - includes monitoring of BluSKY / BluCHIP software, hardware, database, security, power and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | per System | Included | 1 | 5% of other licenses |
$128 |
