LifeSafety Power E5M

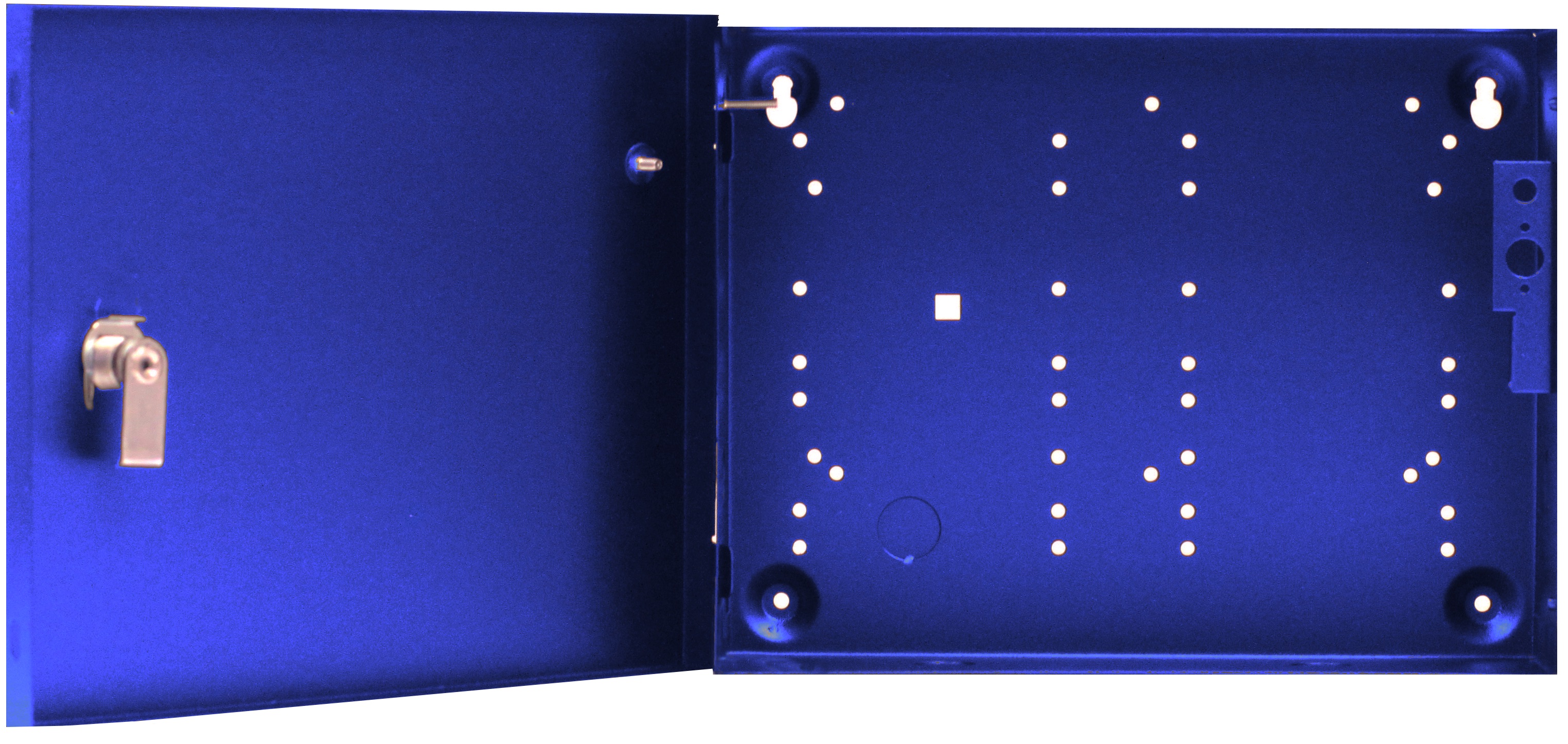

BluBØX Very Small Wall Mount Enclosure 8.5”H X 11”W X 3”D | 7 lbs
BluBØX multi-purpose enclosures offer maximum flexibility, functionality and savings to access system designers. BluBØX enclosures are engineered to house power management boards alongside access hardware in one compact, secure system. If power supply is required, then one FP075 power supply and one access board can be mounted side by side.
To prevent damage to system electronics, the backplate separates from the enclosure for access hardware mounting in the shop while wiring is pulled to the enclosure at the job site. Once completed, the backplate can be remounted for final terminations.
Features
- Mechanical refinements
- 17 Gauge steel with textured blue finish
- Lock and tamper switch standard
- Mounts LifeSafety power and access hardware in a variety of combinations
E5M Backplate Board Mounting
| Access Boards | BluBØX Order # | Board Size | Max Fit w/ Power | Max Fit Access Only |
|---|---|---|---|---|
| EP1501 | 120-1000 | 5.5” x 3.6” (bracket) | 0 | 2 |
| EP1502 | 120-1100 | 6” x 8” | 0 | 0 |
| EP2500 | 120-1200 | 6” x 5” | 0 | 0 |
| EP4502 | 120-1300 | 6” x 8” | 0 | 0 |
| MR50 | 120-2300 | 4.25” x 2.75” | 0 | 0 |
| MR51e | 120-2400 | 5.5” x 3.6” (bracket) | 0 | 2 |
| MR52 | 120-2500 | 6” x 8” | 0 | 0 |
| MR16IN | 120-2100 | 6” x 8” | 0 | 0 |
| MR16OUT | 120-2200 | 6” x 8” | 0 | 0 |
| MUX8 | 120-2600 | 6” x 5” | 0 | 0 |
Ordering Information:
| MFG Part # | BluBØX Order # | Description |
|---|---|---|
| E5M | 670-1290 | 8.5”H x 11”W x 3”D Enclosure for up to 2 Small Mercury Boards |
