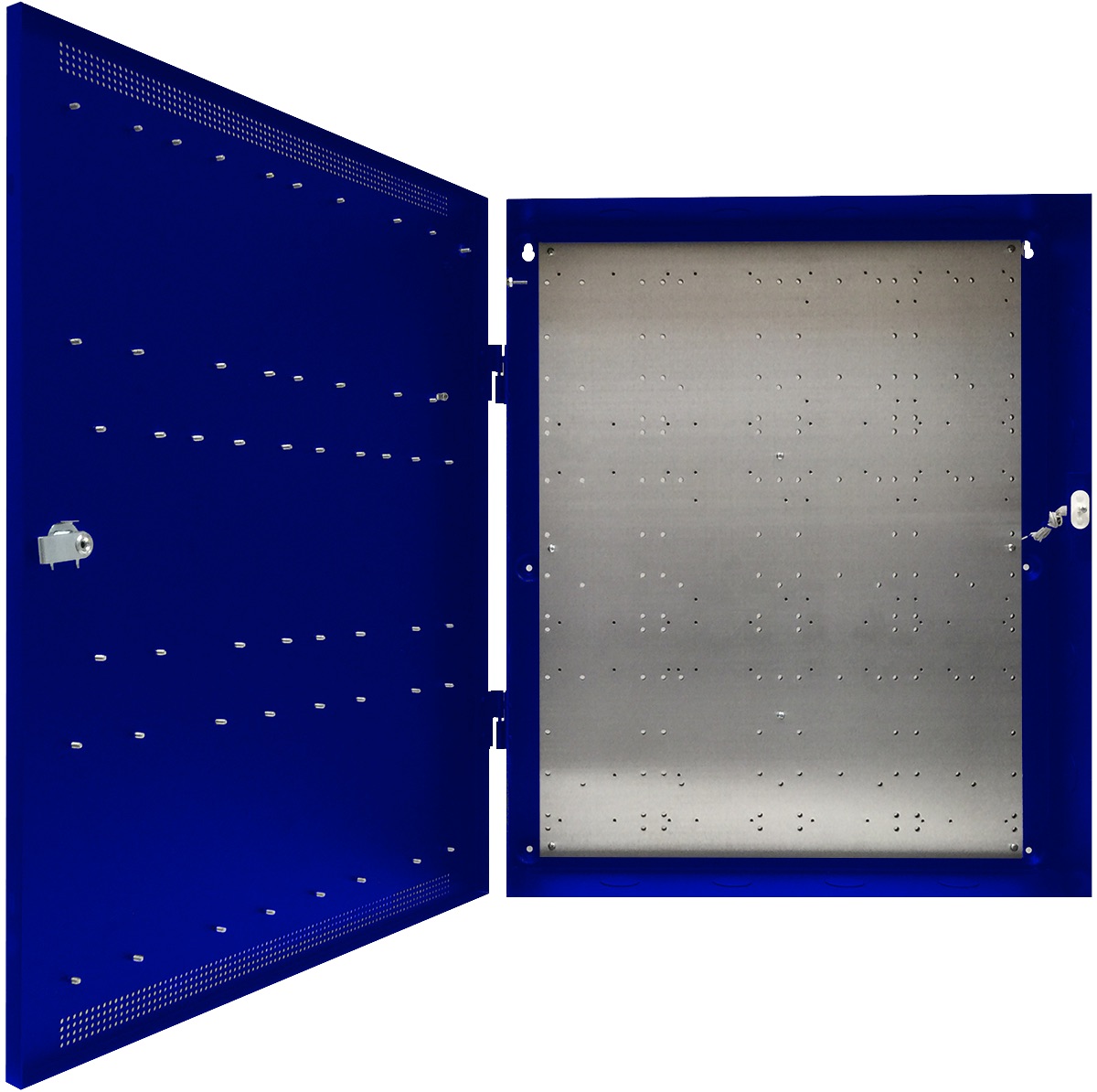

LifeSafety Power E4M1
BluBØX Large Wall Mount Enclosure 24”H X 20”W X 4.5”D | 33 lbs.
BluBØX multi-purpose enclosures offer maximum flexibility, functionality and savings to access system designers. BluBØX enclosures are engineered to house power management boards alongside access hardware in one compact, secure system.
To prevent damage to system electronics, the backplate separates from the enclosure for access hardware mounting in the shop while wiring is pulled to the enclosure at the job site. Once completed, the backplate can be remounted for final terminations.
Features
- Mounts LifeSafety power and access hardware in a variety of combinations
- Removable backplate simplifies job installation
- Engineered backplate pattern minimizes installation time
- Power boards mount along top third of enclosure
- Access boards mount on threaded metal standoffs
- Mechanical refinements
- 4.5” enclosure depth to accommodate 8AH batteries
- 17 Gauge steel with textured blue finish
- Board mounting hardware provided
- Lock and tamper switch standard
- Fits six more 6” x 8” access boards on cover
E4M1 Backplate Board Mounting
| Access Boards | BluBØX Order # | Board Size | Max Fit w/ Power | Max Fit Access Only |
|---|---|---|---|---|
| EP1501 | 120-1000 | 5.5” x 3.6” (bracket) | 3 | 5 |
| EP1502 | 120-1100 | 6” x 8” | 8 | 12 |
| EP2500 | 120-1200 | 6” x 5” | 8 | 12 |
| EP4502 | 120-1300 | 6” x 8” | 8 | 12 |
| MR50 | 120-2300 | 4.25” x 2.75” | 0 | 0 |
| MR51e | 120-2400 | 5.5” x 3.6” (bracket) | 3 | 5 |
| MR52 | 120-2500 | 6” x 8” | 8 | 12 |
| MR16IN | 120-2100 | 6” x 8” | 8 | 12 |
| MR16OUT | 120-2200 | 6” x 8” | 8 | 12 |
| MUX8 | 120-2600 | 6” x 5” | 8 | 12 |
Ordering Information:
| MFG Part # | BluBØX Order # | Description |
|---|---|---|
| E4M1 | 670-1260 | 24”H x 20”W x 4.5”D Enclosure for up to 12 Mercury Boards |
