LifeSafety Power E2M

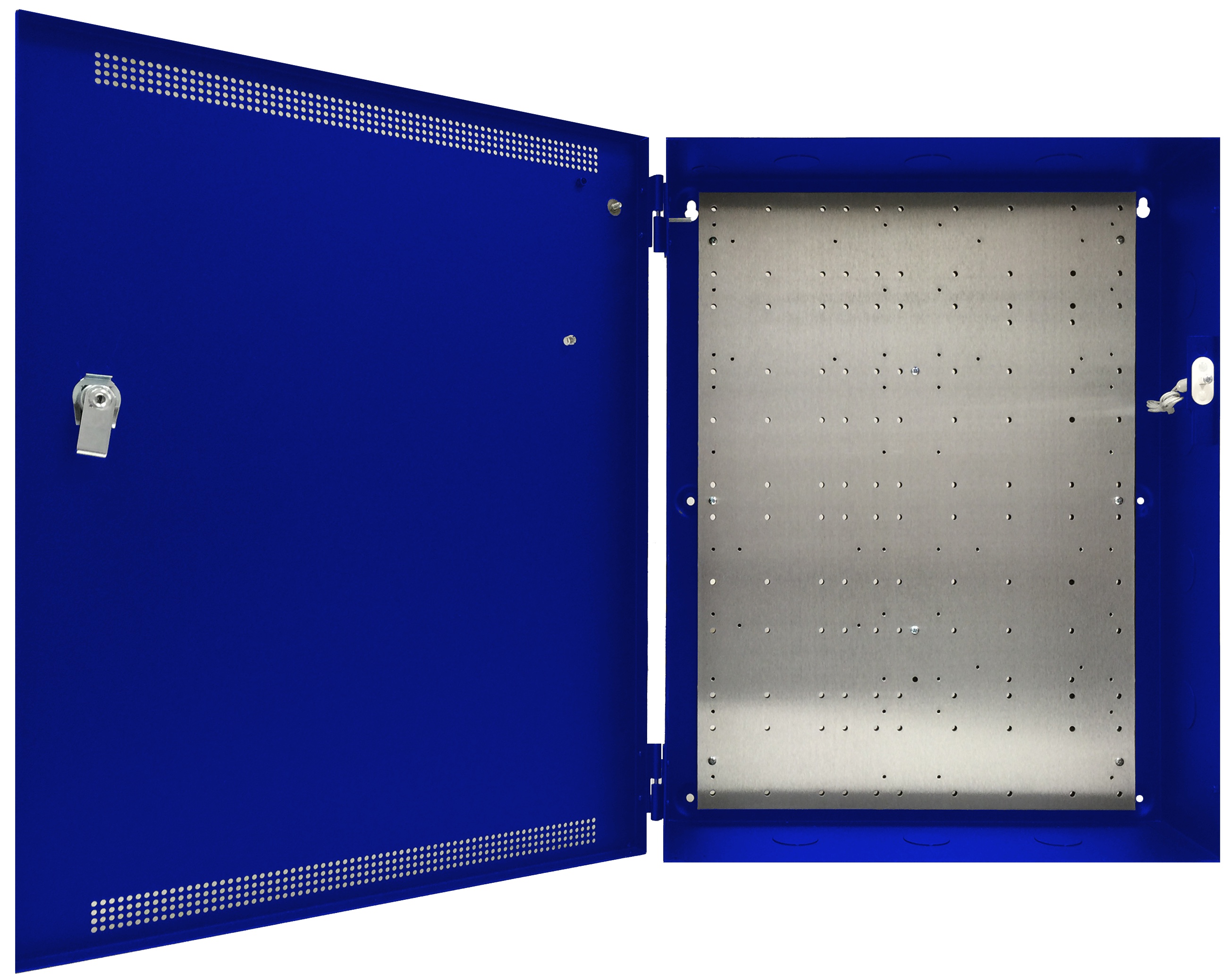

BluBØX Medium Wall Mount Enclosure 20”H X 16”W X 4.5”D | 20 lbs.

BluBØX multi-purpose enclosures offer maximum flexibility, functionality and savings to access system designers. BluBØX enclosures are engineered to house power management boards alongside access hardware in one compact, secure system.

To prevent damage to system electronics, the backplate separates from the enclosure for access hardware mounting in the shop while wiring is pulled to the enclosure at the job site. Once completed, the backplate can be remounted for final terminations.


Features
  • Mounts LifeSafety power and access hardware in a variety of combinations
  • Removable backplate simplifies job installation
  • Engineered backplate pattern minimizes installation time

  • Mechanical refinements
    • 4.5” enclosure depth to accommodate 8AH batteries
    • 17 Gauge steel with textured blue finish
    • Board mounting hardware provided
    • Lock and tamper switch standard

E1M Backplate Board Mounting

Access Boards BluBØX Order # Board Size Max Fit w/ Power Max Fit Access Only
EP1501 120-1000 5.5” x 3.6” (bracket) 2 4
EP1502 120-1100 6” x 8” 2 4
EP2500 120-1200 6” x 5” 2 4
EP4502 120-1300 6” x 8” 2 4
MR50 120-2300 4.25” x 2.75” 1 1
MR51e 120-2400 5.5” x 3.6” (bracket) 2 4
MR52 120-2500 6” x 8” 2 4
MR16IN 120-2100 6” x 8”  2 4
MR16OUT 120-2200 6” x 8” 2 4
MUX8 120-2600 6” x 5” 2 4

Ordering Information:

MFG Part # BluBØX Order # Description
E2M 670-1240 20”H X 16”W X 4.5”D Enclosure for up to 4 Mercury Boards
