2 Door Edge PACS with Cloud and Local Video

System Overview

2 Door Edge Physical Access Control System with Cloud and Local Video included.

System Use

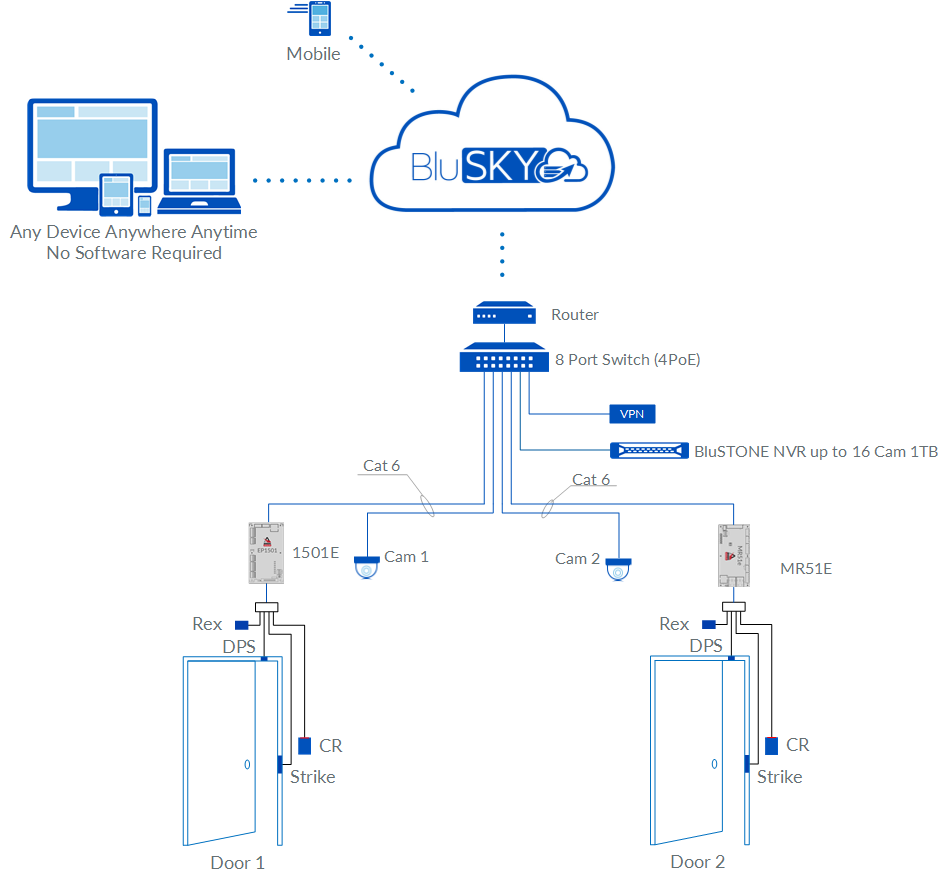

One Line System Diagram

BluBØX Equipment and Services

Part # Item Description Incl/Opt Qty Unit  Extended
221-1900 IR Pro Dome Camera w/ Focus/Zoom - 2.0MP, MZF 3.0-10.5mm Remote Focus and Zoom IR Pro Dome Camera-(MS-C2972-FIPMB) 2.0MP, Motorized Zoom Lens 3.0-10.5mm Included 2 $625.00 $1,250.00
228-0100 BCDM02-VA-I3-1TB BluSTONE NVR - 16 Cameras - mini desktop - Core i3 - Windows 7 Pro 64 bit - 4GB RAM - 128GB SSD - 1TB 7200RPM SATA - 1x 1GbE - 2 x 65Watt - 1.3"H x 6.9"W x7"D Included 1 $1,568.00 $1,568.00
670-1440 FPO150-B100C4D8PE4M w P/S + Dist BluB0X E4M Enclosure - 24x20x4.5 - w/ an FPO150-B100C4D8P 4A/12V & 4A/24V dual voltage PS, a 4 channel lock control, and an 8 channel power distributor Included 1 $769.00 $769.00
751-2000 1501E-2R/6I/4O Edge Solution - Two reader/Six input/Four output system Included 1 $1,380.00 $1,380.00
160-2200 Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy Included 2 $267.00 $534.00
400-1000 Router - CradlePoint MBR1200B Broadband Router Router - CradlePoint MBR1200B Broadband Router Included 1 $434.00 $434.00
410-1400 8 Port Unmanaged Gigabit Switch Switch - HP ProCurve Switch 1410-8G (J9559A) Included 1 $133.00 $133.00
460-0500 Power Management Gateway Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100)  and BluSKY Power Diagnostics.

Included 1 $360.00 $360.00
320-1000 Card - HID iClass w/ slot - 26 bit, F/C 201 Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot Included 150 $4.30 $645.00
800-8020 On Site SR Tech Support - Excl. T&M - Business Hours Technicial  Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: Included 10 $97.00 $970.00
800-1225 Project Management - Business Hours Project Management  - Remote - Business Hours - Min: 4 hrs. -PER HOUR: Included 5 $182.00 $910.00
800-0400 Training - Video Conference - Business Hours Training - Video Conference - Business Hours - PER HOUR: Included 3 $97.00 $291.00
800-5340 BluSKY Database Construction Services BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: Included 4 $146.00 $584.00

BluSKY Licenses

Part # Item Description Unit Qty Incl/Opt Qty Unit  Extended
817-0100 Platform Security system infrastructure and database usage.  Required for any use of BluSKY. Base on number of ACTIVE users in the database, excluding deleted and suspended.  Pre Requisite for any other BluSKY license. per User  Included 100 $2.99 $299.00
817-0120 User Photo & Badge Printing Capture and storage of user and vendor photos and printing of  Photo-ID Badges.  Pre-Requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. per User  Included 100 $0.99 $99.00
817-0140 VPN VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers.   per System Included 1 $450.00 $450.00
817-0320 Access Control Per-Reader license - provides all the access control core functionality Per Reader  Included 2 $145.00 $290.00
817-0600 Alarm and Intrusion Core alarm and intrusion functionality - includes alarm group and alarm point configuration, real-time alarm display, response to alarms, and virtual keypad for arming and disarming. Integrates with RAND for expanded functionality. per Sensor  Included 2 $36.69 $73.00
817-0700 Local + Cloud Video Per Camera license - Connection of the camera to a BluSTONE(local) or to the BluMILE(Cloud) NVR,  and transmission of video events to BluSKY for recording and playback. per Camera  Included 2 $297.00 $594.00
817-1120 Intelligence Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics -  events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. % other Licenses Included 1 $180.50 $180.50
817-1220 System Health System health functionality - includes monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists.  % other Licenses Included 1 $90.25 $90.25

MSRP Installed Cost

#Describe the costs

2_Door_Edge_PACS_with_Cloud_and_Local_Video.pdf
