2 Camera Video and Video Analytics System
System Overview
2 Camera Video and Video Analytics System
System Use

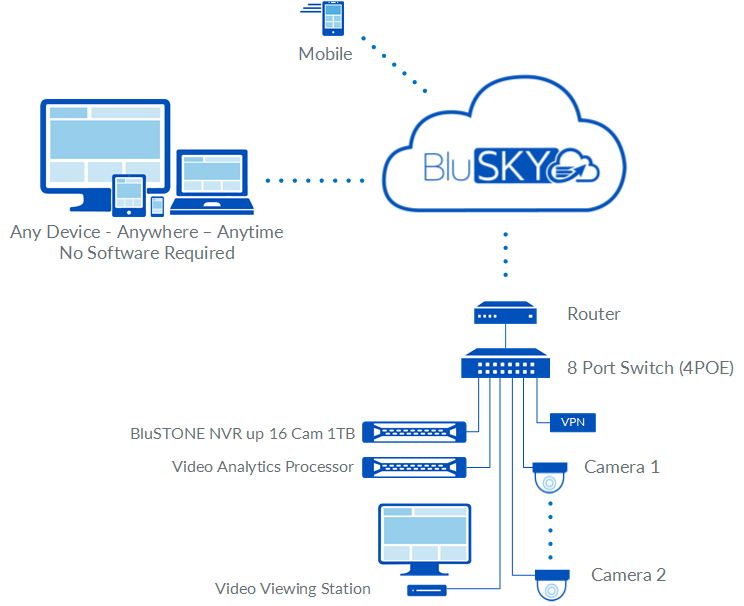

One Line System Diagram
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 221-1900 | IR Pro Dome Camera w/ Focus/Zoom - 2.0MP, MZF 3.0-10.5mm | Remote Focus and Zoom IR Pro Dome Camera-(MS-C2972-FIPMB) 2.0MP, Motorized Zoom Lens 3.0-10.5mm | Included | 2 | $625.00 | $1,250.00 |
| 228-0100 | BCDM02-VA-I3-1TB | BluSTONE NVR - 16 Cameras - mini desktop - Core i3 - Windows 7 Pro 64 bit - 4GB RAM - 128GB SSD - 1TB 7200RPM SATA - 1x 1GbE - 2 x 65Watt - 1.3"H x 6.9"W x7"D | Included | 1 | $1,568.00 | $1,568.00 |
| 226-0100 | VAP - 8C/6A/4Core | Video Analytics Processor - 8 Cam/6 Analytics - 4 Core CPU/8GB | Included | 1 | $2,098.00 | $2,098.00 |
| 410-2200 | Netgear ProSafe FS108P 8 port 10/100 Switch (4 PoE) | Netgear ProSafe FS108P 8 port 10/100 Switch (4 PoE) | Included | 1 | $168.00 | $168.00 |
| 775-0100 | Video Viewing Station | Video Viewing Station | Included | 1 | $1,691.00 | $1,691.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 2 | $97.00 | $194.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 2 | $182.00 | $364.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 2 | $97.00 | $194.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 4 | $146.00 | $584.00 |
BluSKY Licenses
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450.00 |
| 817-0660 | Local Video | Per Camera license - Connection of the camera to a BluSTONE(local) NVR for recording. Includes ability to configure the camera and the video events in BluSKY. Under this license, no video is sent to BluSKY, or available for playback in BluSKY. | per Camera | Included | 2 | $180.00 | $360.00 |
| 817-0740 | Video Analytics | Per Camera / per Analytic license - One video analytic applied to one camera. 15+ video analytics are available. Pre-Requisite: Video Analytics Processor Part # 226-0100 to 0800. | per Analytic per Camera | Included | 1 | $36.00 | $36.00 |
| 817-0760 | NVR Integration | Per Camera license - Connection of the camera to a local NVR for recording. Includes ability to configure the camera and the video events in BluSKY. Under this license, no video is sent to BluSKY, or available for playback in BluSKY. | per Camera | Included | 2 | $149.99 | $300.00 |
Download the pdf: Video Analytics 2 Cameras Rev 01.pdf
