Large - 80 Alarm System + Keypads + Central Station
System Overview
Large - 80 Alarm System + Keypads + Central Station
System Use

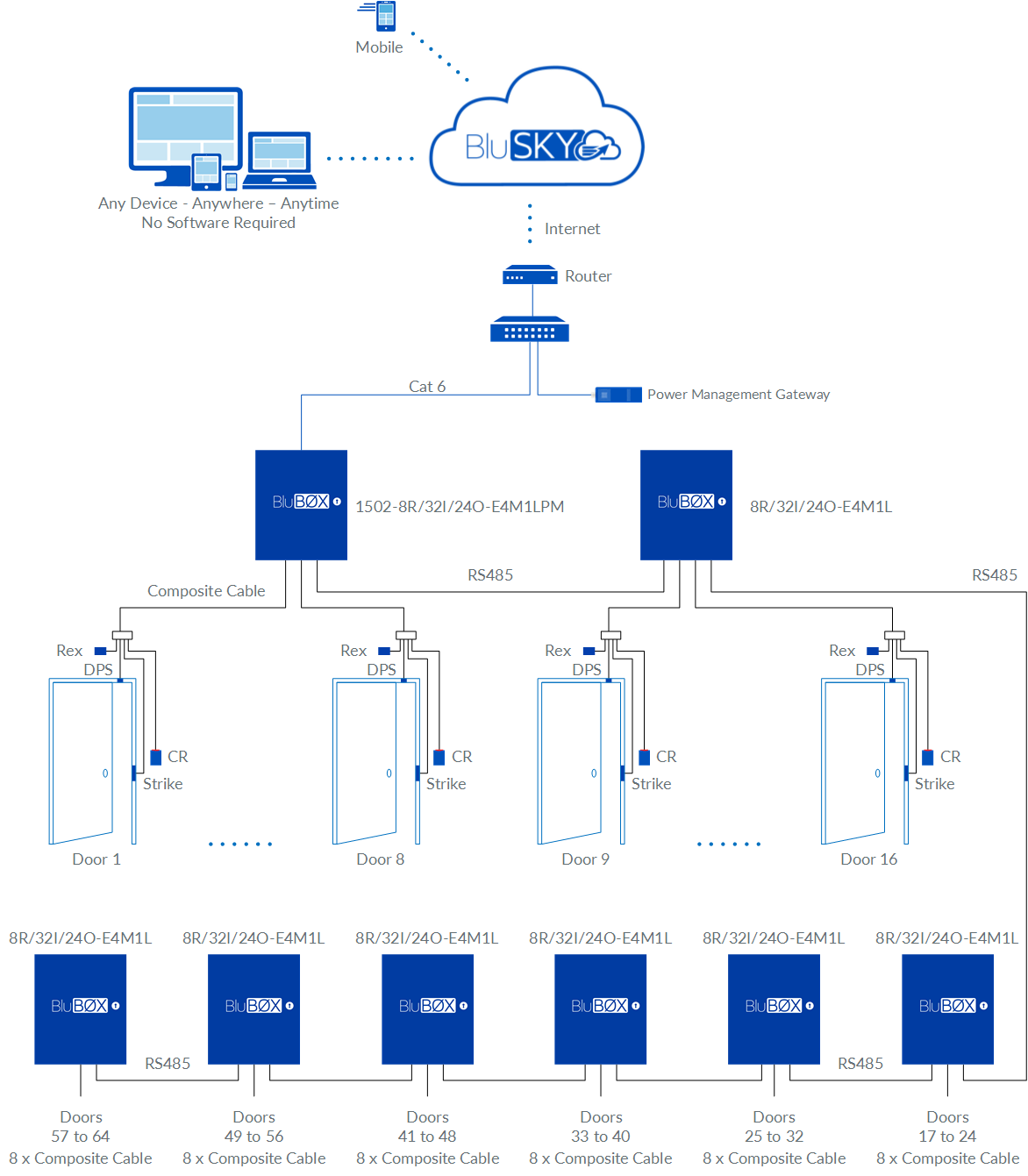

One Line System Diagram
Download the pdf:
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 752-7200 | 1502-8R/32I/28O-E4M1LPM | Eight reader system/Thirty-Two/Twenty eight output input system w/ managed lock power and power management | Included | 1 | $5,076.00 | $5,076.00 |
| 752-8500 | 8R/32I/24O-E4M1L | Eight Reader/Thirty Two/Twenty Four Input addition | Included | 7 | $3,682.00 | $25,774.00 |
| 120-2700 | MRDT Alarm Display/Keypad | Mercury Alarm Display Terminal | Included | 2 | $368.00 | $736.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 64 | $266.00 | $17,024.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360.00 | $360.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Optional | 2 | $434.00 | $0.00 |
| 410-1400 | 8 Port Unmanaged Gigabit Switch | Switch - HP ProCurve Switch 1410-8G (J9559A) | Optional | 2 | $132.00 | $0.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit - QTY 50 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 50 | $214.00 | $10,700.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 80 | $97.00 | $7,760.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 60 | $182.00 | $10,920.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 8 | $97.00 | $776.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 16 | $145.00 | $2,320.00 |
BluSKY Licenses
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. Based on number of ACTIVE users in the System's database, excluding deleted and suspended. Pre-requisite for any other BluSKY license. | per User in a System | Included | 2,000 | $0.79 | $1,575.00 |
| 817-0120 | Photo ID Badging | Capture and storage of user and vendor photos and printing of Photo-ID Badges. Pre-Requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. | per User in a System | Optional | 2,000 | $0.47 | $0.00 |
| 817-0640 | Central Station | Notification of alarms to a third party Central Station. Alarm point is identified via IP or dial-up methods. | per Facility | Included | 2 | $360.00 | $720.00 |
| 817-0320 | Reader | Required for every reader | Per Reader | Included | 64 | $91.78 | $5,874.00 |
| 817-1080 | Power Management | Power Management. | per Device | Included | 1 | $200.00 | $200.00 |
| 817-0600 | Alarm and Intrusion | Core alarm and intrusion functionality - includes alarm group and alarm point configuration, real-time alarm display, response to alarms, and virtual keypad for arming and disarming. Integrates with RAND for expanded functionality. | per Sensor | Included | 80 | $17.55 | $1,404.00 |
| 817-1220 | System Health | Monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | % other Licenses | Included | 1 | $488.65 | $488.65 |
| 817-0520 | System Analytics | Statistical analysis of all access control, alarm, video, vendor, DDE, visitor & incident events - displays the analytics, including counting, binning, trending, pattern recognition, correlation analysis and unusual event detection. Integrates with RND. | % other Licenses | Included | 1 | $977.30 | $977.30 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | % other Licenses | Included | 1 | $1,954.60 | $1,954.60 |
MSRP Installed Cost
64_Reader_Access_%2B_80_Alarms-RS485-Comm-Sample.pdf
