BluCHIP DDE24DP-E2M (770-1020)

BluCHIP Destination Dispatch Elevator Single Processor Kit for up to 24 Elevator Cars

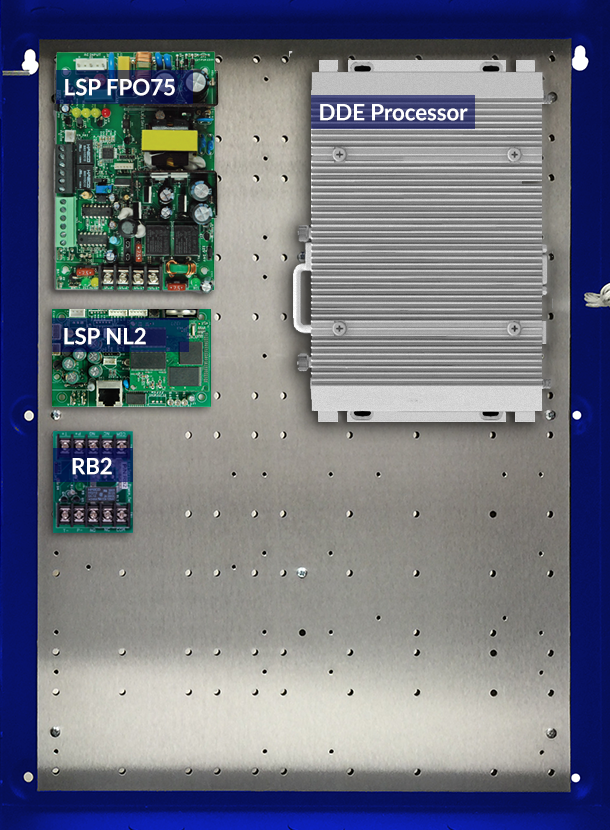

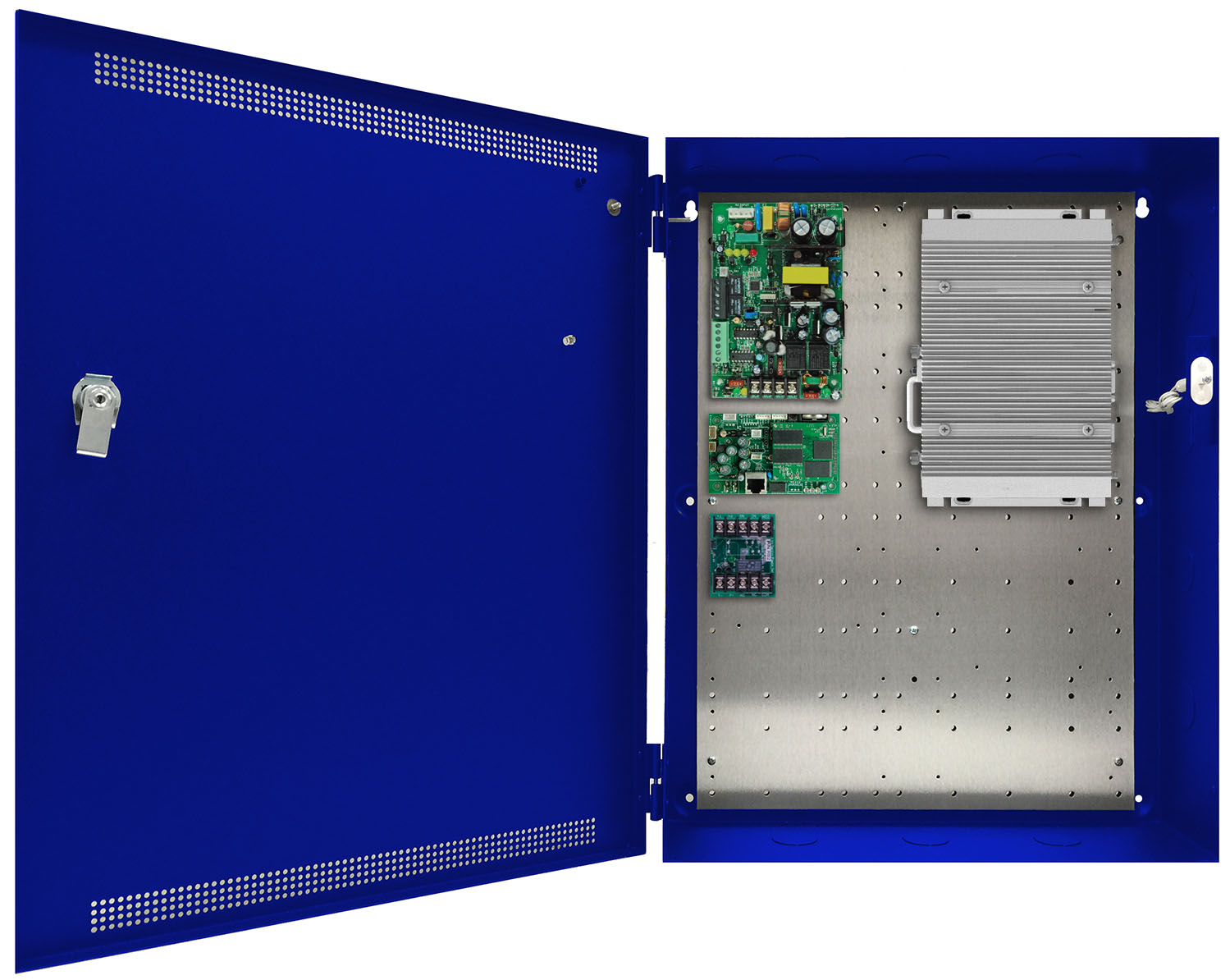

The BluCHIP DDE24DP-E2M is a Destination Dispatch Single Processor Kit that supports 24 or more elevator cars. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. The kit includes BluSKY Destination Dispatch Elevator Software for up to 24 elevator cars, a single industrial BluCHIP DDE Processor, a locking enclosure with tamper and power supply with remote power monitoring and management. All Destination Dispatch Elevator installations require BluCARE DDE Support Professional Services.

System Features

FPO offline power supply

1. 120 or 230 VAC input
2. 12 and 24 VDC outputs
3. On-board Fire Alarm Interface
4. Continuous and resettable DC

Distributed output module

1. Four, controlled fused at 3A each
2. Eight, auxiliary Class II P limited at 2.5A each

Expansion options

1. Increased power, multiple voltages
2. Additional distribution outputs
3. Power Management

Enclosure Features

Labor-saving design

1. Unified power and security in one enclosure
2. Pre-wired power section
3. Removeable backplate simplifies installs
4. Speed kit is included for power and data wiring

Additional benefits

1. Wire management room
2. 4.5” enclosure depth fits battery set
3. Tamper switch, lock, dual key set standard
4. Mounting hardware for access boards included
