BluCHIP DDE8DP-E2M (770-1005)
Click to view 770-1005 Datasheet.pdf
![Destination Dispatch](https://knowledge.blub0x.com/@api/deki/files/3304/KIT%2523_14_770-1005.png?revision=1)
BluCHIP Destination Dispatch Elevator Single Processor Kit for up to 8 Elevator Cars
The BluCHIP DDE8DP-E2M is a Destination Dispatch Single Processor Kit that supports 25 or more elevator cars. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. The kit includes BluSKY Destination Dispatch Elevator Software for up to 8 elevator cars, a single industrial BluCHIP DDE Processor, a locking enclosure with tamper and power supply with remote power monitoring and management. All Destination Dispatch Elevator installations require BluCARE DDE Support Professional Services.
![Destination Dispatch](https://knowledge.blub0x.com/@api/deki/files/3304/KIT%2523_14_770-1005.png?revision=1)
System Features
FPO offline power supply
- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On-board Fire Alarm Interface
- Continuous and resettable DC
Distributed output module
- Four, controlled fused at 3A each
- Eight, auxiliary Class II P limited at 2.5A each
Expansion options
- Increased power, multiple voltages
- Additional distribution outputs
- Power Management

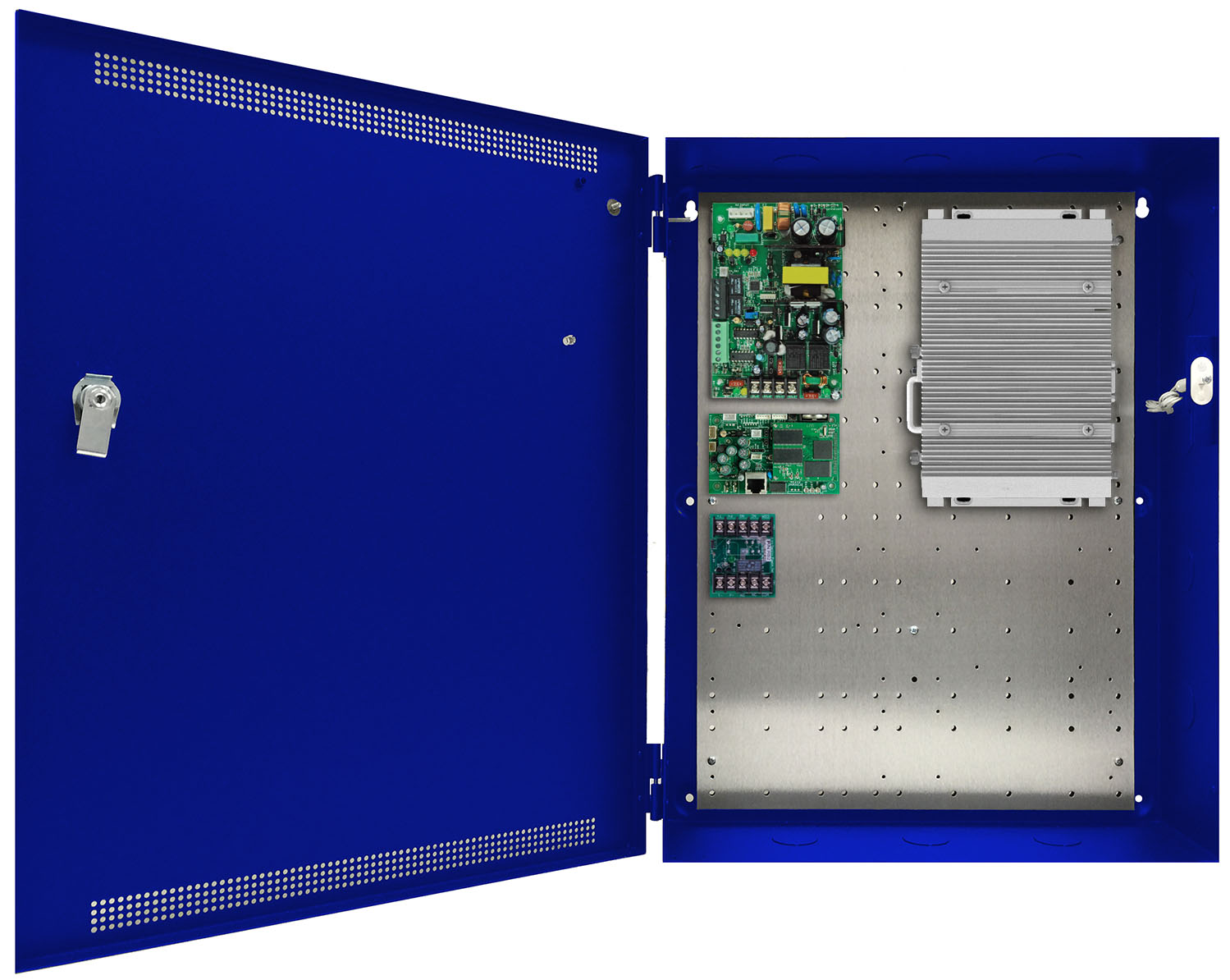

Enclosure Features
Labor-saving design
- Unified power and security in one enclosure
- Pre-wired power section
- Removeable backplate simplifies installs
- Speed kit is included for power and data wiring
Additional benefits
- Wire management room
- 4.5” enclosure depth fits battery set
- Tamper switch, lock, dual key set standard
- Mounting hardware for access boards included
Specifications
- Input 120/230VAC 50/60Hz | 100 Watts
- Overload and short circuit protection
- Overload temperature protection
- Polarized AC power supply disconnect
Output Power:
- 75W Total Output Power | 12VDC/6A or 24VDC/3A
- FPO Board Outputs: Continuous (DC1), Resettable (DC2)
- 120mV Output Voltage Ripple | System Efficiency: 85% | System BTU Rating: 33 BTU/Hr
Battery Charging:
- Independent built-in 1A (FPO75) Charger for sealed lead-acid or gel-type batteries
- Microprocessor dual rate charging of 12 or 24V battery sets
- Automatic switchover to standby battery when AC fails
- Zero voltage drop when switched over to battery backup
- UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527
- CSA C22.2 #107.1, FCC Part 15, CSFM Approved
DDE Processor Regulatory Compliance:
- EMC: CE/FCC Class A, CCC, BSMI
- Safety: UL, CCC, BSMI, CB
Destination Dispatch Elevator Processor:
- XXXX
Size and Weight:
- 20.00”H x 16.00”W x 4.50”D | 28 lbs.

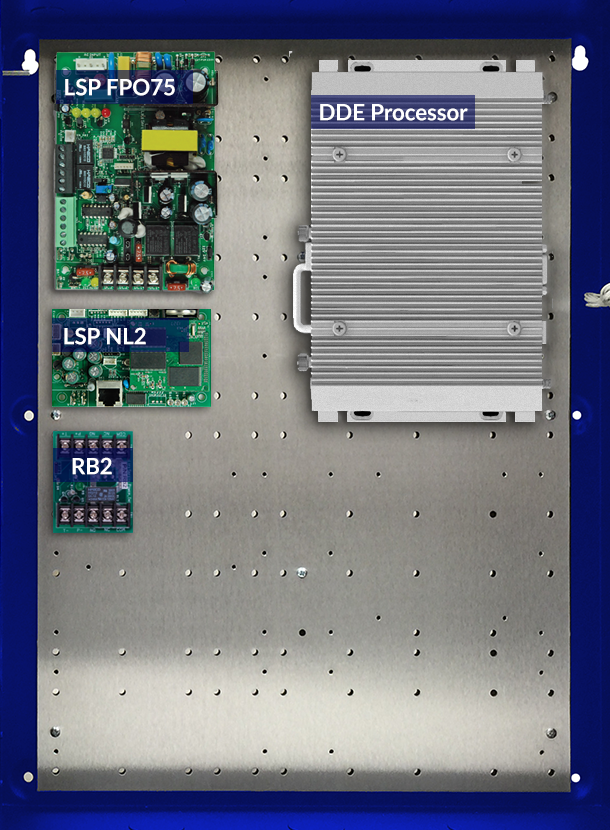

Recommended board layout
Kit Includes
MFG Part # | BluBØX Order # | QTY | Description |
---|---|---|---|
815-5005 | 815-5025 | 1 | BluSKY: DDE Software License for up to 8 Cars |
461-1000 | 1 | Destination Dispatch Elevator Processor | |
FPO75-E2M | 670-1320 | 1 | LifeSafety Power: Single voltage power supply, includes enclosure |
NL2 | 670-2000 | 1 | LifeSafety Power: Remote Power Monitoring & Management Module for up to 2 FPO devices |
Professional Services
MFG Part # | BluBØX Order # | QTY | Description |
---|---|---|---|
800-5125 | 800-5125 | 1 | BluCARE DDE Support |
Ordering Information
BluBØX Order # | Description |
---|---|
770-1005 | BluCHIP Destination Dispatch Elevator Single Processor Kit for up to 8 Elevator Cars |
