BluPOINT Nano Reader 3

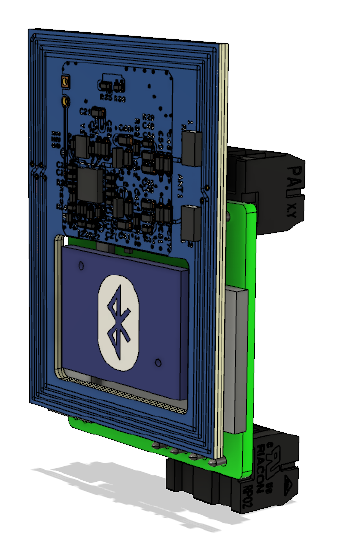

BluPOINT Nano Reader 3 (BPN-3)
Embedded Bluetooth and High Frequency NFC Reader For New or Existing Readers
Click to download >
Key Features
- XXX
Key Benefits
- XXX
Specifications
| General |
| Model | BPN-3 |
| Dimensions (H x W x D) | 1"x1"x0.3" |
| Display | N/A |
| Networking | N/A |
| Power | 5V-12V |
| Camera | N/A |
| Credentials | Bluetooth, NFC, MiFARE, Apple and Google Wallet Compatible |
| RFID | 13.56 MHz |
| Bluetooth | version 4.2 |
| Optional Reader | N/A |
| Reader Power | 12 VDC +-10%, 600mA maximum at each reader |
| Data Inputs | TTL compatible |
| RS-485 Mode | N/A |
| LED Output | TTL levels, high>3 V, low<0.5 V, 5 mA source/sink maximum |
| Buzzer Output | Open collector, 12 VDC open circuit maximum, 40 mA sink maximum |
| Inputs | N/A |
| Outputs | N/A |
| Serial I/O | N/A |
| Micro USB | N/A |
| Mobile Gesture | Tap, Twist, Wave, In Range, Behavior, BluREMOTE |
| DDE Floor Select | Yes (mobile app only) |
| DDE Keypad | Yes (mobile app only) |
| Visitor Enrollment | Yes (mobile app only) |
| Visitor Self Check-In | Yes (mobile app only) |
| Biometric Enrollment | Yes (mobile app only) |
| Directory | Yes (mobile app only) |
| Intercom | Yes (mobile app only) |
| One Day Pass | Yes (mobile app only) |
| Beacon | Yes |
| Reader Interface |
| Reader Port | 600mA Max |
| Inputs | N/A |
| Outputs | N/A |
| Serial I/O | N/A |
| Micro USB | N/A |
| Fan | N/A |
| Optical Tamper | N/A |
| Pressure Sensor Output | N/A |
| Battery | N/A |
| Cable Requirements |
| Power and Relays | 1 twisted pair, 18 to 16 AWG |
| Ethernet | N/A |
| Reader TTL | 6-conductor, 18 AWG, 500 feet (150 m) maximum |
| Reader RS-485 | 1 twisted pair, shielded, 120 ohm impedance, 24 AWG, 2,000 ft. (610 m) max. |
| I/O Devices | N/A |
| Alarm Input | N/A |
| Power Management |
| Native Monitored Outputs and Relay Control | N/A |
| Environmental |
| Temperature | -55 to +85 °C, storage, 0 to +70 °C, operating |
| Humidity | 5 to 95% RHNC |
| Mechanical |
| Dimensions | 1"x1"x0.3" |
| Weight |
| Compliance and Warranty |
| Product Compliance | UL 294 Recognized, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006) |
| Warranty | The product is warranted free from defects in material and workmanship under normal use and service with proper maintenance for one year from the date of factory shipment. |

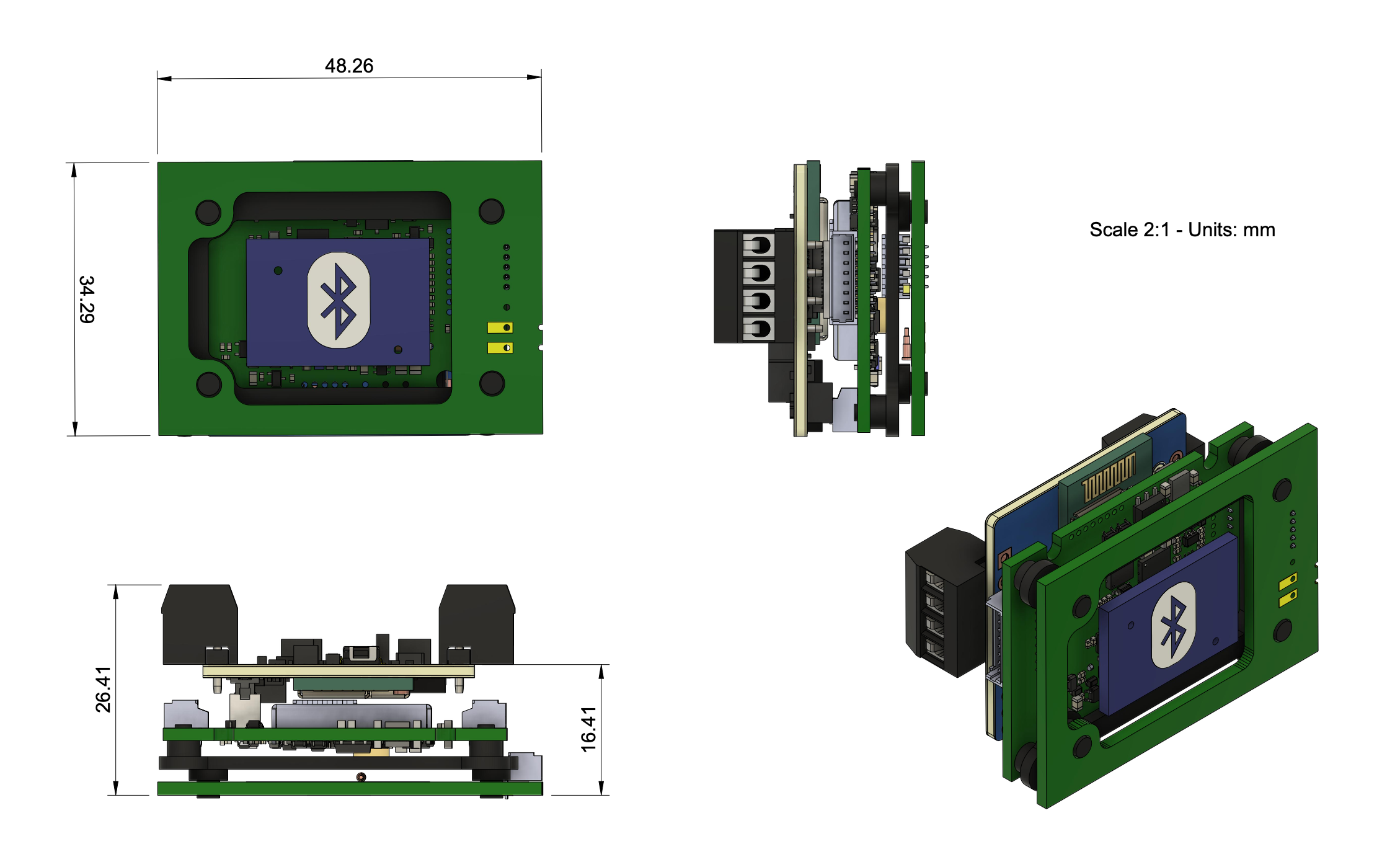

Drawings
 |
