BluCHIP EMR-64RELAY-FID (753-4300)

BluCHIP EMR-64RELAY-FID Elevator System I/O for up to 64 Total Floor Stops w/ Floor ID

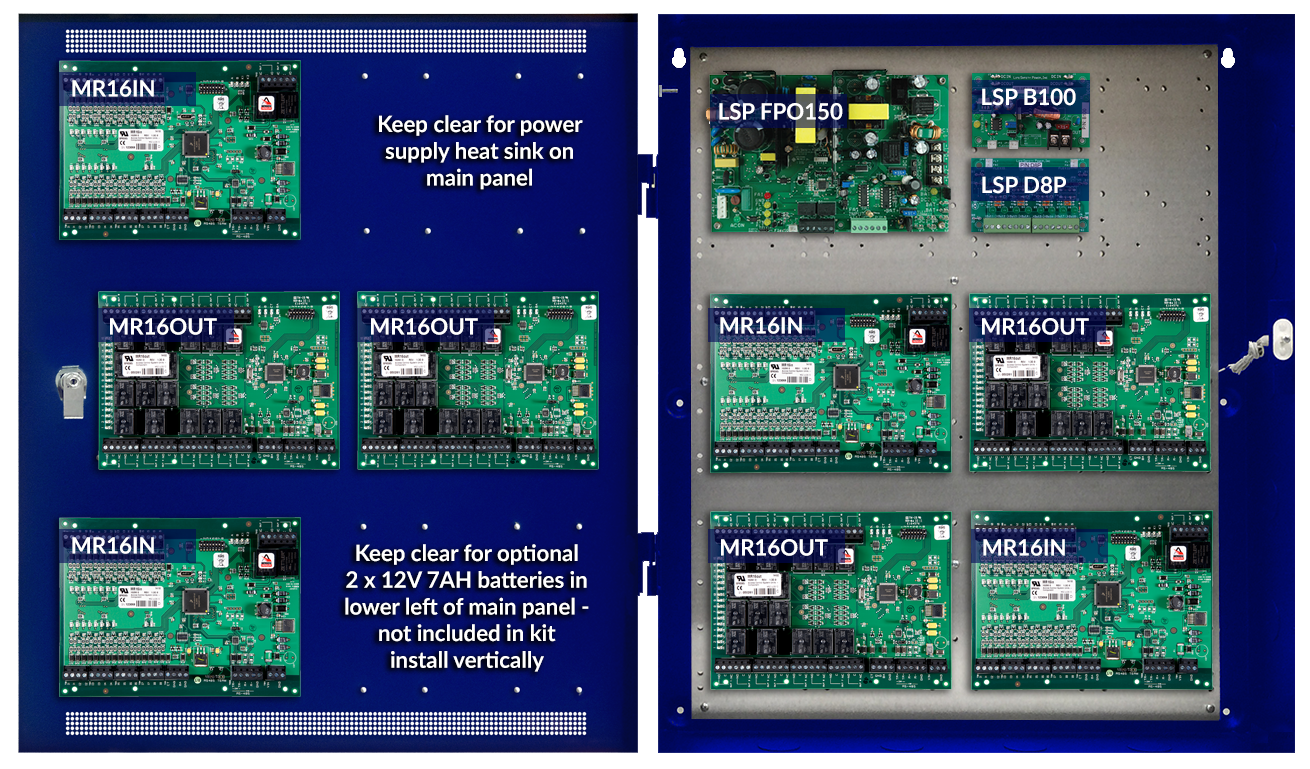

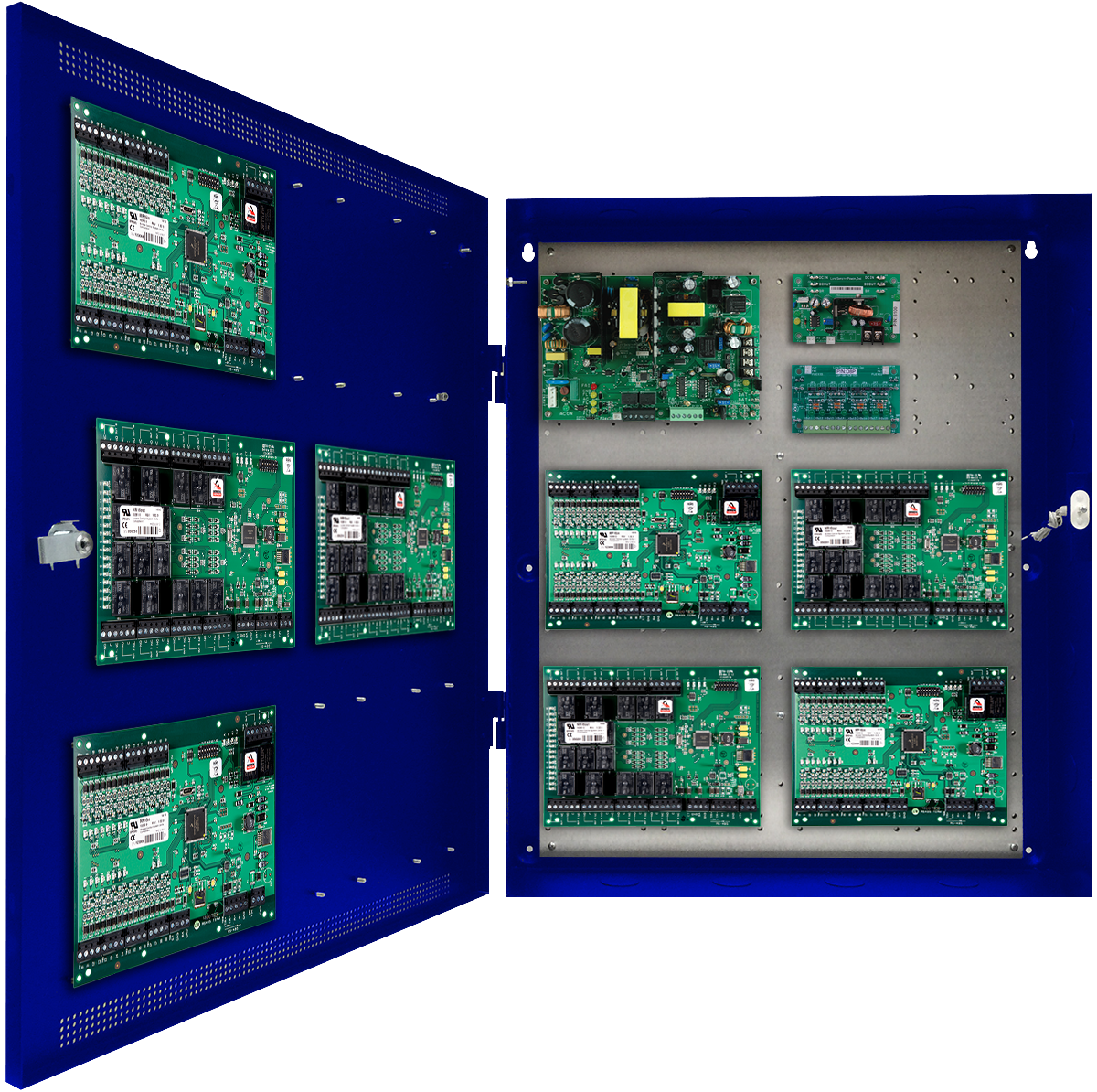

The BluCHIP EMR-64RELAY-FID is a Relay Elevator System I/O that supports up to 64 floor stops with Floor ID. The Floor ID feature allows the security system to capture elevator controller feedback of the floor selected by the user. The kit is designed to be installed in an elevator machine room and works in conjunction with an EMR Controller kit. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes four Mercury MR16IN and four MR16OUT boards, two locking enclosures with tamper, power supply and wiring speed kits in each.

System Features

FPO offline power supply

1. 120 or 230 VAC input
2. 12 and 24 VDC outputs
3. On board Fire Alarm Interface
4. Continuous and resettable DC

Distributed output module

1. Four, controlled fused at 3A each
2. Eight, auxiliary Class II P limited at 2.5A each

Expansion options

1. Increased power, multiple voltages
2. Additional distribution outputs
3. Power Management

Enclosure Features

Labor saving design

1. Unified power and security in one enclosure
2. Pre-wired power section
3. Removable backplate simplifies installs
4. Speed kit is included for power and data wiring
5. Includes mounting studs on doors to add additional I/O
   boards.

Additional benefits

1. Wire management room
2. 4.5” enclosure depth fits battery set
3. Tamper switch, lock, dual key set standard
4. Mounting hardware for access boards included
