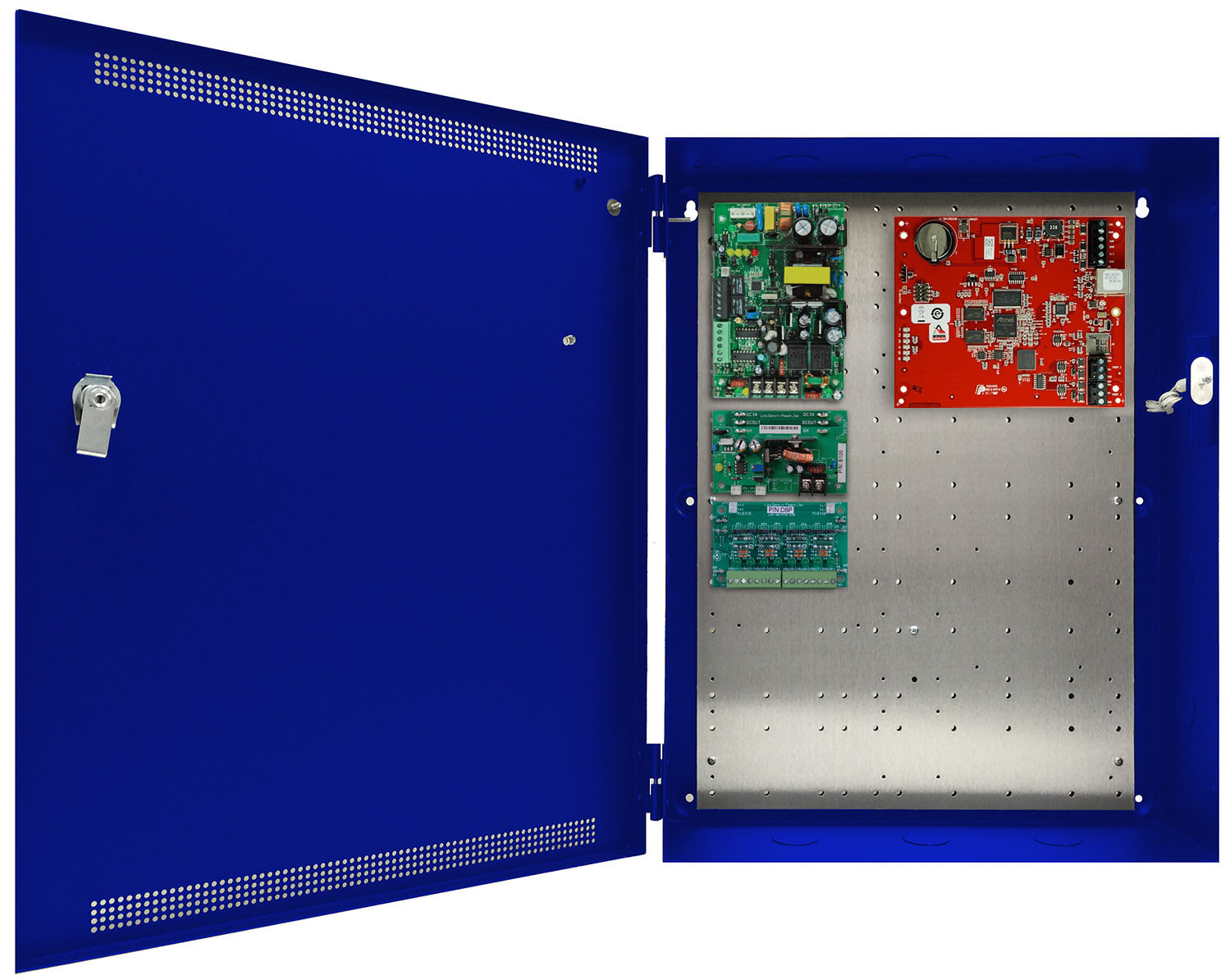

BluCHIP 2500-E2M (750-1001)

752 5300

Printer Friendly Version

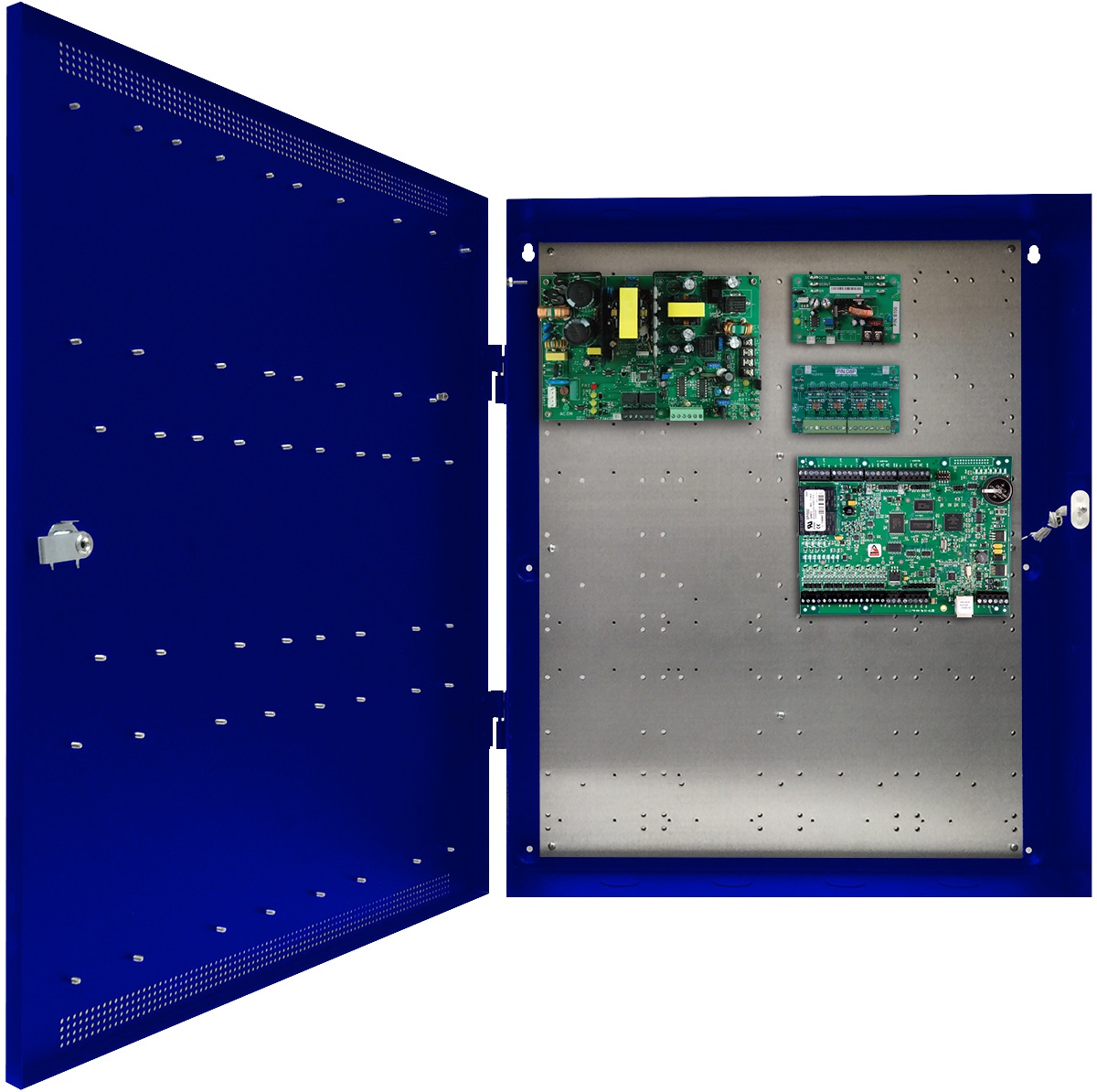

Mercury LP2500-E2M​

Controller only system w/ managed lock power and power management - Kit includes 1 x LP2500 plus locking 2 board enclosure with tamper and power supply and wiring kit. Kit expandable to 2 readers with 1 x MR52-S3.

Printer Friendly Version

752 5300

System Features

FPO offline power supply

  1. 120 or 230 VAC input
  2. 12 and 24 VDC outputs
  3. On board Fire Alarm Interface
  4. Continuous and resettable DC

Distributed output module

  1. Four, controlled fused at 3A each
  2. Eight, auxiliary Class II P limited at 2.5A each

Expansion options

  1. Increased power, multiple voltages
  2. Additional distribution outputs
  3. Power management

Enclosure Features

Labor saving design

  1. Unified power and security in one enclosure
  2. Pre-wired power section
  3. Removable backplate simplifies installs
  4. Speed kit is included for power and data wiring
  5. Includes mounting studs on door to add additional I/O boards

Additional benefits

  1. Wire management room
  2. 4.5” enclosure depth fits battery set
  3. Tamper switch, lock, dual key set standard
  4. Mounting hardware for access boards included

Specifications​

Input Power:

  1. Input 120/230VAC 50/60Hz | 200 Watts
  2. Overload and short circuit protection
  3. Over temperature protection
  4. Polarized AC power supply disconnect

Output Power:

  1. 150W Total Output Power | 12VDC/12A or 24VDC/6A
  2. FPO Board Outputs: Continuous (DC1), Resettable (DC2)
  3. 8 Auxiliary Outputs, Class 2 PL @ 2.5A each
  4. 120mV Output Voltage Ripple | System Efficiency: 88% | System BTU Rating: 66 BTU/Hr

Battery Charging:

  1. Independent built-in 2A (FPO150) Charger for sealed lead-acid or gel type batteries
  2. Microprocessor dual rate charging of 12 or 24V battery sets
  3. Automatic switchover to standby battery when AC fails
  4. Zero voltage drop when switched over to battery backup

Regulatory Compliance:

  1. UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527, CSA C22.2 #107.1, FCC Part 15, CSFM Approved

Access Panel:

  1. (1) LP2500
  2. 2 Readers | 8 Inputs | 4 Outputs

Size and Weight:

  1. 24.00”H x 16.00”W x 4.50”D | 40 lbs.

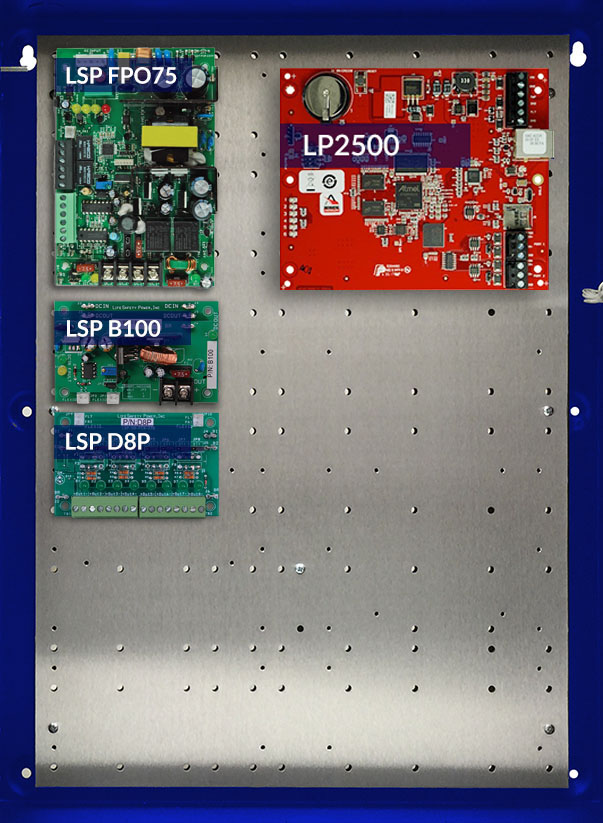

Recommended board layout


Kit Includes​

MFG Part #BluBØX Order #QTYDescription
LP2500120-12011Mercury LP2500: Two door DB controller Ethernet 12/24VDC Auxiliary I/O
MR50-S3120-23011Mercury MR50-S3: One door controller 12/24VDC
E4M-SK-4577-30101BluBØX E4M-SK-4 Speed Kit: Four board precut DC power and RS485 wiring kit
FPO150-B100D8PE4M1670-13851LifeSafety Power: Eight door power supply w/ power distribution, includes enclosure

Expansion Options​

MFG Part #BluBØX Order #QTYDescription
MR52-S3120-25013Mercury MR52-S3: Two door controller & auxiliary I/O 12/24VDC

Ordering Information​

BluBØX Order #Description
750-1001Mercury LP2500 Two Reader/Eight Input/Four Output System for Eight Doors
