BluCHIP 1502-EMRC-Boards Only (753-1000)
Click to view 753-1000 Datasheet.pdf

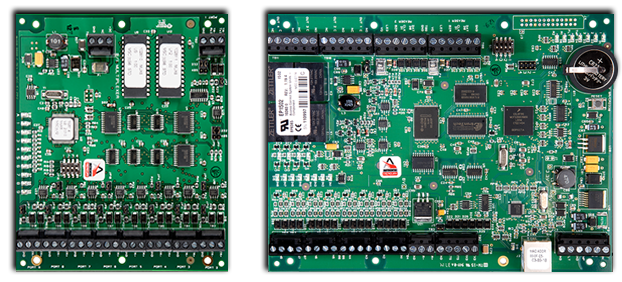

Mercury 1502-EMRC Elevator Systems Controller for 1 to 8 Cars- Board Only
The BluCHIP 1502-EMRC is a Relay Elevator System Controller
board for 1 to 8 cars and up to 32 total SIOs. Supports Optional Floor ID. It includes a Mercury EP1502 controller and a Mercury MUX8 board. Requires two open board locations in an E4M1 SIO enclosure. The SIO’s, their enclosures, and power must be ordered separately.
System Features
FPO offline power supply
- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On board Fire Alarm Interface
- Continuous and resettable DC
Distributed output module
- Four, controlled fused at 3A each
- Eight, auxiliary Class II P limited at 2.5A each
Expansion options
- Increased power, multiple voltages
- Additional distribution outputs
- Power Management
Specifications
Input Power:
- Input 120/230VAC 50/60Hz | 100 Watts
- Overload and short circuit protection
- Overload temperature protection
- Polarized AC power supply disconnect
Output Power:
- 75W Total Output Power | 12VDC/6A or 24VDC/3A
- FPO Board Outputs: Continuous (DC1), Resettable (DC2)
- 120mV Output Voltage Ripple | System Efficiency: 85% | System BTU Rating: 33 BTU/Hr
Access Panel:
- (1) EP1502, (1) MUX8
- 2 Reader | 16 Inputs | 4 Outputs
Requires two open board locations in an E4M1 SIO enclosure.
Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|

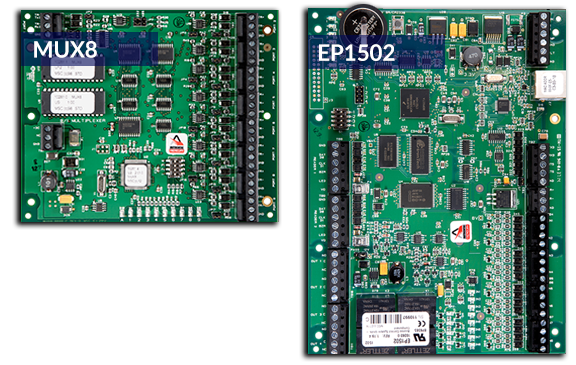

| EP1502 | 120-1100 | 1 | Mercury EP1502: Two Door DB Controller Ethernet 12/24VDC Auxiliary I/O |
| MUX8 | 120-2600 | 1 | Mercury MUX8: 8 Channel RS485 for Star Configuration |
| E2M-SK-2 | 577-3000 | 1 | BluBØX E2M-SK-2 Speed Kit: Two board precut DC power and RS485 wiring kit |
Ordering Information
| BluBØX Order # | Description |
|---|---|
| 753-1000 | Mercury 1502-EMRC Elevator Systems Controller for 1 to 4 Cars - Board Only |
