BluCHIP 1501-2R/4I/4O-E4M1L (752-2401)

 Printer Friendly Version

BluCHIP 1501 Two Reader / Four Input / Four Output Access Control System

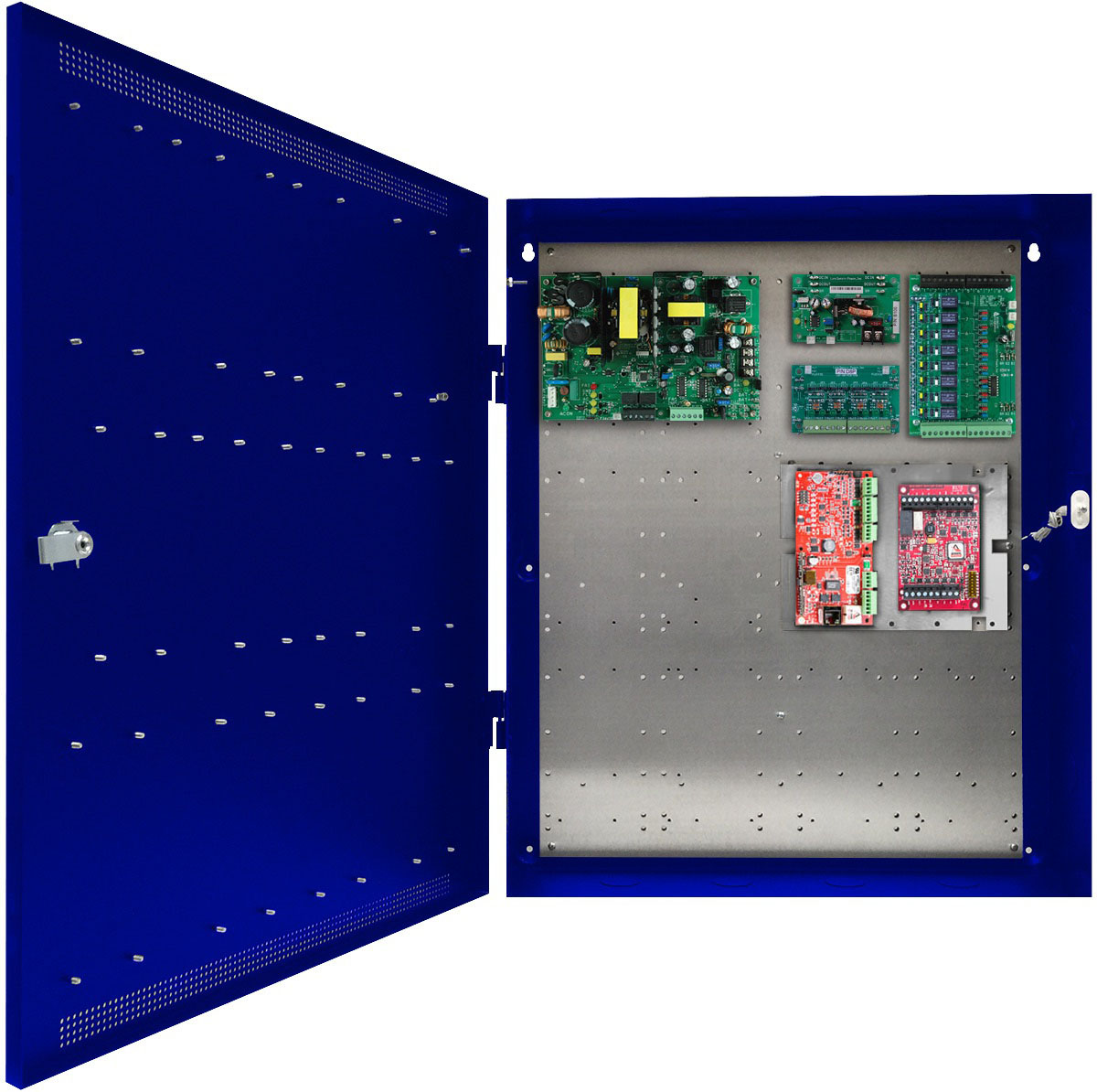

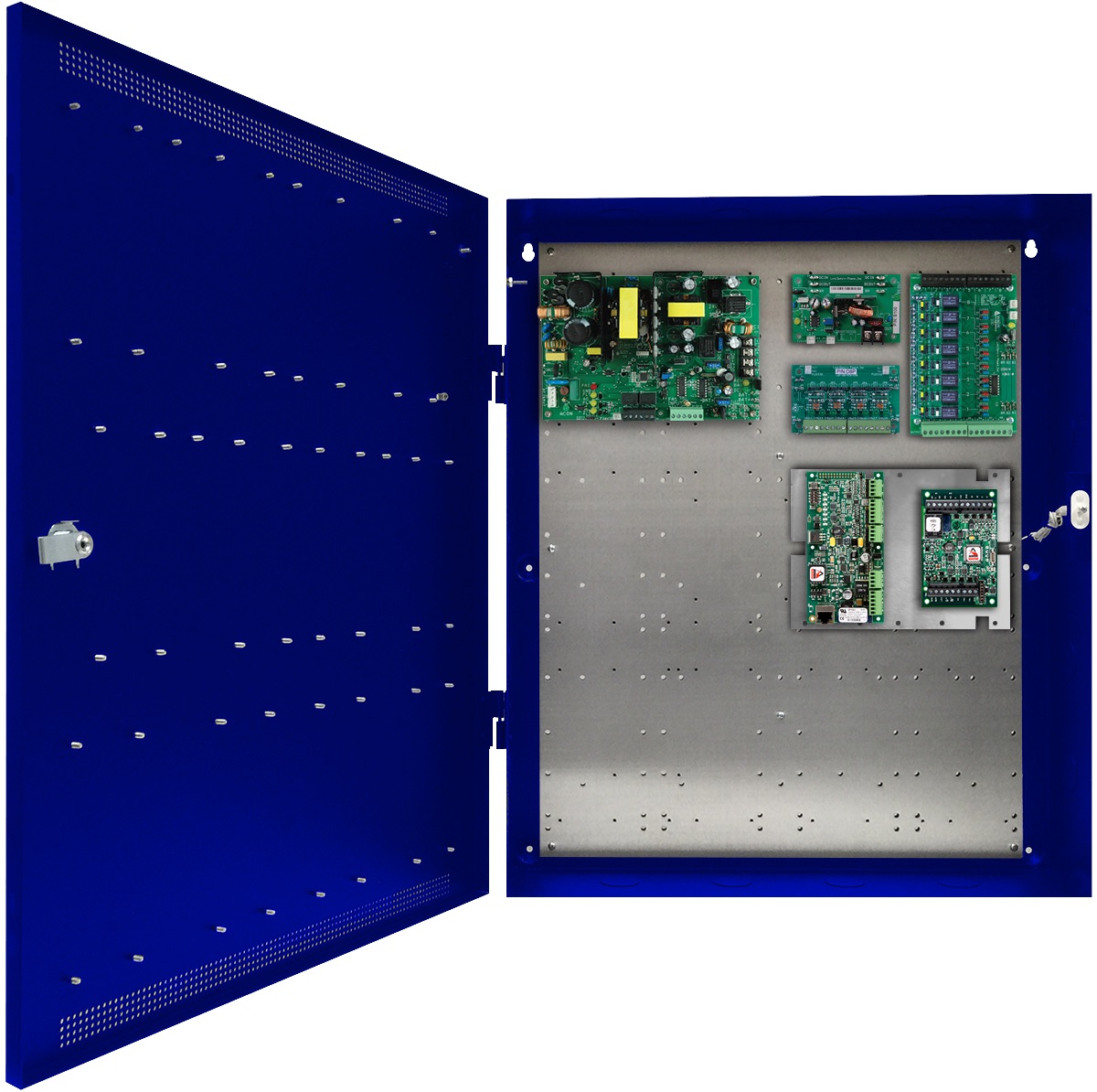

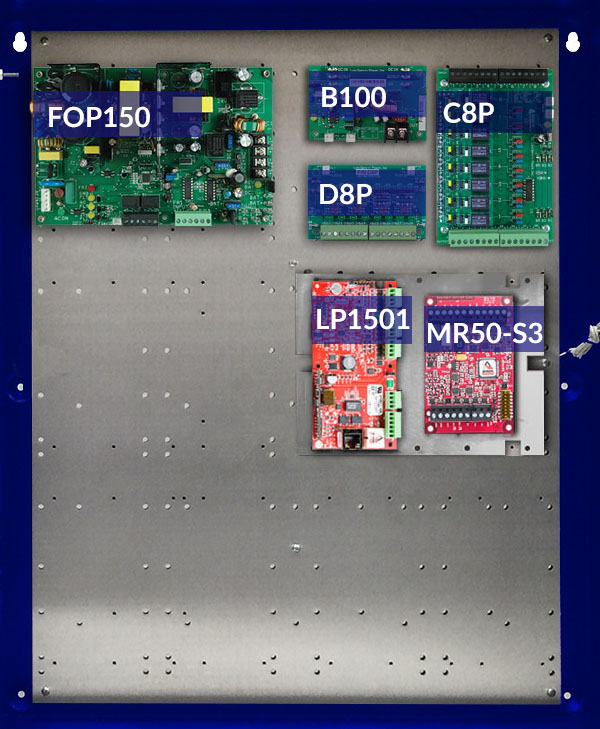

The BluCHIP 1501-2R/4I/4O-E4M1L is a unified two reader, four input, four output access control system with lock power and expansion up to eight doors. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. It includes a LP1501 board, MR-50-S3 board, a locking eight door enclosure with tamper, power supply, lock power and wiring speed kit. It is expandable to eight readers with three MR52-S3 boards. Configuration, administration and control are available through BluSKY.

System Features

FPO offline power supply

1. 120 or 230 VAC input
2. 12 and 24 VDC outputs
3. On board Fire Alarm Interface
4. Continuous and resettable DC

Distributed output module

1. Four, controlled fused at 3A each
2. Eight, auxiliary Class II P limited at 2.5A each

Expansion options

1. Increased power, multiple voltages
2. Additional distribution outputs
3. Power management

Enclosure Features

Labor saving design

1. Unified power and security in one enclosure
2. Pre-wired power section
3. Removable backplate simplifies installs
4. Speed kit is included for power and data wiring
5. Includes mounting studs on door to add additional I/O boards

Additional benefits

1. Wire management room
2. 4.5” enclosure depth fits battery set
3. Tamper switch, lock, dual key set standard
4. Mounting hardware for access boards included
