BluCHIP 1501-2R/4I/4O-E2ML (752-2101)
BluCHIP 1501 Two Reader / Four Input / Four Output Access Control System
The BluCHIP 1501-2R/4I/4O-E2ML is a unified two reader, four input, four output access control system with lock power and expansion up to four doors. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. It includes a LP1501 board, MR-50-S3 board, a locking four door enclosure with tamper, power supply, lock power and wiring speed kit. It is expandable to four readers with one MR52-S3 board. Configuration, administration and control are available through BluSKY.
Click to view PDF:
System Features
FPO offline power supply
- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On board Fire Alarm Interface
- Continuous and resettable DC
Distributed output module
- Four, controlled fused at 3A each
- Eight, auxiliary Class II P limited at 2.5A each
Expansion options
- Increased power, multiple voltages
- Additional distribution outputs
- Power management
Enclosure Features
Labor saving design
- Unified power and security in one enclosure
- Pre-wired power section
- Removable backplate simplifies installs
- Speed kit is included for power and data wiring
Additional benefits
- Wire management room
- 4.5” enclosure depth fits battery set
- Tamper switch, lock, dual key set standard
- Mounting hardware for access boards included
Specifications
- Input 120/230VAC 50/60Hz | 100 Watts
- Overload and short circuit protection
- Over temperature protection
- Polarized AC power supply disconnect
- 75W Total Output Power | 12VDC/6A or 24VDC/3A
- FPO Board Outputs: Continuous (DC1), Resettable (DC2)
- 4 Lock Outputs, 8 Auxiliary Outputs, Class 2 PL @ 2.5A each
- 120mV Output Voltage Ripple | System Efficiency: 85% | System BTU Rating: 33 BTU/Hr
- Independent built-in 1A (FPO75) Charger for sealed leadacid or gel type batteries
- Microprocessor dual rate charging of 12 or 24V battery sets
- Automatic switchover to standby battery when AC fails
- Zero voltage drop when switched over to battery backup
- UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527, CSA C22.2 #107.1, FCC Part 15, CSFM Approved
- (1) LP1501, (1) MR50-S3
- 2 Reader | 4 Inputs | 4 Outputs
- 20.00”H x 16.00”W x 4.50”D | 27 lbs.

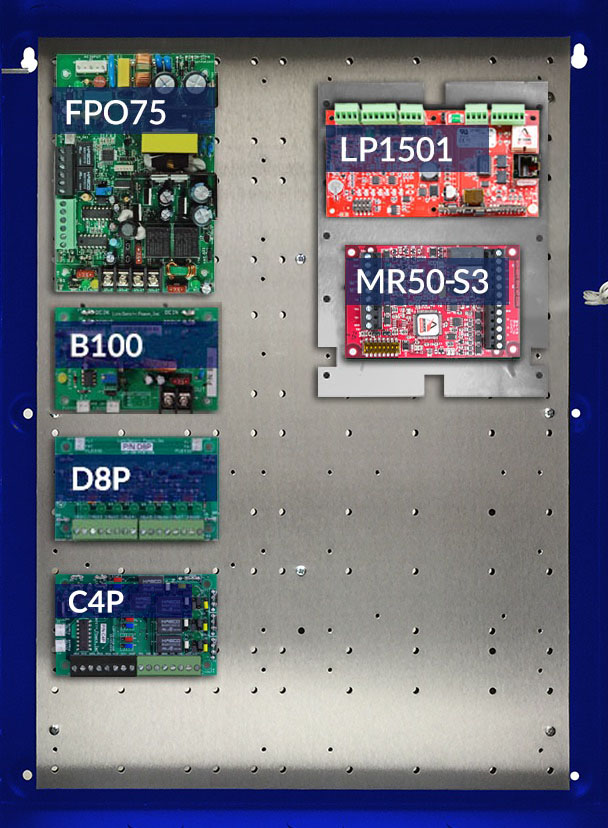

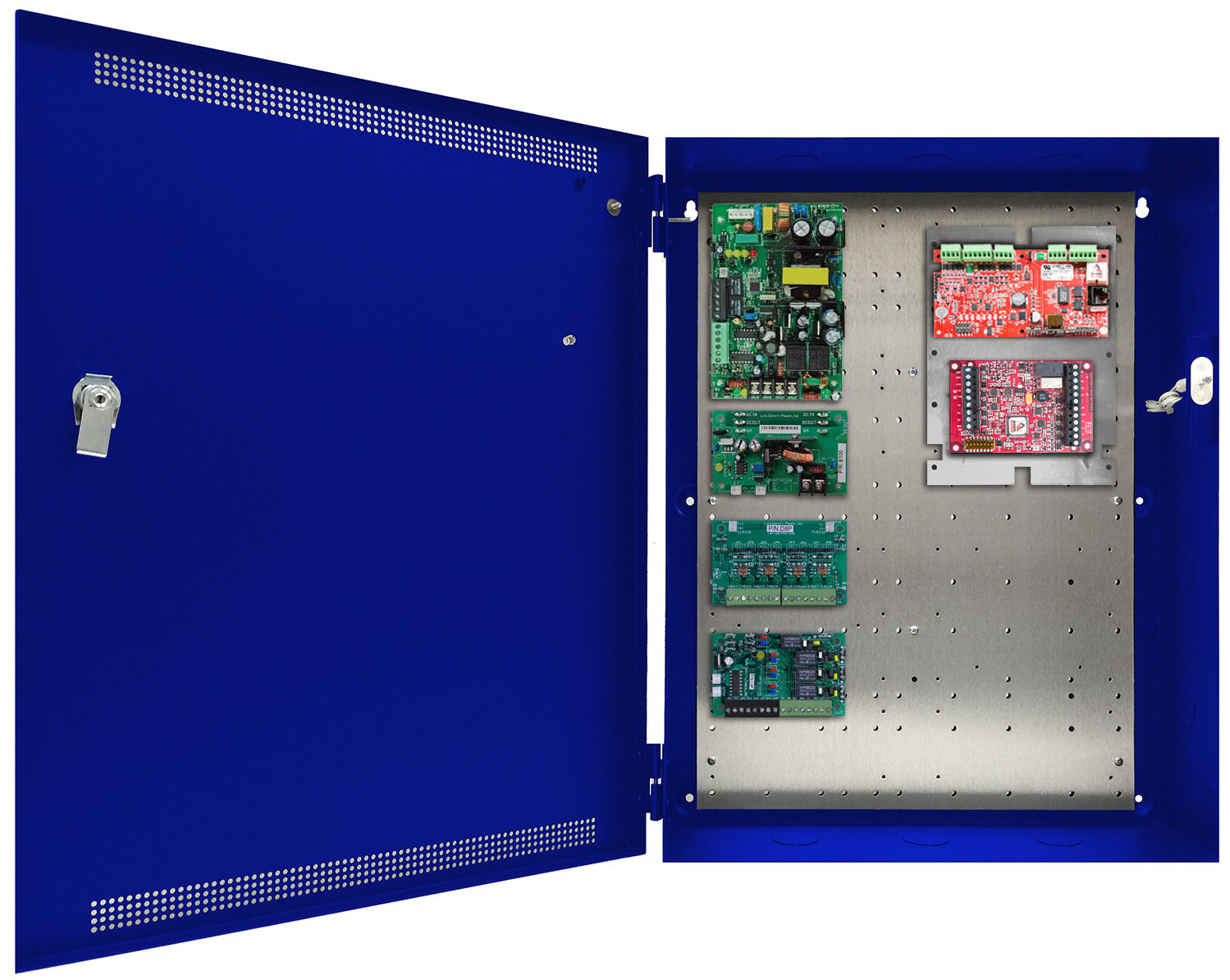

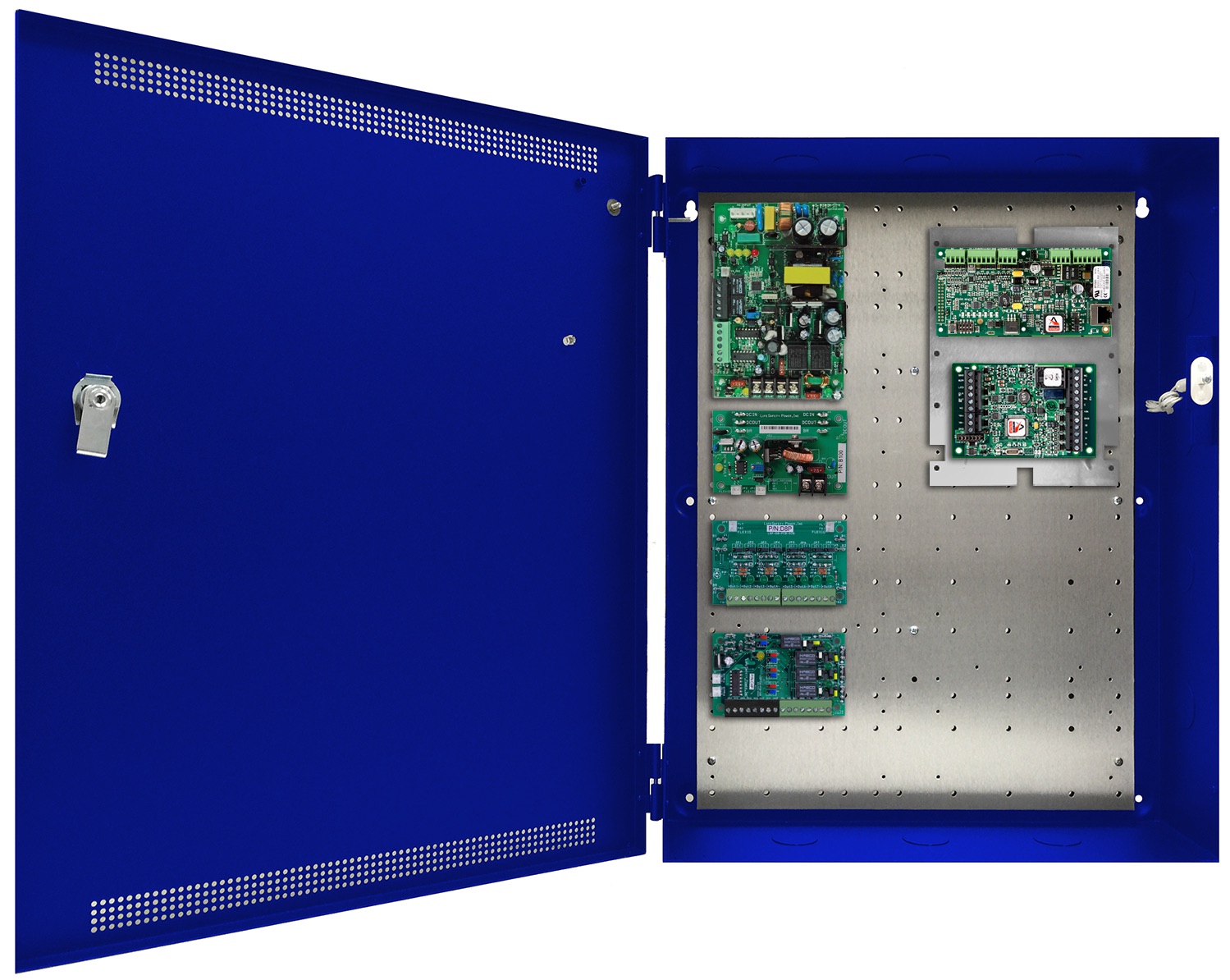

Layout
Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| LP1501 | 120-1001 | 1 | One door DB controller Ethernet PoE/12V |
| MR50-S3 | 120-2301 | 1 | One door controller & auxiliary I/O 12/24VDC |
| E2ML-SK-3T | 577-3035 | 1 | Three board precut DC power, RS485 and lock trigger wiring kit |
| LP1501-MR50 | 640-1400 | 1 | LP1501-MR50 bracket |
| FPO75-B100C4PD8PE2M | 670-1421 | 1 | Four door power supply with lock power and E2M enclosure |
Expansion Options
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| MR52-S3 | 120-2501 | 1 | Two door controller & auxiliary I/O 12/24VDC |
Ordering Information
| BluBØX Order # | Description |
|---|---|
| 752-2101 | LP1501 two reader, four input, four output access control system with lock power expandable to four doors |
