HID Reader and Card Comparison Charts

HID Prox 125 kHz Proximity – Readers

Download PDF: HID Prox 125 kHz Proximity – Reader.pdf

  1 ProxPoint Plus.jpg 2 MiniProx.jpg Thinline II.jpg 4_5_ProxPro.jpg 4_5_ProxPro.jpg 6 ProxPro with Keypad.jpg 7 Entry Proxy.jpg 8 Maxi Prox.jpg 9_Prox80.jpg

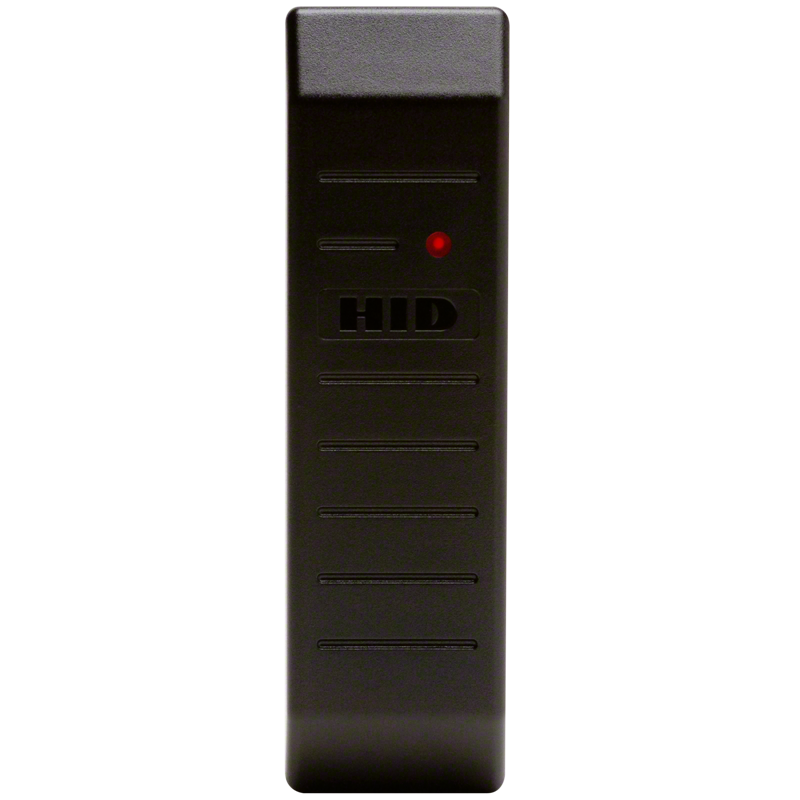

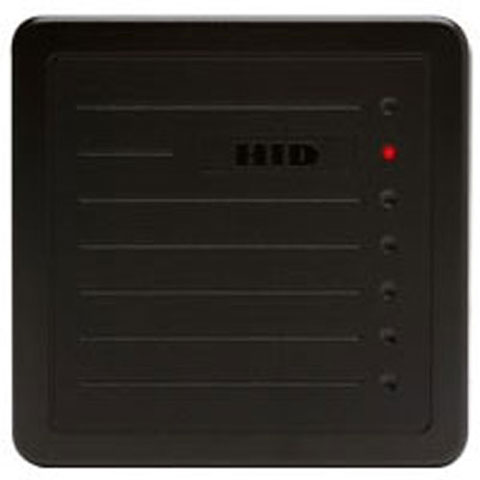

Model Name ProxPoint Plus® MiniProx® Thinline® II ProxPro® ProxPro® II ProxPro® with
Keypad

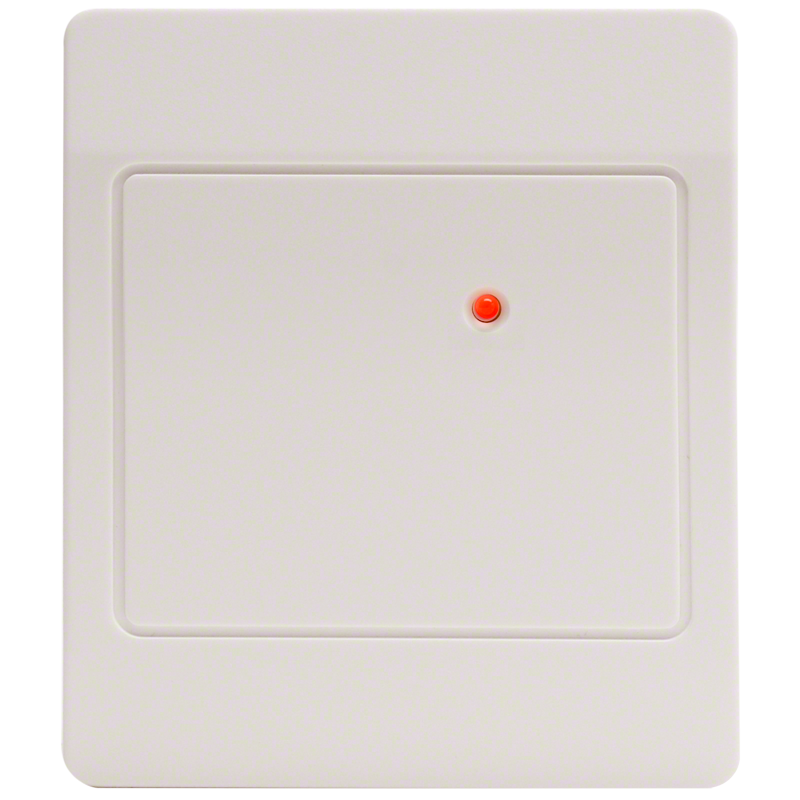

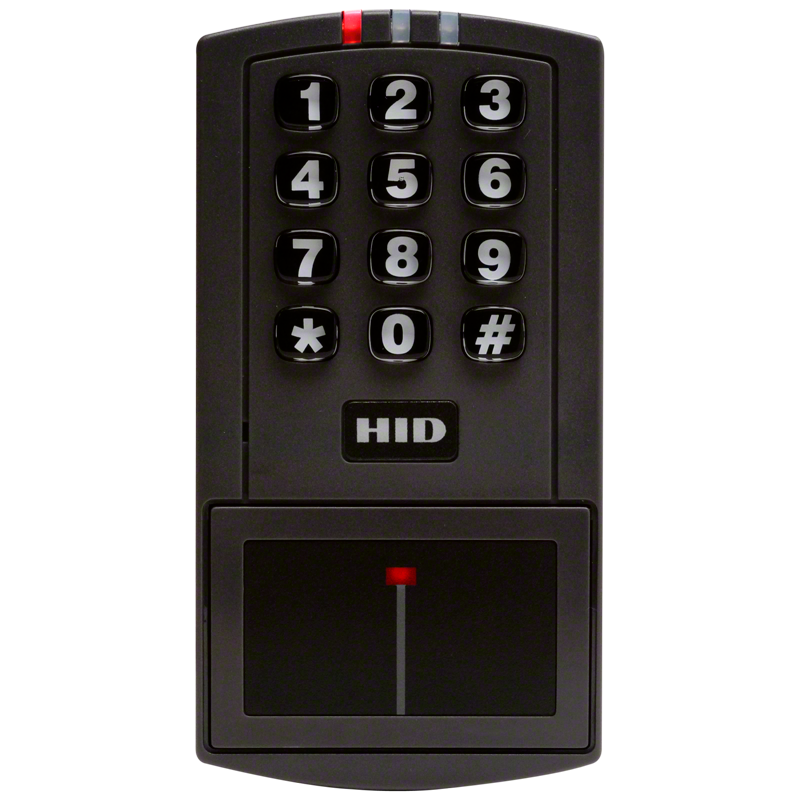

EntryProx MaxiProx® Prox80™
Base Model Number 6005B/6008B 5365E/5368E 5395C/5398C 5355A/5352A/
5358A
5455B/
5458B
5355A/5352A/
5358A
4045C 5375A 5405A/5408A
Dimensions 3.13˝ x 1.7˝ x 0.66˝ (8.0 cm x 4.5 cm
x 1.5 cm)
6.0˝ x 1.7˝ x 1.0˝ (15.0 cm x 4.5 cm
x 2.0 cm)
4.7˝ x 3.0˝ x .68˝ (12.0 cm x 7.5 cm
x 1.5 cm)
5.0˝ x 5.0˝ x 1.0˝
(12.5 cm x 12.5 cm x 2.5 cm)
5.0˝ x 5.0˝ x 1.0˝
(12.5 cm x 12.5 cm x 2.5 cm)
5.0˝ x 5.0˝ x 1.0˝
(12.5 cm x 12.5 cm x 2.5 cm)
5.25˝ x 2.75˝ x
1.37˝
(13.5 cm x 7.0 cm
x 3.5 cm)
12.0˝ x 12.0˝ x 1.0˝ (30.5 cm x 30.5 cm x 2.5 cm) 3.15˝ x 3.15˝ x 0.8˝ (8.0 cm x 8.0 cm x 2.0 cm)
Weight 3.6 oz (102 g) 7.89 oz (224 g) 7.33 oz (208 g) 9.62 oz (273 g) 13.65 oz (387 g) 9.62 oz (273 g) 11.76 oz (333 g) 50.8 oz (1440 g) 2.2 oz (63 g)
Read Range Up to 3.0˝ (7.5 cm) Up to 5.5˝ (14.0 cm) Up to 5.5˝ (14.0 cm) Up to 8.0˝ (20.5 cm) Up to 8.0˝ (20.5 cm) Up to 8.0˝ (20.5 cm) Up to 3.0˝ (7.5 cm) Up to 24.0˝ (61.0 cm) Up to 5.5˝ (14.0 cm)
Mounting Mullion Mullion Single-gang electrical box Single-gang electrical box; Glass Mount Kit Available Single-gang electrical box; Glass Mount Kit Available Single-gang electrical box; Glass Mount Kit Available US or EU single gang box, wall surface, or on glass with included adhesive pads Mount on nonmetallic surfaces for optimal read range performance. EU/Asian single-gang box
Power Supply 5-16 VDC 5-16 VDC 5-16 VDC 10-28.5 VDC 5-16 VDC 10-28.5 VDC 10-15 VDC 12 VDC or 24 VDC 5-16 VDC
Current Requirements 35 mA 35 mA 35 mA 155 mA 40 mA 155 mA 150 mA 200/700 mA @ 12 VDC 260 mA/1.2 A @ 24 VDC 35 mA
Termination Pigtail Pigtail or Terminal Strip Pigtail Pigtail Pigtail Terminal Strip Terminal Strip Terminal Strip Pigtail
Output Formats Wiegand or Clock-and-Data Wiegand or Clock-and-Data Wiegand or Clock-and-Data Wiegand, Clock-and-Data, RS-232 or RS-422 Wiegand or Clock-and-Data Wiegand, Clock-and-Data, RS-232 or RS-422 Wiegand Wiegand, Clockand-Data, RS-232, RS-422 and RS-485 Wiegand or Clock-and-Data
Tamper No No No Switch No Switch   Switch No
Indoor/ Outdoor Both Both Both Both Both Both Both Both Both
Warranty Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime  Lifetime Lifetime



HID iCLASS® 13.56 MHz Contactless – Credentials

Download PDF: iClass_13_56_MHz_Contactless_Credentials.pdf



  iclass1.jpg iclass2.jpg iclass3.jpg iclass2.jpg iclass3.jpg iclass2.jpg iclass7.jpg iclass8.jpg
Model Name iCLASS®
Clamshell
iCLASS® Card iCLASS® Card Embeddable iCLASS® Prox iCLASS®  Prox Embeddable iCLASS®
Wiegand
iCLASS® Key II iCLASS® Tag
Base Part Number 2080 200X/210X 211X 202X/212X 213X 204X 205X 206X
Read Range: *
R10/RW100 Up to 2.5˝ (6.5 cm) Up to 3.25˝ (8.0 cm) Up to 3.25˝ (8.0 cm) Up to 3.25˝ (8.0 cm) Up to 3.25˝ (8.0 cm) Up to 3.0˝ (7.5 cm) 2" (5.1 cm) 2" (5.1 cm)
R30/RW300 Up to 3.0˝ (7.5 cm) Up to 4.0˝ (10.0 cm) Up to 4.0˝ (10.0 cm) Up to 4.0˝ (10.0 cm) Up to 4.0˝ (10.0 cm) Up to 3.0˝ (7.5 cm) 2.2" (5.9 cm) 2.2" (5.9 cm)
R40/RW400 Up to 4.5˝ (10.0 cm) Up to 4.25˝ (11.0 cm) Up to 4.25˝ (11.0 cm) Up to 4.25˝ (11.0 cm) Up to 4.25˝ (11.0 cm) Up to 4.5˝ (11.5 cm) 2.7" (7.0 cm) 2.7" (7.0 cm)
RK40/RK400 Up to 4.0˝ (9.0 cm) Up to 3.5˝ (9.0 cm) Up to 3.5˝ (9.0 cm) Up to 3.5˝ (9.0 cm) Up to 3.5˝ (9.0 cm) Up to 2.5˝ (6.5 cm) 2" (5.1 cm) 2" (5.1 cm)
Memory Size/ Application Areas 2k bits with two areas 2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
HID Proximity
125 kHz
No No No Yes Yes No No No
Contact Smart Chip Module Embeddable No No Yes** No Yes** No No No
Wiegand Strip No No No No No Yes No No
Magnetic Stripe No Optional Optional Optional Optional Optional No No
Printable *** Yes Yes Yes Yes Yes Yes No No
Standard HID
Artwork
Optional Optional Optional Optional Optional Optional Yes Yes
Slot Punch Vertical Included Vertical Optional Vertical Optional Vertical Optional Vertical Optional Horizontal or Vertical Optional Key Ring Hole No
Visual Security
Options
N/A Yes Yes Yes Yes Yes N/A N/A
Additional Security
Options
Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite
Warranty Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime

HID Multi-Class SE® Readers

Download PDF: multiclass-se-readers-ds-en.pdf

Specifications:
  rp10.png rp15.png rp40_blk_6125_6123_6124_3_1_1.png rpk40.jpg
Model Name RP10 RP15   RP40 RPK40
Base Part Number 900P 900L

910P 910L

920P 920L 921P 921L
Typical Read Range1 13.56 MHz Single Technology ID-1 Cards – SIO Model Data 13.56 MHz Single Technology ID-1 Cards – SIO Model Data 13.56 MHz Single Technology ID-1 Cards – SIO Model Data 13.56 MHz Single Technology ID-1 Cards – SIO Model Data
Typical Read Range1 iCLASS Seos: 1.2" (3 cm)
iCLASS: 3.1" (8 cm)
MIFARE Classic: 2.8" (7 cm)
MIFARE DESFire EV1: 1.2" (3 cm)
iCLASS Seos: 1.2" (3 cm) iCLASS: 3.1" (8 cm) MIFARE Classic: 2.8" (7 cm) MIFARE DESFire EV1: 1.2" (3 cm) iCLASS Seos: 2.0" (5 cm) iCLASS: 4.7" (12 cm) MIFARE Classic: 4.7" (12 cm) MIFARE DESFire EV1: 2.0" (5 cm) iCLASS Seos: 1.6" (4 cm) iCLASS: 4.7" (12 cm) MIFARE Classic: 4.3" (11 cm) MIFARE DESFire EV1: 1.6" (4 cm)
Typical Read Range1 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model
Typical Read Range1 iCLASS: 1.6" (4 cm)
MIFARE Classic: 1.2" (3 cm)
iCLASS: 1.6" (4 cm) MIFARE Classic: 1.2" (3 cm) iCLASS: 2.4" (6 cm) MIFARE Classic: 2.0" (5 cm) iCLASS: 2.8" (7 cm) MIFARE Classic: 1.6" (4 cm)
Typical Read Range1 125 kHz Single Technology ID-1 Cards 125 kHz Single Technology ID-1 Cards 125 kHz Single Technology ID-1 Cards 125 kHz Single Technology ID-1 Cards
Typical Read Range1 HID Prox: 2.8" (7 cm)
Indala Prox: 1.6" (4 cm)
EM4102 Prox: 4.3" (11 cm)
HID Prox: 2.8" (7 cm) Indala Prox: 1.6" (4 cm) EM4102 Prox: 4.3" (11 cm) HID Prox: 2.8" (7 cm) Indala Prox: 2.0" (5 cm) EM4102 Prox: 4.3" (11 cm) HID Prox: 2.8" (7 cm) Indala Prox: 2.0" (5 cm) EM4102 Prox: 3.1" (8 cm)
Typical Read Range1 125 KHz Single Technology Tags/Fobs 125 KHz Single Technology Tags/Fobs 125 KHz Single Technology Tags/Fobs 125 KHz Single Technology Tags/Fobs
Typical Read Range1 HID Prox: 1.6" (4 cm)
Indala Prox: 0.8" (2 cm)
EM4102 Prox: 2.8" (7 cm)
HID Prox: 2.0" (5 cm) Indala Prox: 0.8" (2 cm) EM4102 Prox: 2.8" (7 cm) HID Prox: 2.0" (5 cm) Indala Prox: 1.2" (3 cm) EM4102 Prox: 2.8" (7 cm) HID Prox: 1.6" (4 cm) Indala Prox: 1.2" (3 cm) EM4102 Prox: 2.4" (6 cm)
Mounting Mini-Mullion Size; physically HID's smallest iCLASS readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface Mullion Size; physically HID's second smallest iCLASS readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing
Color Black Black Black Black
Keypad No No No No
Dimensions 1.9" x 4.1" x 0.9"
4.8 cm x 10.3 cm x 2.3 cm
1.9" x 6.0" x 0.9" 4.8 cm x 15.3 cm x 2.3 cm 3.3" x 4.8" x 1.0" 8.4 cm x 12.2 cm x 2.4 cm 3.3" x 4.8" x 1.1" 8.5 cm x 12.2 cm x 2.8 cm
Product Weight (Pigtail) 4.0oz (114g) 5.2oz (149g) 7.8oz (222g) 9.1oz (258g)
Product Weight (Terminal
Strip)
3.0oz (85g) 4.3oz (124g) 7.6oz (216g) 8.0oz (228g)
Operating Voltage Range 5-16 VDC, Linear supply recommended 5-16 VDC, Linear supply recommended 5-16 VDC, Linear supply recommended 5-16 VDC, Linear supply recommended
Current Draw - Standard Power Mode2 (mA) 75 75 85 95
Current Draw - Intelligent Power Management (IPM)
Mode2 (mA)
40 40 50 70
Peak Current Draw - Standard Power or IPM
Mode2 (mA)
200 200 200 200
NSC3 Power Consumption - Standard Power Mode
(W @ 16VDC)
1.2 1.2 1.4 1.5
NSC3 Power Consumption - w/ IPM (W @ 16VDC) 0.6 0.6 0.8 1.1
Operating Temperature -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C)
Storage Temperature -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C)
Operating Humidity 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing
Environmental Rating Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)
Transmit Frequency 13.56 MHz & 125 kHz 13.56 MHz & 125 kHz 13.56 MHz & 125 kHz 13.56 MHz & 125 kHz
13.56 MHz Card Compatibility Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN
125 kHz Card Compatibility HID Prox4, AWID4, Indala, EM41024 HID Prox4, AWID4, Indala, EM41024 HID Prox4, AWID4, Indala, EM41024 HID Prox4, AWID4, Indala, EM41024
Communications Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m)  (22AWG) - Use Shielded cable  for best results Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m)  (22AWG) - Use Shielded cable  for best results Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m)  (22AWG) - Use Shielded cable  for best results Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m)  (22AWG) - Use Shielded cable  for best results
Panel Connection Pigtail or Terminal Strip Pigtail or Terminal Strip Pigtail or Terminal Strip Pigtail or Terminal Strip
Certifications UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea)4, NCC (Taiwan)4, iDA (Singapore)4, RoHS , FIPS-201 Transparent FASC-N Reader UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea)4, NCC (Taiwan)4, iDA (Singapore)4, RoHS , FIPS-201 Transparent FASC-N Reader UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea)4, NCC (Taiwan)4, iDA (Singapore)4, RoHS , FIPS-201 Transparent FASC-N Reader UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea)4, NCC (Taiwan)4, iDA (Singapore)4, RoHS , FIPS-201 Transparent FASC-N Reader
Cryto Processor Hardware Common Criteria Rating EAL5+ EAL5+ EAL5+ EAL5+
Patents US7180403, US7439862, US7124943, US5952935, US6058481, US6337619 US7180403, US7439862, US7124943, US5952935, US6058481, US6337619 US7180403, US7439862, US7124943, US5952935, US6058481, US6337619 US7180403, US7439862, US7124943, US5952935, US6058481, US6337619
Housing Material UL94 Polycarbonate UL94 Polycarbonate UL94 Polycarbonate UL94 Polycarbonate
Manufactured with % of recycled content (Pigtail) 10.5% 11.0% 11.0% 10.5%
Manufactured with % of recycled content (Terminal
Strip)
10.5% 11.0% 11.0% 11.0%
UL Ref Number RP10E RP15E RP15E RP40E
Warrenty Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime

HID iClass SE® Readers

Download PDF: iClass-se-readers.pdf

Specifications:
  rp10.png rp15.png rp40_blk_6125_6123_6124_3_1_1.png rpk40_blk_6136_6133_6134_2_1.png original.jpg
Model Name RP10 RP15   R40 RK40 R90
Base Part Number 900N 910N 920N 921N 940N
Typical Read Range1 13.56 MHz Single Technology ID-1 Cards – SIO Data Model 13.56 MHz Single Technology ID-1 Cards – SIO Data Model 13.56 MHz Single Technology ID-1 Cards – SIO Data Model 13.56 MHz Single Technology ID-1 Cards – SIO Data Model 13.56 MHz Single Technology ID-1 Cards – SIO Data Model
Typical Read Range1 iCLASS Seos: 2.4" (6 cm) iCLASS: 3.6" (9 cm) MIFARE Classic: 2.4" (6 cm) MIFARE DESFire EV1: 2.4" (6 cm) iCLASS Seos: 2.4" (6 cm) iCLASS: 3.6" (9 cm) MIFARE Classic: 2.4" (6 cm) MIFARE DESFire EV1: 2.4" (6 cm) iCLASS Seos: 3.2" (8 cm) iCLASS: 5.2" (13 cm) MIFARE Classic: 3.9" (10 cm) MIFARE DESFire EV1: 3.2" (8 cm) iCLASS Seos: 2.0" (5 cm) iCLASS: 5.5" (14 cm) MIFARE Classic: 5.1" (13 cm) MIFARE DESFire EV1: 2.0" (5 cm) iCLASS Seos: 5.9" (15 cm) iCLASS: 14.2" (36 cm) MIFARE Classic: 9.4" (24 cm) MIFARE DESFire EV1: 5.9" (15 cm)
Typical Read Range1 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model 13.56 MHz Single Technology Tags/Fobs – SIO Data Model
Typical Read Range1 iCLASS: 1.6" (4 cm) MIFARE Classic: 1.2" (3 cm) iCLASS: 1.6" (4 cm) MIFARE Classic: 1.2" (3 cm) iCLASS: 2.8" (7 cm) MIFARE Classic: 2.0" (5 cm) iCLASS: 3.1" (8 cm) MIFARE Classic: 2.0" (5 cm) iCLASS: 7.5" (19 cm) MIFARE Classic: 3.1" (8 cm)
Mounting Mini-Mullion Size; physically HID's smallest iCLASS® readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface Mullion Size; physically HID's second smallest iCLASS readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing Mounts on any standard back boxes or any flat surface
Color Black Black Black Black Black
Keypad No No No No No
Dimensions 1.9" x 4.1" x 0.9"
4.8 cm x 10.3 cm x 2.3 cm
1.9" x 6.0" x 0.9" 4.8 cm x 15.3 cm x 2.3 cm 3.3" x 4.8" x 1.0" 8.4 cm x 12.2 cm x 2.4 cm 3.3" x 4.8" x 1.1" 8.5 cm x 12.2 cm x 2.8 cm 13.1" x 13.1" x 1.55" 33.3cm x 33.3cm x 3.9cm
Product Weight (Pigtail) 3.9 oz (113g) 5.3 oz (151g) 7.7 oz (220g) 9.0 oz (256g) N/A
Product Weight (Terminal
Strip)
2.9 oz (84g) 4.2 oz (120g) 7.5 oz (215g) 8.0oz (226g) 4lb 1oz (1844g)
Operating Voltage Range 5-16 VDC 5-16 VDC 5-16 VDC 5-16 VDC 12 VDC or 24 VDC
Current Draw - Standard Power Mode2 (mA) 60 @ 16V 60 @ 16V 65 @ 16V 85 @ 16V 110 @ 12V
Current Draw - Intelligent Power Management (IPM)
Mode2 (mA)
35 @ 16V 35 @ 16V 40 @ 16V 60 @ 16V 30 @ 12V
Peak Current Draw - Standard Power or IPM
Mode2 (mA)
200 @ 16V 200 @ 16V 200 @ 16V 220 @ 16V 300 @ 12V
NSC3 Power Consumption - Standard Power Mode
(W @ 16VDC)
1.0 @ 16V 1.0 @ 16V 1.0 @ 16V 1.4 @ 16V 1.3 @ 12V
NSC3 Power Consumption - w/ IPM (W @ 16VDC) 0.6 @ 16V 0.6 @ 16V 0.6 @ 16V 1 @ 16V .4 @ 12V
Operating Temperature -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C) -31º to 150º F (-35º to 65º C)
Storage Temperature -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C) -67º to 185º F (-55º to 85º C)
Operating Humidity 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing 5% to 95% relative humidity non-condensing
Environmental Rating Indoor/Outdoor IP55; IP65 if installed with optional gasket Indoor/Outdoor IP55; IP65 if installed with optional gasket Indoor/Outdoor IP55; IP65 if installed with optional gasket Indoor/Outdoor IP55; IP65 if installed with optional gasket IP65
Transmit Frequency 13.56 MHz 13.56 MHz 13.56 MHz 13.56 MHz 13.56 MHz
13.56 MHz Card Compatibility Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN
Communications Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
Panel Connection Pigtail or Terminal Strip Pigtail or Terminal Strip Pigtail or Terminal Strip Pigtail or Terminal Strip Terminal Strip
Certifications UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS201 Transparent FASC-N Reader4, MIC (Japan)4 UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS201 Transparent FASC-N Reader4, MIC (Japan)4 UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS201 Transparent FASC-N Reader4, MIC (Japan)4 UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS201 Transparent FASC-N Reader4, MIC (Japan)4 UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS201 Transparent FASC-N Reader4, MIC (Japan)4
Cryto Processor Hardware Common Criteria Rating EAL5+ EAL5+ EAL5+ EAL5+ EAL5+
Patents www.hidglobal.com/patents www.hidglobal.com/patents www.hidglobal.com/patents www.hidglobal.com/patents www.hidglobal.com/patents
Housing Material UL94 Polycarbonate UL94 Polycarbonate UL94 Polycarbonate UL94 Polycarbonate UL94 Polycarbonate
Manufactured with % of recycled content (Pigtail) 10.5% 11.0% 10.5% 10.9% N/A
Manufactured with % of recycled content (Terminal
Strip)
11.0% 11.5% 11.0% 12.4% 11.00%
UL Ref Number R10E R15E R40E RK40E R90E
Warrenty Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime

Limited Lifetime

HID Read Range Chart

Download PDF: hid-read-range_chart.pdf

HID Global literature specifies the typical read range to be expected for each of our readers. In every case for every reader, the read range performance is expressed as a span of distance. In the case of the ProxPro® reader, for instance, the typical read range is specified to be from 5.5 inches to 8 inches (14 - 20 cm). This is not a statement indicating that every reader in every environment will achieve a 8 inch read range. It specifically indicates that a reader with a 5.5 inch read range meets the factory specifications - when used with the reference card, the ProxCard® II proximity card.

The thin card models, ISOProx® card, DuoProx® card, Smart ISOProx® II, Smart DuoProx® II, and the HID Proximity and MIFARE® card use an antenna with significanly less gain than the Prox Card II proximity card. As a result, the read range with any of these cards, when used with the ProxPro reader, will be more on the order of 4 inches to 7 inches (10 - 18 cm). Performance within these limits meets the factory specifications.

It is important to note that in no case does HID Global guarantee a minimum read range. This is impossible to achieve because all radio frequency products that are “type” certified by the regulatory agencies (FCC, Canada Radio, CE, etc.) must accept the local interference created by other devices. As a result, a reader in a particularly high RF noise environment could exhibit very short read range - shorter than that listed in our specifications. This is why our specifications illustrate typical performance.

The chart below provides typical read ranges of each of our readers when used in combination with each of our cards or transponders.

  proxypointplus.png miniprox_blk.png thinline.png download.jpg proxpro-ii-5455.jpg prox80_5405_wht_.png maxiprox__99679.1307471736.1280.1280.jpg entryprox.png
Product   ProxPoint® Plus  MiniProx® ThinLine® II   ProxPro®  ProxPro® II  Prox80™ MaxiProx® EntryProx®
ProxCard®II 5.1 cm - 7.6 cm 2.0” - 3.0” 5.1 cm - 7.6 cm 2.0” - 3.0” 10.2 cm - 14.0 cm 4.0” - 5.5” 10.2 cm - 14.0 cm 4.0” - 5.5” 10.2 cm - 14.0 cm 4.0” - 5.5” 14.0 cm - 20.3 cm 5.5” - 8.0” 15.2 cm - 22.9 cm 6.0” - 9.0” 10.2 cm - 14.0cm 4.0” - 5.5”
IsoProx® II 3.8 cm - 6.35 cm 1.5” - 2.5” 3.8 cm - 6.35 cm 1.5” - 2.5” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 10.2 cm - 17.8 cm 4.0” - 7.0” 12.5 cm - 20 cm 5.0” - 8.0” 7.6 cm - 12.7 cm 3.0” - 5.0”
DuoProx® II 3.8 cm - 6.35 cm 1.5” - 2.5” 3.8 cm - 6.35 cm 1.5” - 2.5” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 10.2 cm - 17.8 cm 4.0” - 7.0” 12.5 cm - 20 cm 5.0” - 8.0” 7.6 cm - 12.7 cm 3.0” - 5.0”
Smart IsoProx® II 3.8 cm - 6.35 cm 1.5” - 2.5” 3.8 cm - 6.35 cm 1.5” - 2.5” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 10.2 cm - 17.8 cm 4.0” - 7.0” 12.5 cm - 20 cm 5.0” - 8.0” 7.6 cm - 12.7 cm 3.0” - 5.0”
Smart DuoProx® II 3.8 cm - 6.35 cm 1.5” - 2.5” 3.8 cm - 6.35 cm 1.5” - 2.5” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 10.2 cm - 17.8 cm 4.0” - 7.0” 12.5 cm - 20 cm 5.0” - 8.0” 7.6 cm - 12.7 cm 3.0” - 5.0”
iCLASS® Prox 3.8 cm - 6.35 cm 1.5” - 2.5” 3.8 cm - 6.35 cm 1.5” - 2.5” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 10.2 cm - 17.8 cm 4.0” - 7.0” 12.5 cm - 20 cm 5.0” - 8.0” 7.6 cm - 12.7 cm 3.0” - 5.0”
Proximity & Mifare® 3.8 cm - 6.35 cm 1.5” - 2.5” 3.8 cm - 6.35 cm 1.5” - 2.5” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 7.6 cm - 12.7 cm 3.0” - 5.0” 10.2 cm - 17.8 cm 4.0” - 7.0” 12.5 cm - 20 cm 5.0” - 8.0” 7.6 cm - 12.7 cm 3.0” - 5.0”
Proxcard® Plus 1.2 cm - 2.5 cm 0.5” - 1.0” 1.2 cm - 2.5 cm 0.5” - 1.0” 2.5 cm - 5.1 cm 1.0” - 2.0” 2.5 cm - 5.1 cm 1.0” - 2.0” 2.5 cm - 3.8 cm 1.0” - 1.5” 5.1 cm - 7.6 cm 2.0” - 3.0” 5.1 cm - 10.2 cm 2.0” - 4.0” 2.5 cm - 3.8 cm 1.0” - 1.5”
ProxKey® II 2.5 cm - 3.8 cm 1.0” - 1.5” 2.5 cm - 3.8 cm 1.0” - 1.5” 2.5 cm - 5.1 cm 1.0” - 2.0” 2.5 cm - 5.1 cm 1.0” - 2.0” 2.5 cm - 5.1 cm 1.0” - 2.0” 2.5 cm - 7.6 cm 1.0” - 3.0” 5.1 cm - 10.2 cm 2.0” - 4.0” 2.5 cm - 5.1 cm 1.0” - 2.0”
MIcroProx® 1.2 cm - 5.1 cm 0.5” - 2.0” 1.2 cm - 5.1 cm 0.5” - 2.0” 1.2 cm - 6.4 cm 0.5” - 2.5” 1.2 cm - 6.4 cm 0.5” - 2.5” 2.5 cm - 7.6 cm 1.0” - 3.0” 2.5 cm - 10.2 cm 1.0” - 4.0” 2.5 cm - 11.4 cm 1.0” - 4.5” 1.2 cm - 6.4 cm 0.5” - 2.5”
ProxPass® II N/A N/A N/A N/A N/A N/A N/A N/A
