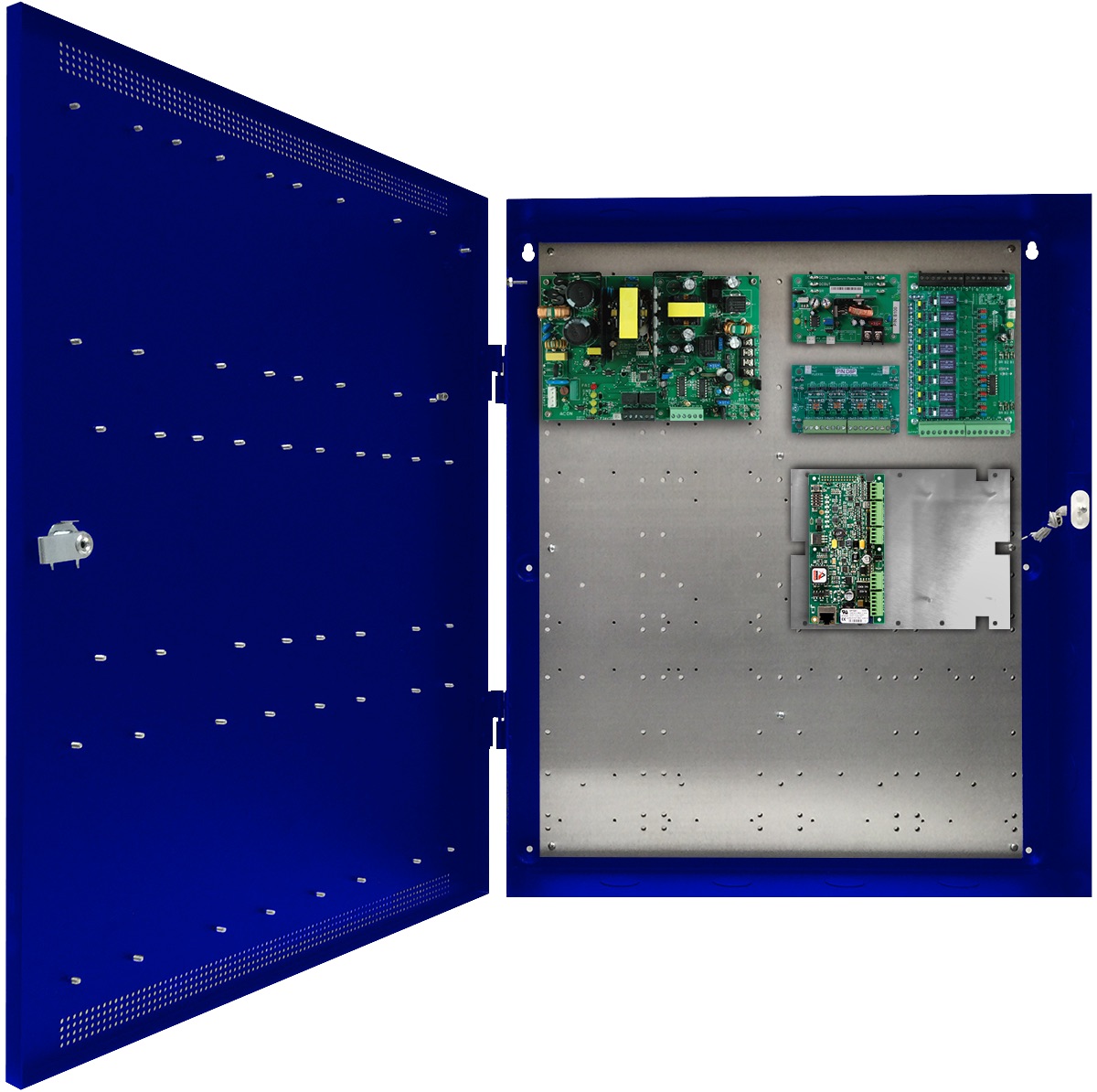

BluCHIP 1501-1R/2I/2O-E4M1L

 Printer Friendly Version

BluCHIP 1501 One Reader / Two Input / Two Output Access Control System

The BluCHIP 1501-1R/2I/2O-E4M1 is a unified one reader, two input, two output access control system with managed lock power and expansion up to eight doors. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. It includes a LP1501 board, a locking eight door enclosure with tamper, power supply, managed lock power and wiring speed kit. It is expandable to eight readers with one MR50-S3 board and three MR52-S3 boards. Configuration, administration and control are available through BluSKY.

 Click to view PDF:  752-1501.pdfBluCHIP 1501-1R/2I/2O-E4M1L

System Features

FPO offline power supply

  1. 120 or 230 VAC input
  2. 12 and 24 VDC outputs
  3. On board Fire Alarm Interface
  4. Continuous and resettable DC

Distributed output module

  1. Four, controlled fused at 3A each
  2. Eight, auxiliary Class II P limited at 2.5A each

Expansion options

  1. Increased power, multiple voltages
  2. Additional distribution outputs
  3. Power management

Enclosure Features

Labor saving design

  1. Unified power and security in one enclosure
  2. Pre-wired power section
  3. Removable backplate simplifies installs
  4. Speed kit is included for power and data wiring
  5. Includes mounting studs on door to add additional I/O boards.

Additional benefits

  1. Wire management room
  2. 4.5” enclosure depth fits battery set
  3. Tamper switch, lock, dual key set standard
  4. Mounting hardware for access boards included

Specifications

Input Power:
  1. Input 120/230VAC 50/60Hz | 200 Watts
  2. Overload and short circuit protection
  3. Over temperature protection
  4. Polarized AC power supply disconnect

Output Power:

  1. 150W Total Output Power | 12VDC/6A or 24VDC/6A
  2. 5-18VDC @ 4A Max. | FPO Board Outputs: Continuous (DC1), Resettable (DC2)
  3. 8 Lock Outputs, 8 Auxiliary Outputs, Class 2 PL @ 2.5A each
  4. 120mV Output Voltage Ripple | System Efficiency: 88% | System BTU Rating: 66 BTU/Hr

Battery Charging:

  1. Independent built-in 2A (FPO150) Charger for sealed lead-acid or gel type batteries
  2. Microprocessor dual rate charging of 12 or 24V battery sets
  3. Automatic switchover to standby battery when AC fails
  4. Zero voltage drop when switched over to battery backup
Regulatory Compliance:
  1. UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527, CSA C22.2 #107.1, FCC Part 15, CSFM Approved

Access Panel:

  1. (1) LP1501
    1. 1 Reader | 2 Inputs | 2 Outputs

Size and Weight:

  1. 24.00”H x 16.00”W x 4.50”D | 41 lbs

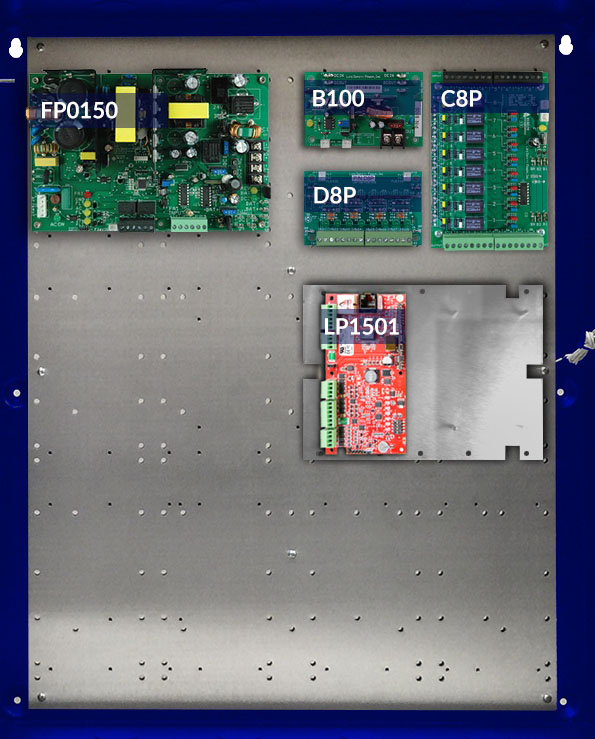

Recommended board layout
BluCHIP 1501-1R/2I/2O-E4M1L Labels

Kit Includes

MFG Part # BluBØX Order # QTY Description
LP1501 120-1001 1 One door DB controller Ethernet PoE/12V
E2M-SK-3 577-3005 1 Three board precut and harnessed power and data wiring kit
LP1501-MR50 640-1400 1 LP1501-MR50 bracket
FPO150-B100C8PD8PE4M1 670-1475 1 Eight door power supply with lock power and E4M1 enclosure

Expansion Options

MFG Part # BluBØX Order # QTY Description
MR50-S3 120-2301 1 One door controller & auxiliary I/O 12/24VDC
MR52-S3 120-2501 3 Two door controller & auxiliary I/O 12/24VDC

Ordering Information

BluBØX Order # Description
752-1501 LP1501 one reader, two input, two output access control system with lock power expandable to eight doors
