BluCHIP 1501-8R/28I/22O-E4M1 (752-3601)
BluCHIP 1501 Eight Reader / Twenty-eight Input / Twenty-two Output Access Control System
The BluCHIP 1501-8R/28I/22O-E4M1 is a unified eight reader, twenty eight input, twenty-two output access control system. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. It includes a LP1501 board, MR50-S3 board, three MR52-S3 boards, a locking eight door enclosure with tamper, power supply and wiring speed kit. Configuration, administration and control are available through BluSKY.
Click to view PDF: 752-3601.pdf
System Features
FPO offline power supply
- 120 or 230 VAC input
- 12 and 24 VDC outputs
- On board Fire Alarm Interface
- Continuous and resettable DC
Distributed output module
- Four, controlled fused at 3A each
- Eight, auxiliary Class II P limited at 2.5A each
Expansion options
- Increased power, multiple voltages
- Additional distribution outputs
- Power management
Enclosure Features
Labor saving design
- Unified power and security in one enclosure
- Pre-wired power section
- Removable backplate simplifies installs
- Speed kit is included for power and data wiring
- Includes mounting studs on door to add additional I/O boards
Additional benefits
- Wire management room
- 4.5” enclosure depth fits battery set
- Tamper switch, lock, dual key set standard
- Mounting hardware for access boards included
Specifications
Input Power:
- Input 120/230VAC 50/60Hz | 200 Watts
- Overload and short circuit protection
- Over temperature protection
- Polarized AC power supply disconnect
- 150W Total Output Power | 12VDC/12A or 24VDC/6A
- 5-18VDC @ 4A Max. | FPO Board Outputs: Continuous (DC1), Resettable (DC2)
- 8 Auxiliary Outputs, Class 2 PL @ 2.5A each
- 120mV Output Voltage Ripple | System Efficiency: 88% | System BTU Rating: 66 BTU/Hr
- Independent built-in 2A (FPO150) Charger for sealed lead acid or gel type batteries
- Microprocessor dual rate charging of 12 or 24V battery sets
- Automatic switchover to standby battery when AC fails
- Zero voltage drop when switched over to battery backup
Regulatory Compliance:
- UL294, UL603, UL864, UL1076, UL1481, UL2044, UL2572, ULC S318, ULC S319, ULC S527, CSA C22.2 #107.1, FCC Part 15, CSFM Approved
- (1) EP1501, (1) MR50-S3, (1) MR52-S3
- 8 Readers | 28 Inputs | 22 Outputs
- 24.00”H x 16.00”W x 4.50”D | 41 lbs.
Layout

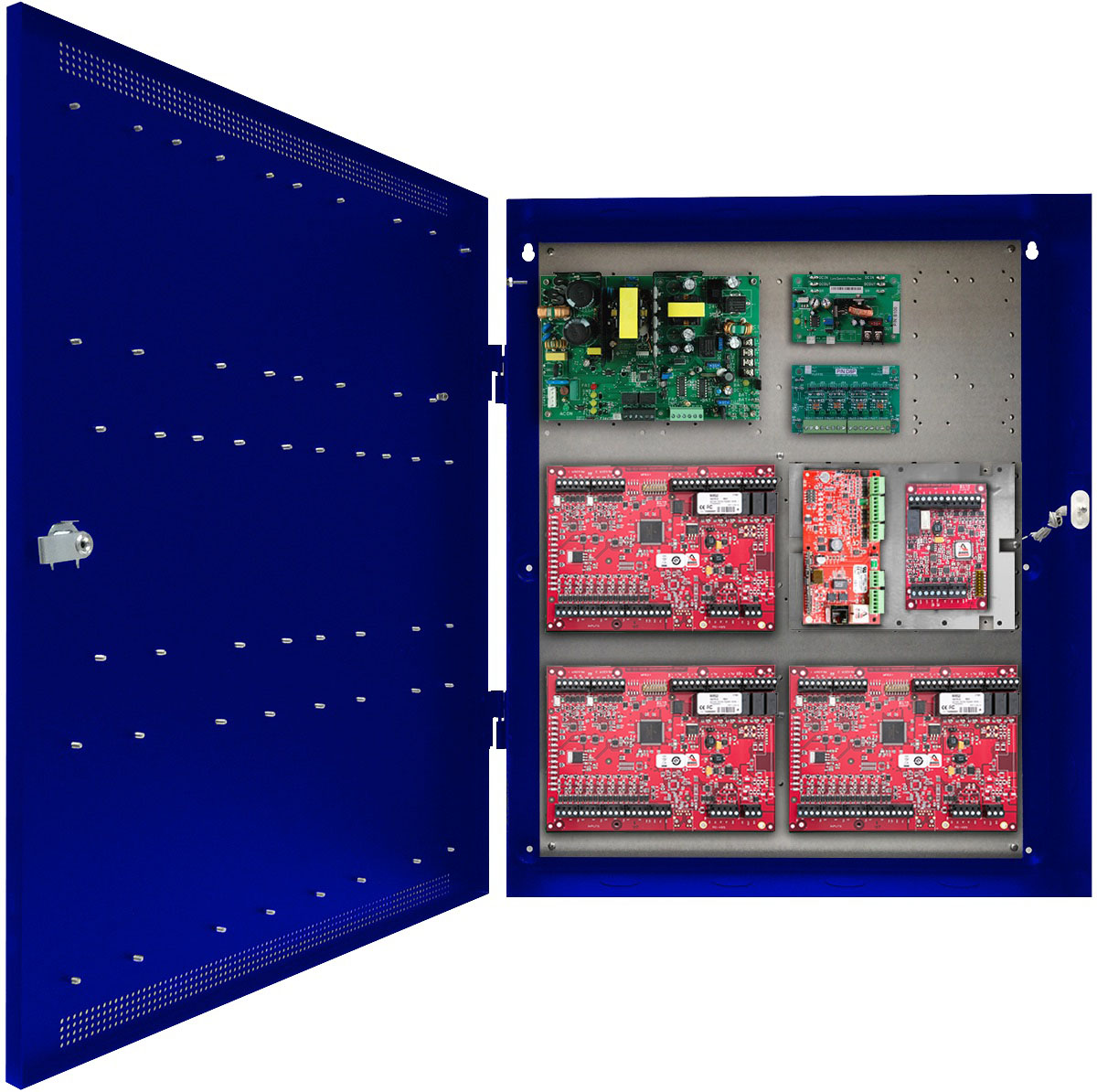

Recommended board layout
Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| LP1501 | 120-1001 | 1 | One door DB controller Ethernet PoE/12V |
| MR50-S3 | 120-2301 | 1 | One door controller & auxiliary I/O 12/24VDC |
| MR52-S3 | 120-2501 | 3 | Two door controller & auxiliary I/O 12/24VDC |
| E4M-SK-5 | 577-3015 | 1 | Five board precut DC power and RS485 wiring kit |
| LP1501-MR50 | 640-1400 | 1 | LP1501-MR50 bracket |
| FPO150-B100D8PE4M1 | 670-1385 | 1 | Eight door power supply with E4M1 enclosure |
Ordering Information
| BluBØX Order # | Description |
|---|---|
| 752-3601 | LP1501 eight reader, twenty-eight input, twenty-two output access control system for eight doors |
