BluCHIP 1501E-1R/2I/2O-E1M (751-1201)
Mercury LP1501 Edge Solution One Reader/ Two Input/ Two Output System for Two Doors

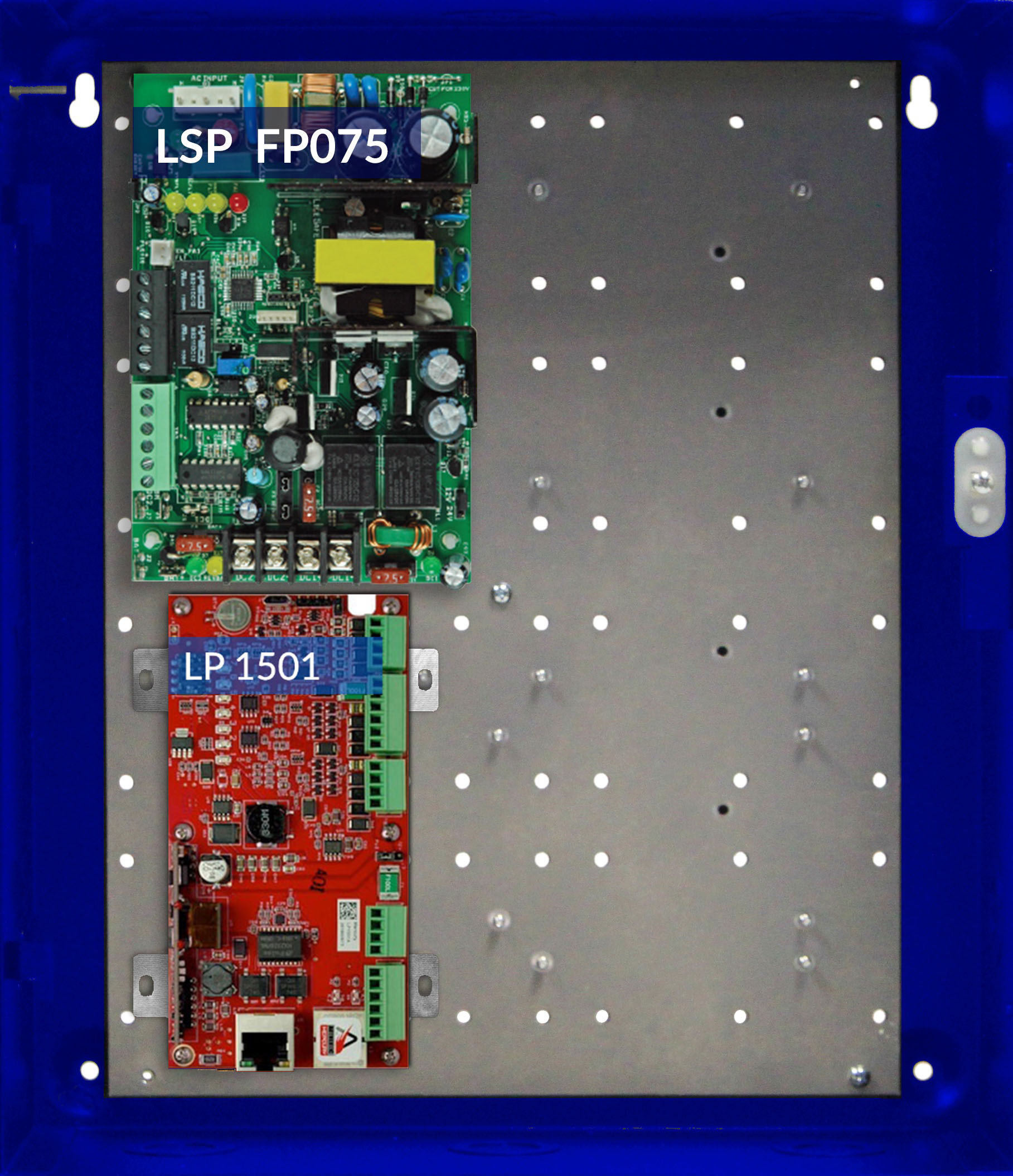

The BluCHIP 1501E-1R/2I/2O-E1M is a unified Edge Solution One Reader/Two Input/Two Output System for two doors and expansion space to support one additional reader. It includes a Mercury LP1501 board with locking enclosure with tamper and power supply. It is expandable to two readers with one Mercury MR51e board.
Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| LP1501 | 120-1001 | 1 | Mercury LP1501: One door DB controller Ethernet PoE/12V |
| FPO75-E1M | 670-1310 | 1 | LifeSafety Power: Single voltage power supply, includes enclosure |
Expansion Options
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| MR51e | 120-2400 | 1 | Mercury MR51e: One Door Controller Ethernet PoE/12V |
Ordering Information
| BluBØX Order # | Description |
|---|---|
| 751-1201 | Mercury LP1501 Edge Solution One Reader/Two Input/Two Output System for Two Doors |
