Kits Using the EP1502

Overview

BluBØX kits that use the Mercury EP1502 are intended for larger systems. The EP1502 is capable of handling up to 64 Readers, 520 Inputs and 516 Outputs, depending on which SIO Boards are selected. The Controller is also capable of handling up to 250,000 users and can have up to 8 card types. In this section of training, we take a look at some of the kits that we offer based off the Mercury EP1502.

Check out all of the Mercury EP1502 Kits we offer!

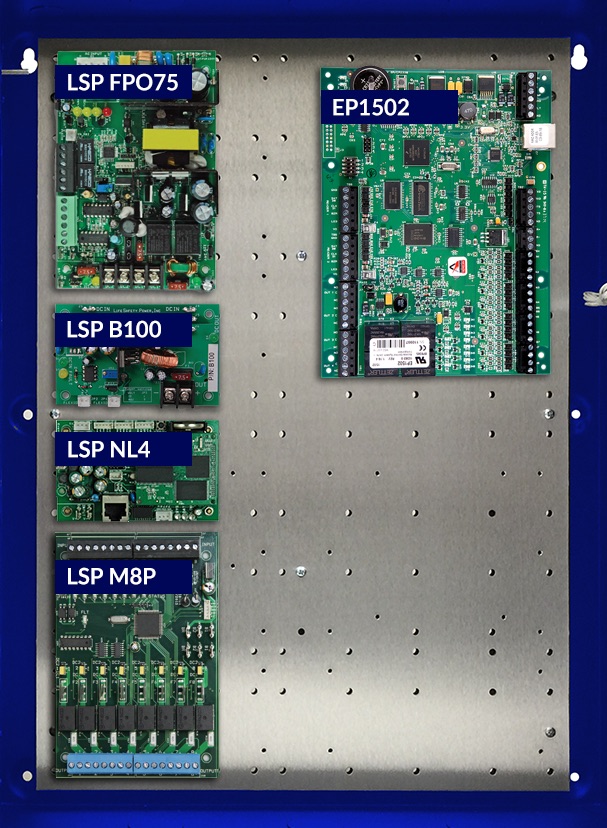

Mercury EP1502 Two Reader/ Eight Input/ Four Output System w/ Managed Lock Power and Power Management for Four Doors

The BluCHIP 1502-2R/8I/4O-E2MLPM is a unified Two Reader/ Eight Input/Four Output System w/ Managed Lock Power and Power Management for Four Doors and expansion space to support two additional readers. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes a Mercury EP1502 board, a locking four door enclosure with tamper, power supply and wiring speed kit. Local managed lock power, power monitor and control is included. It is expandable to four readers with one Mercury MR52 board. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1502 120-1100 1 Mercury EP1502: Two door DB controller Ethernet 12/24VDC Auxiliary I/O
E2ML-SK-2T 577-3030 1 BluBØX E2ML-SK-2T Speed Kit: Two board precut DC power, RS485 and lock trigger wiring kit
FPO75-B100M8PNL4E2M 670-1461 1 LifeSafety Power: Four door power supply w/ power distribution and management, includes enclosure

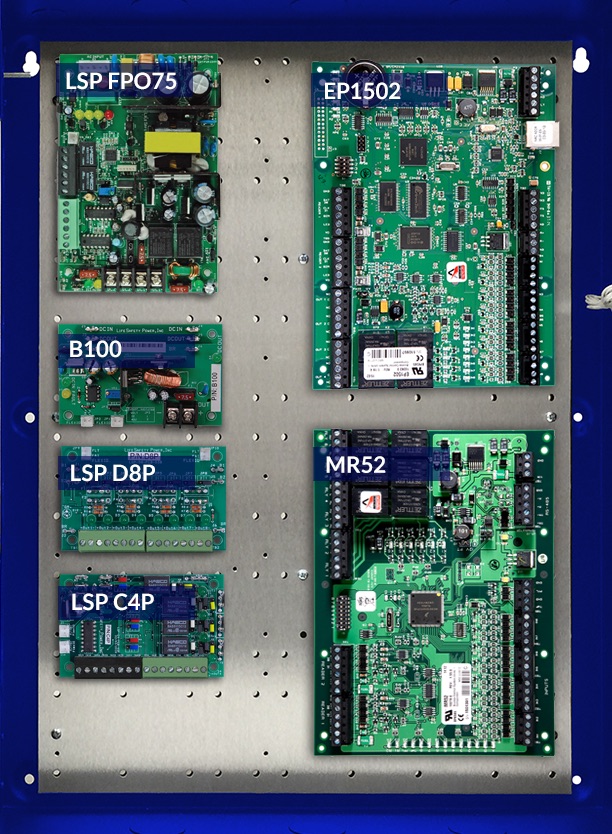

Mercury EP1502 Four Reader/ Sixteen Input/ Ten Output System w/ Managed Lock Power for Four Doors

The BluCHIP 1502-4R/16I/10O-E2ML is a unified Four Reader/ Sixteen Input/Ten Output System w/ Managed Lock Power for Four Doors. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes a Mercury EP1502 and a Mercury MR52 board, a locking four door enclosure with tamper, power supply and wiring speed kit. Local managed lock power is included. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1502 120-1100 1 Mercury EP1502: Two door DB controller Ethernet 12/24VDC Auxiliary I/O
MR52 120-2500 1 Mercury MR52: Two door controller & auxiliary I/O 12/24VDC
E2ML-SK-2T 577-3030 1 BluBØX E2ML-SK-2T Speed Kit: Two board precut DC power, RS485 and lock trigger wiring kit
FPO75-B100C4PD8PE2M 670-1421 1 LifeSafety Power: Four door power supply w/ power distribution, includes enclosure

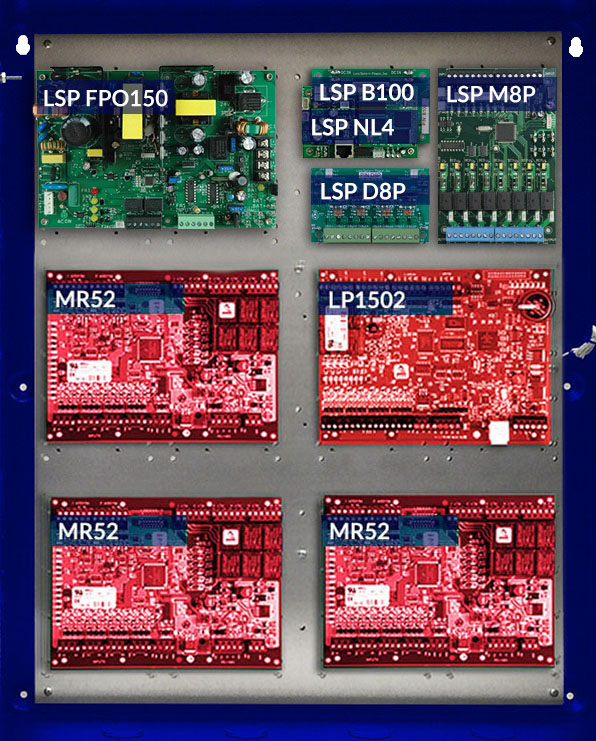

Mercury EP1502 Eight Reader/Thirty-Two Input/Twenty-Eight Output w/ Managed Lock Power and Power Management for Eight Doors

The BluCHIP 1502-8R/32I/28O-E4M1LPM is a unified 8 Reader/ 32 Input/ 28 Output kit with Managed Lock Power and Power & Management for Eight (8) Doors. The kit is configured with space to add a backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes one (1)  Mercury EP1502, three (3) Mercury MR52 boards, a locking eight-door enclosure with tamper switch, a power supply and a speed wiring kit. Locally managed lock power and power monitoring & control are included. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1502 120-1100 1 Mercury EP1502: Two door DB controller Ethernet 12/24VDC Auxiliary I/O
MR52 120-2500 3 Mercury MR52: Two door controller & auxiliary I/O 12/24VDC
E4ML-SK-4T 577-3040 1 BluBØX E4ML-SK-4T Speed Kit: Four board precut DC power, RS485 and lock trigger wiring kit
FPO150-B100M8PD8PNL4E4M1-NLKIT 670-1463 1 LifeSafety Power: Eight door power supply w/ power distribution and management, includes enclosure
