Kits Using the EP1501

Overview

BluBØX kits that use the Mercury EP1501 are intended for smaller systems. The EP1501 is capable of handling up to 17 Readers, 130 Inputs and 130 Outputs, depending on which SIO Boards are selected. The Controller is also capable of handling up to 250,000 users and can have up to 8 card types. In this section of training, we take a look at some of the kits that we offer based off the Mercury EP1501.

Check out all of the Mercury EP1501 Kits we offer!

System Features

FPO offline power supply

  1. 120 or 230 VAC input
  2. 12 and 24 VDC outputs
  3. On board Fire Alarm Interface
  4. Continuous and resettable DC

Distributed output module

  1. Four, controlled fused at 3A each
  2. Eight, auxiliary Class II P limited at 2.5A each

Expansion options

  1. Increased power, multiple voltages
  2. Additional distribution outputs
  3. Power management

Enclosure Features

Labor saving design

  1. Unified power and security in one enclosure
  2. Pre-wired power section
  3. Removeable backplate simplifies installs
  4. Speed kit is included for power and data wiring

Additional benefits

  1. Wire management room
  2. 4.5” enclosure depth fits battery set
  3. Tamper switch, lock, dual key set standard
  4. Mounting hardware for access boards included



Mercury EP1501 One Reader/ Two Input/ Two Output System for Four Doors

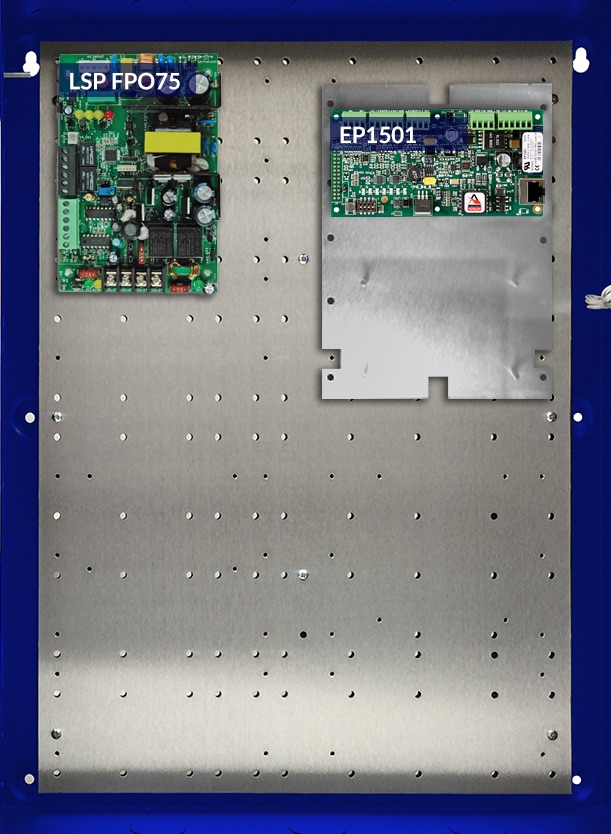

The BluCHIP 1501-1R/2I/2O-E2M is a unified One Reader/Two Input/Two Output System for Four Doors and expansion space to support three additional readers. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 12 or 24VDC. It includes a Mercury EP1501 board, a locking four door enclosure with tamper, power supply and wiring speed kit. It is expandable to four readers with one Mercury MR50 and one Mercury MR50 and one Mercury MR52 board. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1501 120-1000 1 Mercury EP1501: One door DB controller Ethernet PoE/12V
E2M-SK-3 577-3005 1 BluBØX E2M-SK-3 Speed Kit: Three board precut and harnessed power and data wiring kit
EP1501-MR50 640-1400 1 BluBØX EP1501-MR50 Bracket
FPO75-E2M 670-1320 1 LifeSafety Power: single voltage power supply, includes enclosure



Mercury EP1501 Two Reader/ Four Input/ Four Output System w/ Managed Lock and Power Management for Eight Doors

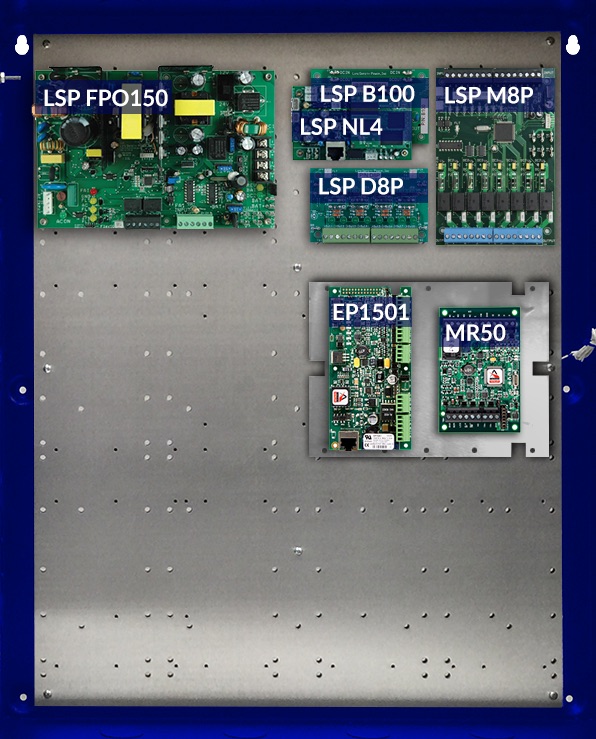

The BluCHIP 1501-2R/4I/4O-E4M1LPM is a unified Two Reader/ Four Input/Four Output System with Managed Lock Power and Management for Eight Doors and expansion space to support six additional readers. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes a Mercury EP1501 and Mercury MR50 board, a locking eight door enclosure with tamper, power supply and wiring speed kit. Local managed lock power, power monitor and control is included. It is expandable to eight readers with three Mercury MR52 boards. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1501 120-1000 1 Mercury EP1501: One door DB controller Ethernet PoE/12V
MR50 120-2300 1 Mercury MR50: One door controller 12/24VDC
E4ML-SK-5T 577-3045 1 BluBØX E4ML-SK-5T Speed Kit: Five board precut DC power, RS485 and lock trigger wiring kit
EP1501-MR50 640-1400 1 BluBØX EP1501-MR50 Bracket
FPO150-B100M8PD8PNL4E4M1-NLKIT 670-1463 1 LifeSafety Power: Eight door power supply w/ power distribution and management, includes enclosure



Mercury EP1501 Four Reader/ Twelve Input/ Ten Output System w/ Managed Lock Power and Power Management for Four Doors

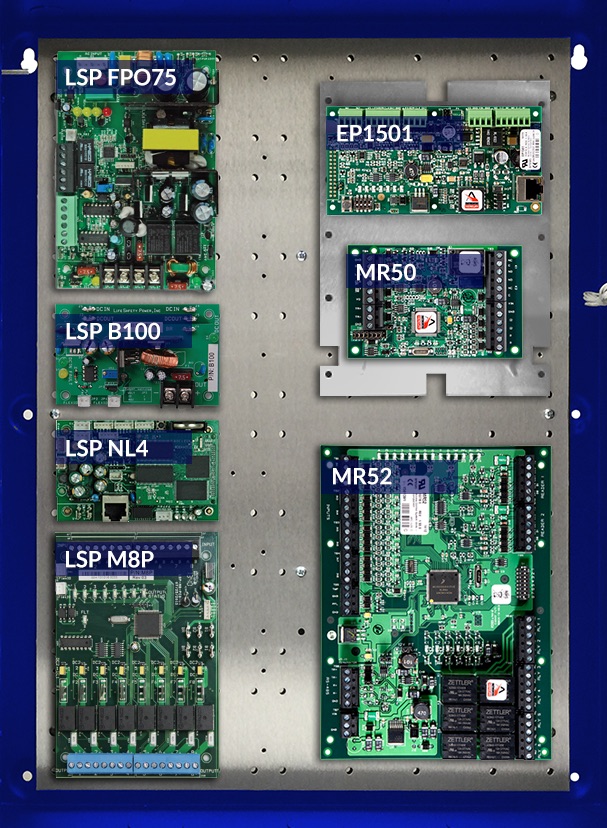

The BluCHIP 1501-4R/12I/10O-E2MLPM is a unified Four Reader/ Twelve Input/Ten Output System w/ Managed Lock Power and Power Management for Four Doors. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes a Mercury EP1501, Mercury MR50, and a Mercury MR52 board, a locking four door enclosure with tamper, power supply and wiring speed kit. Local managed lock power, power monitor and control is included. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1501 120-1000 1 Mercury EP1501: One door DB controller Ethernet PoE/12V
MR50 120-2300 1 Mercury MR50: One door controller 12/24VDC
MR52 120-2500 1 Mercury MR52: Two door controller & auxiliary I/O 12/24VDC
E2ML-SK-3T 577-3035 1 BluBØX E2ML-SK-3T Speed Kit: Three board precut DC power, RS485 and lock trigger wiring kit
EP1501-MR50 640-1400 1 BluBØX EP1501-MR50 Bracket
FPO75-B100M8PNL4E2M 670-1461 1 LifeSafety Power: Four door power supply w/ power distribution and management, includes enclosure



Mercury EP1501 Eight Reader/ Twenty-eight Input/ Twenty-two Output System for Eight Doors

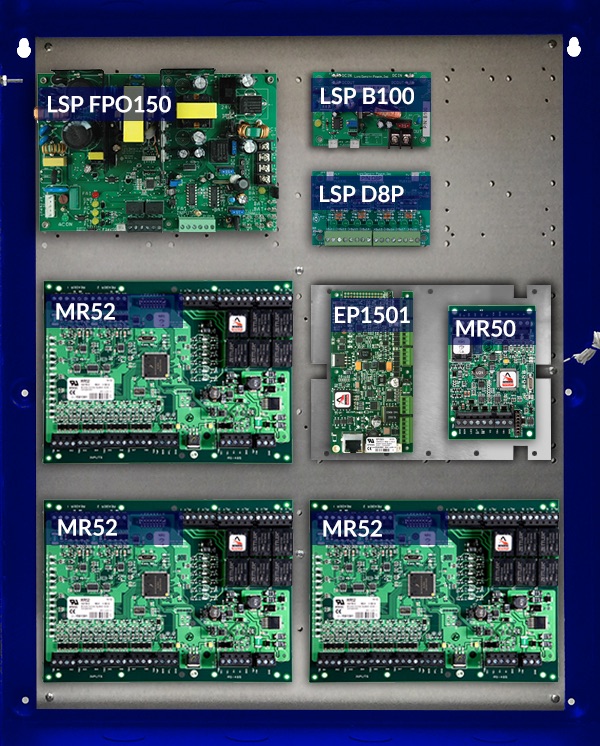

The BluCHIP 1501-8R/28I/22O-E4M1 is a unified Eight Reader/ Twenty-eight Input/Twenty-two Output System for Eight Doors. The kit is configured with space to add backup battery and utilizes an FPO power supply to generate 24VDC and a B100 to generate 12VDC. It includes a Mercury EP1501, Mercury MR50, and three Mercury MR52 boards, a locking eight door enclosure with tamper, power supply and wiring speed kit. Remote management and reporting of power supply and battery health are available through BluSKY Power Diagnostics.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1501 120-1000 1 Mercury EP1501: One door DB controller Ethernet PoE/12V
MR50 120-2300 1 Mercury MR50: One door controller 12/24VDC
MR52 120-2500 1 Mercury MR52: Two door controller & auxiliary I/O 12/24VDC
E4M-SK-5 577-3015 1 BluBØX E4M-SK-5 Speed Kit: Five board precut DC power and RS485 wiring kit
EP1501-MR50 640-1400 1 BluBØX EP1501-MR50 Bracket
FPO150-B100D8PE4M1 670-1385 1 LifeSafety Power: Eight door power supply w/ power distribution, includes enclosure
