Overview

1501 Edge Kits
The EP1501 Edge Kits provides the best solution for smaller or distributed systems. The ability to communicate over ethernet and to be powered by Power Over Ethernet(PoE) allows the installer to quickly deploy a system using the existing networking infrastructure.  With all of the convenience of an Edge System you still are able to support 17 Readers, 130 Inputs and 130 Outputs, depending on the SIO Boards you select.

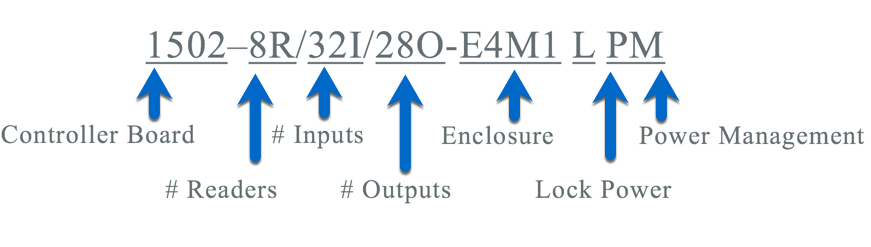

Our kit listing also provides some insight into what is contained. See below for a quick break down of how we number and identify our kits.

Check out all of the Edge Kits we offer!

Edge PoE Kits

The kits are designed for smaller installations but can also be used as part of a larger system. In certain cases, wiring can add up to a major expense and major pain. The Edge PoE system help alleviate most of these headaches by being able to utilize the existing infrastructure or making the cable bundle a single Cat5/6. While these kits provide all of the functionality of BluSKY and mercury there are certain limits when it comes to expandability.

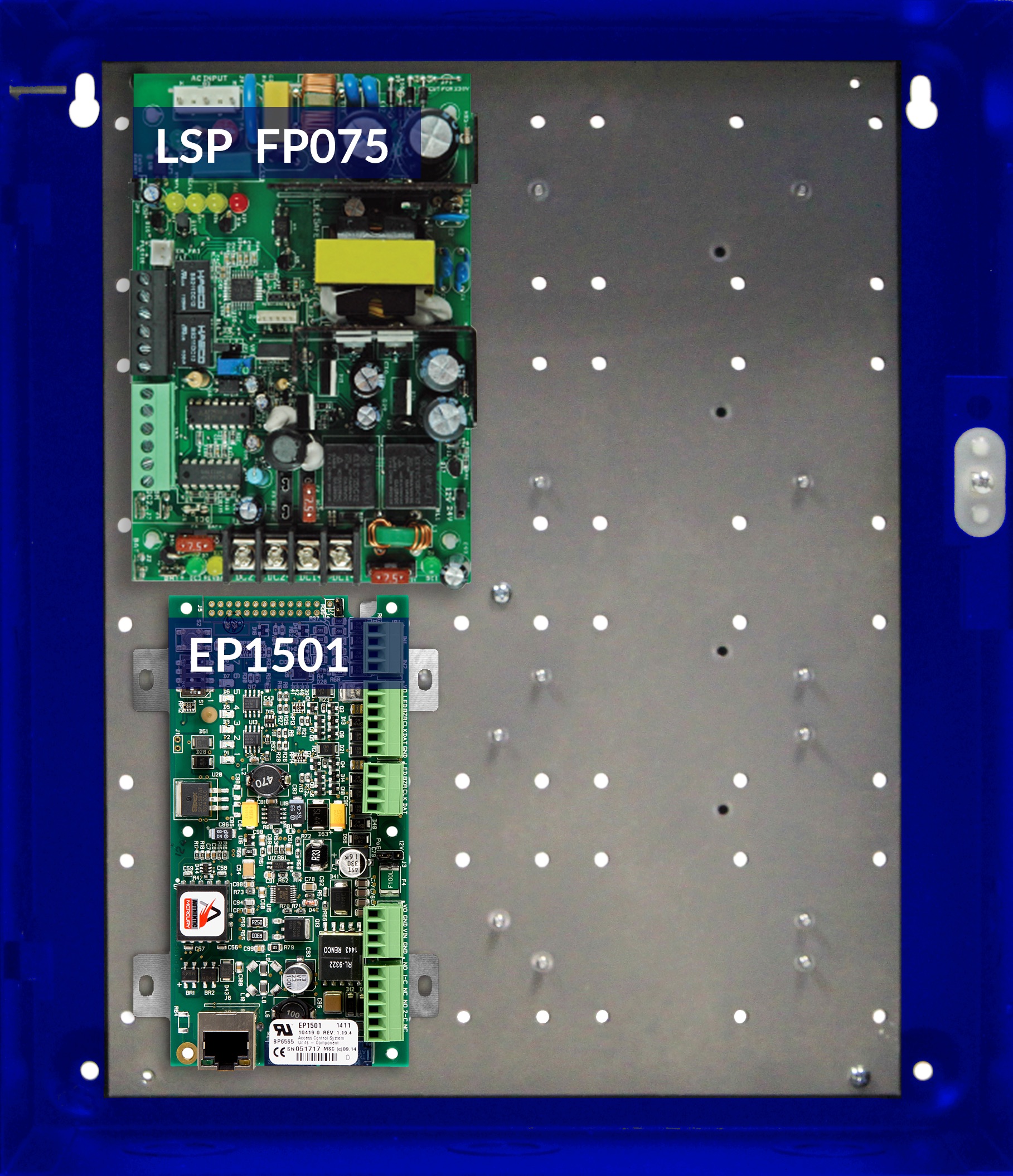

Mercury EP1501 Edge Solution One Reader/ Two Input/ Two Output System for Two Doors

The BluCHIP 1501E-1R/2I/2O-E1M is a unified Edge Solution One Reader/Two Input/Two Output System for two doors and expansion space to support one additional reader. It includes a Mercury EP1501 board with locking enclosure with tamper and power supply. It is expandable to two readers with one Mercury MR51e board.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1501 120-1000 1 Mercury EP1501: One door DB controller Ethernet PoE/12V
FPO75-E1M 670-1310 1 LifeSafety Power: Single voltage power supply, includes enclosure

Expansion Options

MFG Part # BluBØX Order # QTY Description
MR51e 120-2400 1 Mercury MR51e: One Door Controller Ethernet PoE/12V

Ordering Information

BluBØX Order # Description
751-1200 Mercury EP1501 Edge Solution One Reader/Two Input/Two Output System for Two Doors

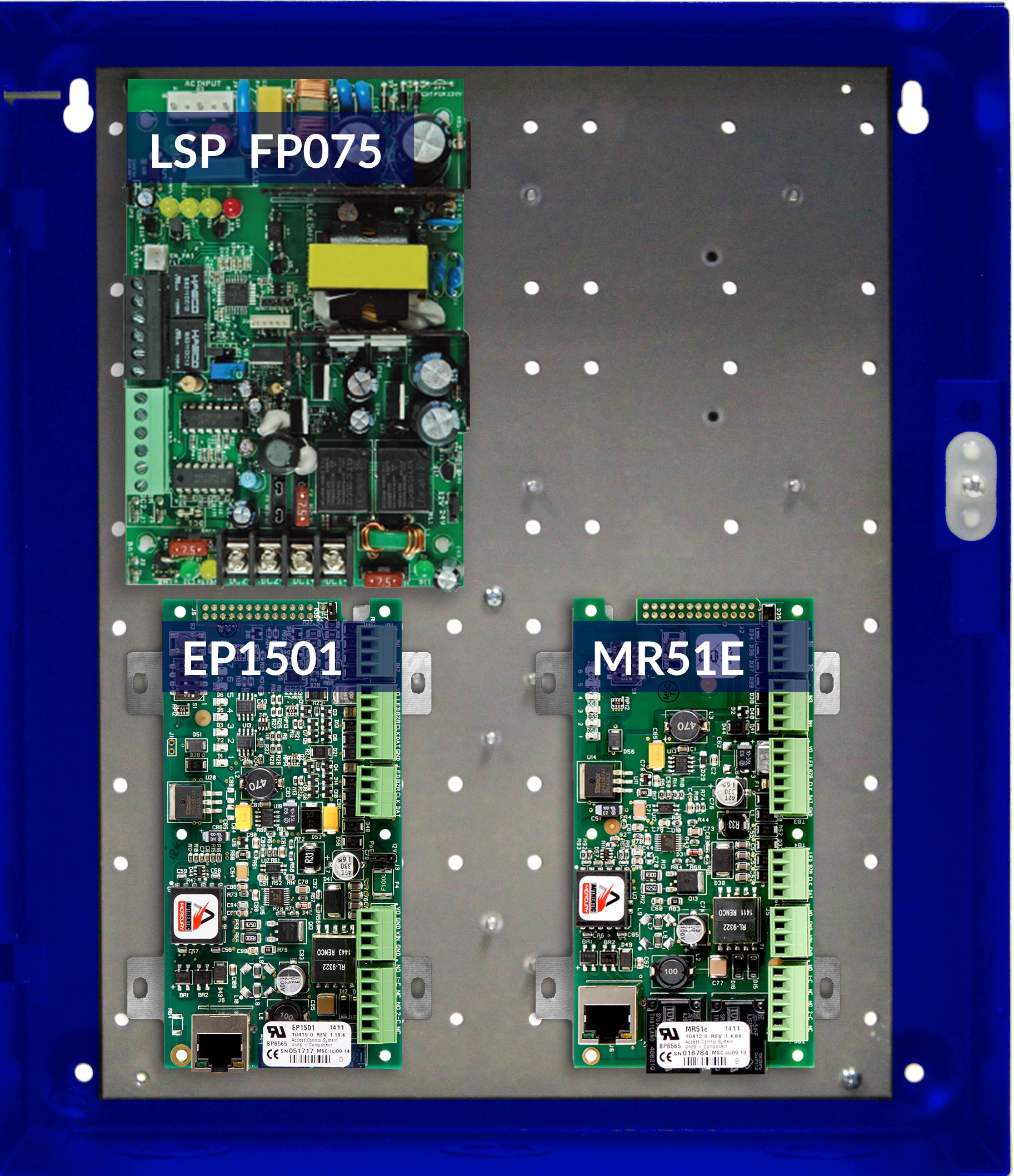

Mercury EP1501 Edge Solution Two Reader/ Six Input/ Four Output System for Two Doors

The BluCHIP 1501E-2R/6I/2O-E1M is a unified Edge Solution Two Reader/Six Input/Four Output System for Two Doors. It includes a Mercury EP1501 and a MR51e board locking enclosure with tamper and power supply.


Kit Includes

MFG Part # BluBØX Order # QTY Description
EP1501 120-1000 1 Mercury EP1501: One door DB controller Ethernet PoE/12V
MR51e 120-2400 1 Mercury MR51e: One Door Controller Ethernet PoE/12V
FPO75-E1M 670-1310 1 LifeSafety Power: Two door power supply, includes enclosure

Ordering Information

BluBØX Order # Description
751-2200 Mercury EP1501 Edge Solution Two Reader/Six Input/Four Output System for Two Doors

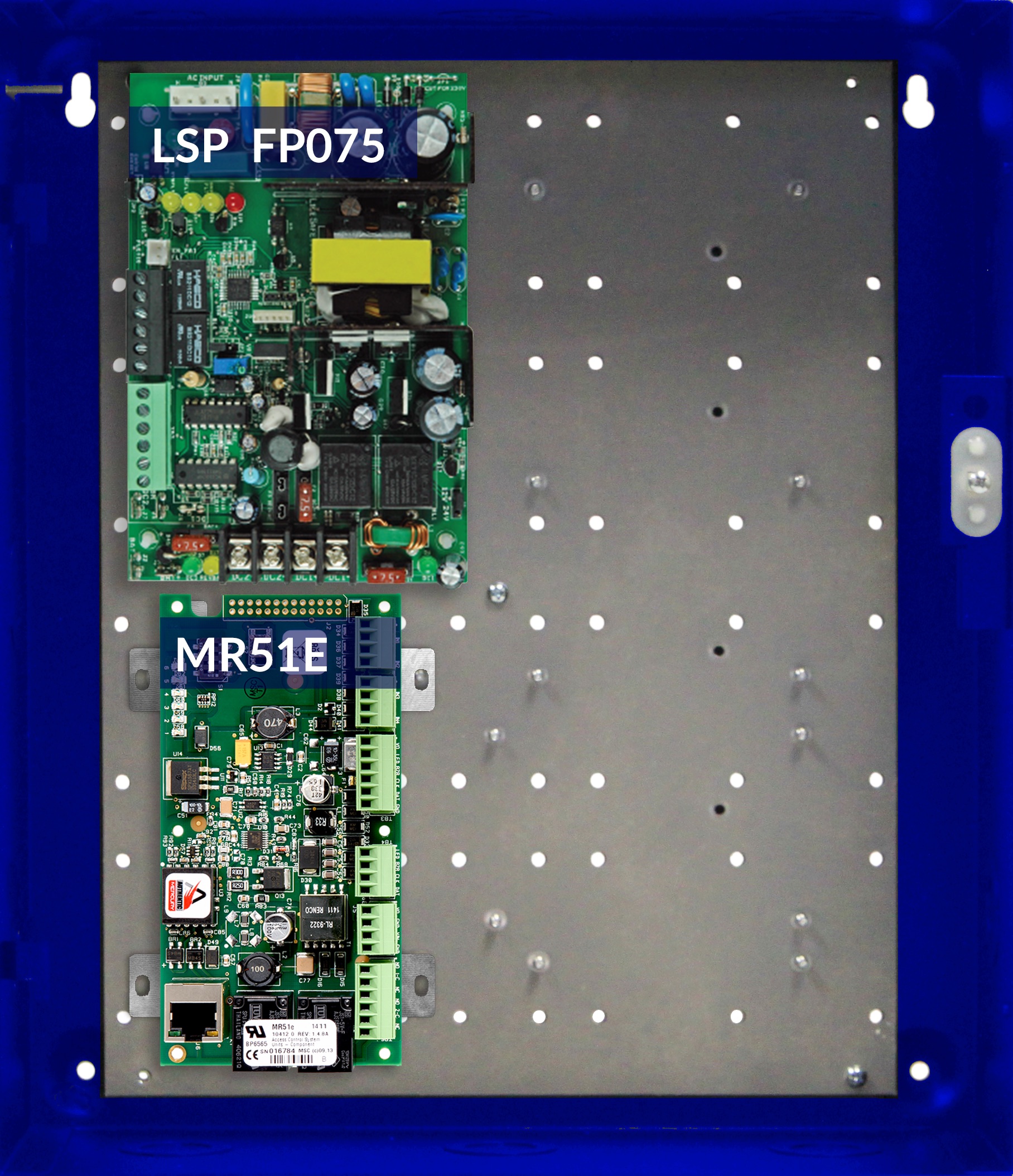

Mercury MR51e Edge Solution One Reader/ Four Input/ Two Output System Add-On for Two Doors

The BluCHIP 51E-1R/4I/2O-E1M-EXP is a unified Edge Solution One Reader/Four Input/Two Output System Add-On for Two Doors and expansion space to support one additional reader. It includes a Mercury MR51e board with locking two door enclosure with tamper and power supply. It is expandable to two readers with a Mercury MR50 board and a Mercury EP1501/MR50 bracket .


Kit Includes

MFG Part # BluBØX Order # QTY Description
MR51e 120-2400 1 Mercury MR51e: One Door Controller Ethernet PoE/12V
FPO75-E1M 670-1310 1 LifeSafety Power two door power supply, includes enclosure

Ordering Information

BluBØX Order # Description
751-3200 Mercury MR51e Edge Solution One Reader/Four Input/Two Output System Add-On for Two Doors
