How to Recycle the Power For An M8 Output

Overview

One screen snapshot on how to recycle the power remotely for a device connected to an M8 using Power Management in BluSKY.

Instructions

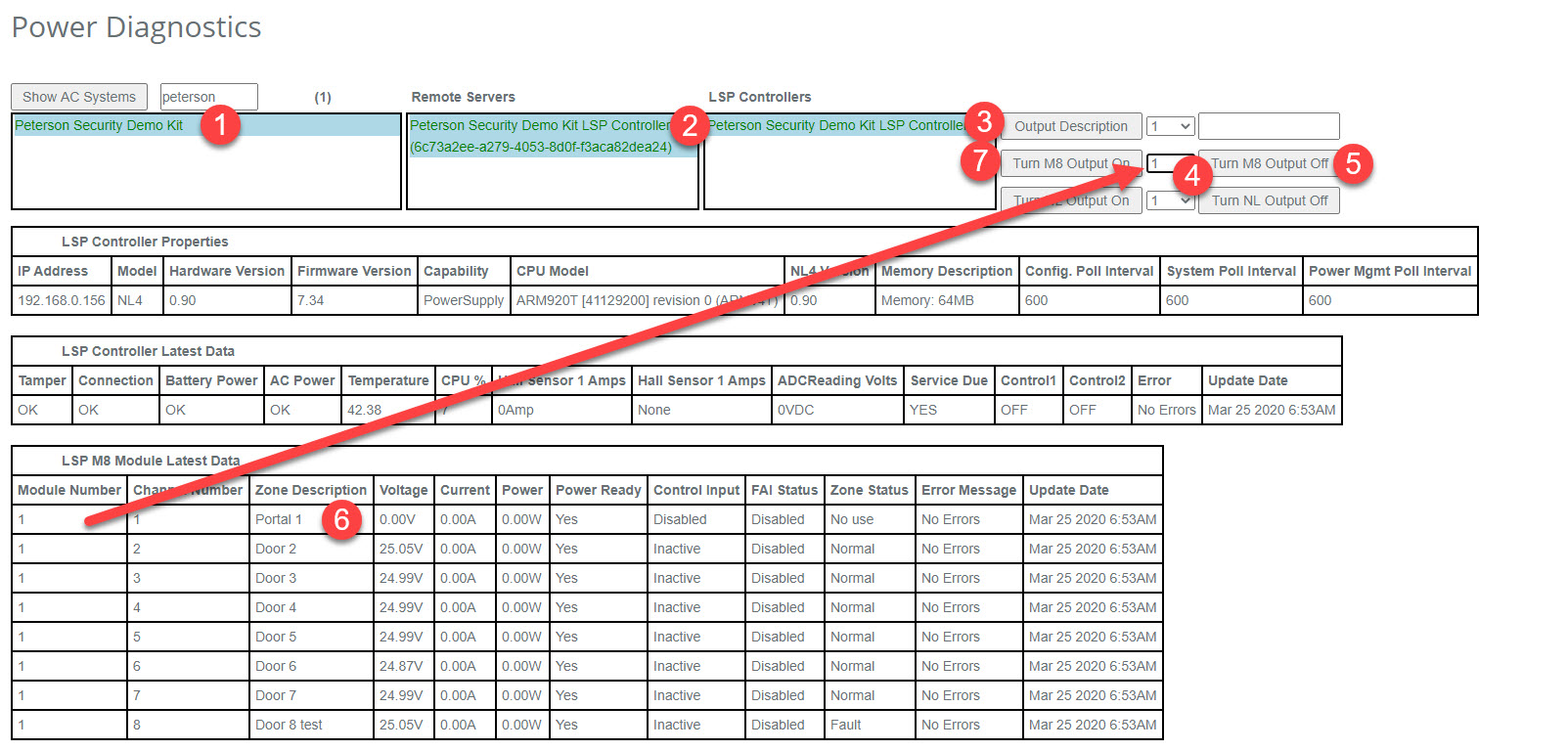

Recycle Power On M8.jpg

  1. Select the System
  2. Select the Remote Server
  3. Select the LSP Controller
  4. Select the LSP 8 Module number
  5. Remove the power by selecting the "Turn M8 Output Off"
  6. You will see the Voltage, Current, and Power go to 0.00, and the Control Input become disabled
  7. Wait a second and then apply power by selecting "Turn M8 Output On"
