Person Reader Cable Connections

Overview

Person Reader Cable Connections

Per Connections

Pull cables from the Person Reader sensor head end to the NUC location.

This end will include the Mini HDM and 3 x micro- USB cable.

Instructions

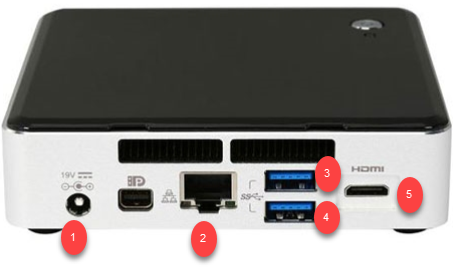

NUC - Right Side

1. Power Cable - Cut and extend the Power Supply cable included with the shipment.
2. Connect Ethernet cable (not included) to the  Ethernet port
3. Card Reader Cable - Connect the USB 2.0 cable with the Red ring to the USB 2.0 upper of the two USB ports.
4. Touch Screen Cable - Connect the USB 2.0 cable with the Blue ring to the USB 2.0 lower of the two USB ports.
5. Mini HDMI - to Mini HDMI port

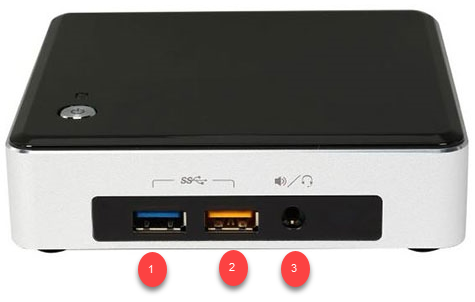

NUC - Left Side

1. Camera Cable - Connect the Blue USB 3.0 cable to the USB 3.0 Port )(Heavy Blue Cable)
2. LED Cable - Connect the USB 2.0 cable with the white ring to the USB 2.0 port next to the USB 3.0 Port (White Band)
3. Audio - Plug the Stereo plug  into the jack on the same side as the other two cable

Person Reader Housing - Back View

1. Camera Cable - Permanently connected
2. Audio - Plug the Stereo plug  into the jack
3. HDMI - Plug the HDMI end of the cable into the HDMI Port
4. LED Cable - Connect the USB 2.0 Micro-USB with the White ring to the USB 2.0 micro-jack the right of the Blue camera cable
5. Reader Cable - Connect the USB 2.0 Micro-USB with the Red ring to the USB 2.0 micro-jack the closet to the HDMI Port
6. Touch Screen Cable - Connect the USB 2.0 Micro-USB with the Blue ring to the USB 2.0 micro-jack below the audio jack
